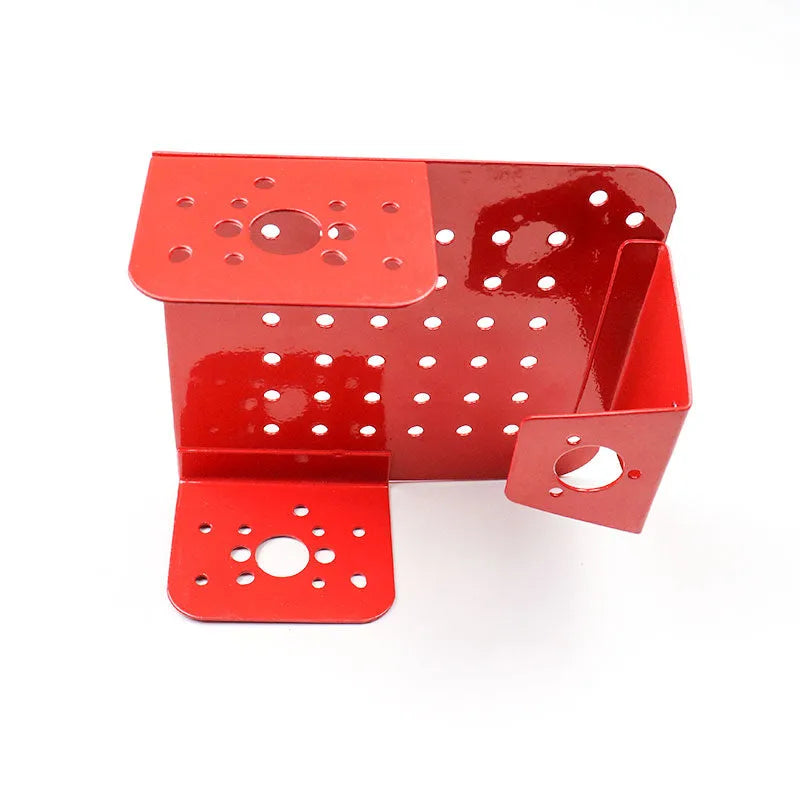

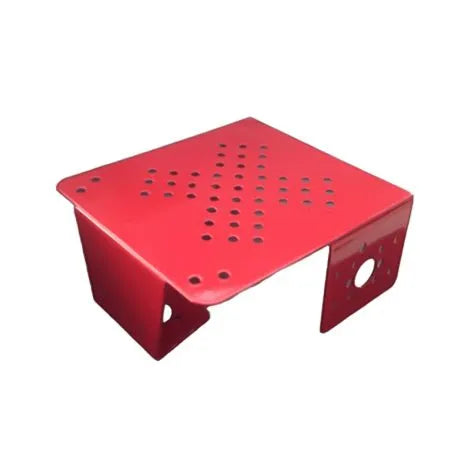

Advance Metal Robot Chassis for DIY Car Robotics

Advance Metal Chassis 1 is a durable and versatile choice for building various robotic platforms. Designed for robotics enthusiasts, this bot chassis is ideal for assembling small to medium-sized robotic vehicles and projects, providing a reliable foundation for various electronic components. Manufactured with precision using premium metal sheets, this tank tread robot chassis serves as the backbone of your robotic innovations.

Key Features - Advance Metal Chassis 1

• Durable metal construction ensures longevity and reliability.
• Numerous perforated holes for easy component attachment.
• Compatible with Center Shaft and Side Shaft gear motors.
• Supports skid steel (4 motors) and differential (2 rear + 1 front caster wheel) configurations.
• Available in attractive red and grey finishes.
• Pre-drilled holes for easy assembly and component attachment.
• Ample space and mounting options for sensors, controllers, and other hardware.

Applications

The Advance Metal Chassis 1 is suitable for constructing mobile robots like robot car chassis, chassis robot car, and 4 wheel robot chassis. Its robust design supports easy sensor integration, making it ideal for hobbyist and professional applications in educational robotic platforms and competitions.

Technical Specifications

How to Use - Advance Metal Chassis 1

• Start by securely mounting your motors using the appropriate motor mount nuts.
• Attach your development boards and sensors using the provided perforated holes.
• Configure your robot in a skid steel or differential configuration depending on your project needs.
• Unpack the chassis and ensure all components and hardware are included.
• Select and mount the motors to the pre-drilled spaces on the chassis.
• Attach wheels to the motors, ensuring secure fitment.
• Mount the desired control board or microcontroller to the chassis.
• Install sensors, batteries, and other electronics using the provided mounting points.
• Connect all wiring according to your project design and ensure secure connections.
• Test the setup by powering up the system and adjusting as necessary.
• Ensure tight connections to facilitate smooth operation.

Package Includes

• 1 x Advance Metal Chassis 1

Additional Resources

Video Tutorials

Comming Soon!
