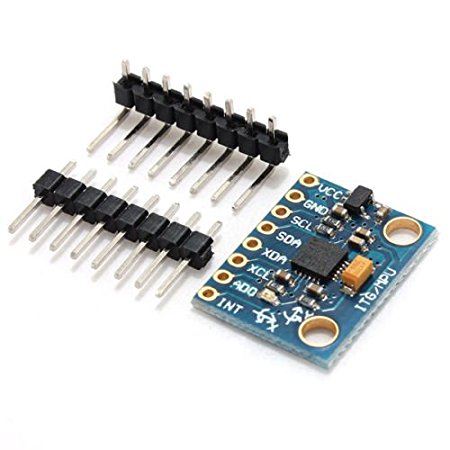

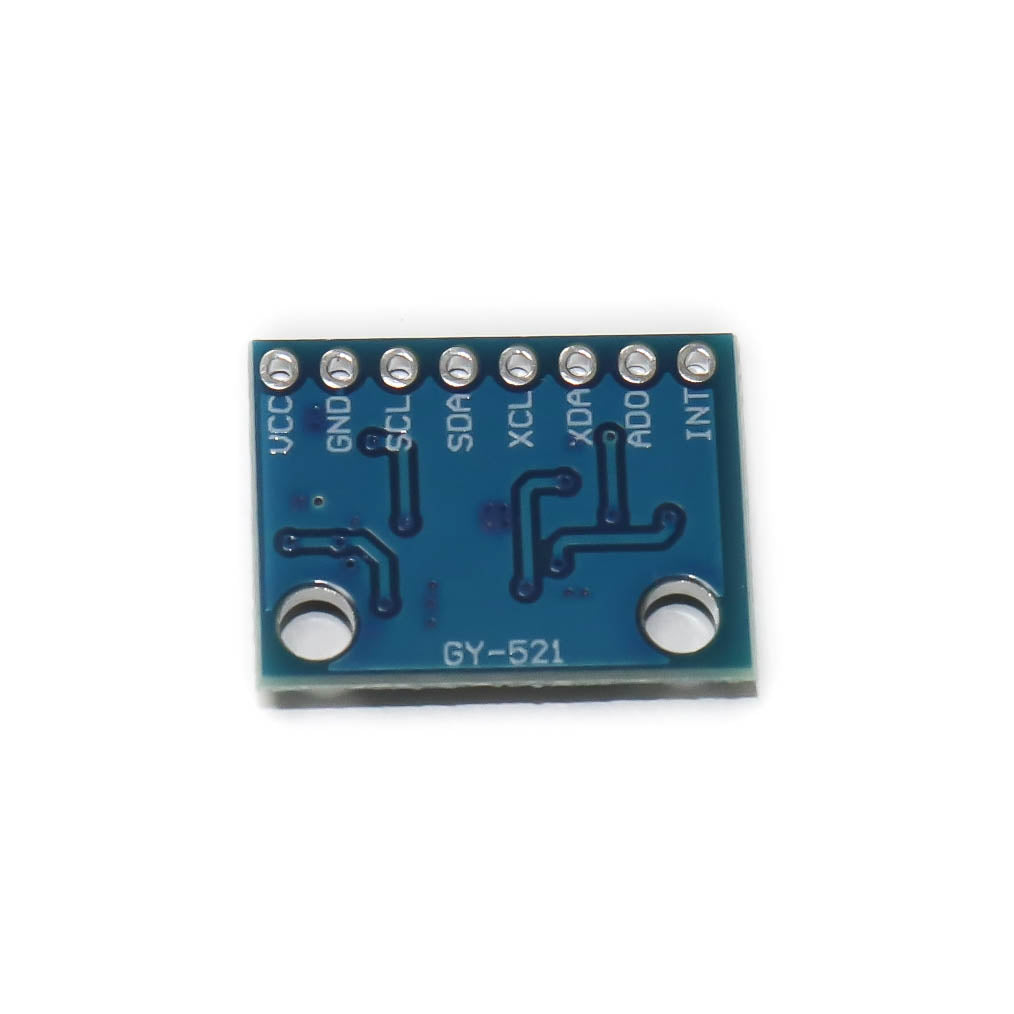

MPU6050 3-Axis Accelerometer and Gyro Sensor Module GY-521

MPU-6050 3-Axis Accelerometer and Gyro Sensor Introducing the MPU-6050 3-Axis Accelerometer and Gyro Sensor, an advanced motion processing module integrating a 3-axis gyroscope and 3-axis accelerometer with an onboard Digital Motion Processor (DMP) capable of processing complex motion algorithms. Perfect for DIY enthusiasts and professionals seeking precise motion detection and integration capabilities, this sensor combines both functionalities into a compact package and communicates via I2C protocol, making it easy to interface with various microcontrollers. Ideal for applications involving the mpu6050 sensor, mpu6050 arduino, and arduino and mpu6050 projects.

Key Features - MPU-6050 3-Axis Accelerometer and Gyro Sensor

• Combines a 3-axis gyroscope and a 3-axis accelerometer in one chip.
• Built-in 16-bit AD Converter for each channel
• 16-bit Data Output
• Driver Chip: MPU6050
• Low power consumption, ideal for battery-operated applications
• Operating Voltage: 3-5V DC
• Communication: I2C/IIC Protocol for easy interfacing
• Gyro Range: ± 250, 500, 1000, 2000 °/s
• Accelerometer Range: ± 2, ± 4, ± 8, ± 16 g
• User programmable full-scale range and digital output rate
• Capable of processing complex motion algorithms with an embedded Digital Motion Processor (DMP)

Applications

The MPU-6050 module is essential for gyro mpu6050 and gyroscope mpu 6050 applications. Its precise motion sensing capabilities make it perfect for robotic motion detection and motion sensing in handheld devices. Additionally, the mpu6050 accelerometer plays a vital role in innovative projects that require motion tracking and stabilization.

Technical Specifications

How to Use - MPU-6050 3-Axis Accelerometer and Gyro Sensor

• Power the sensor using a 3-5V source. Connect the module's VCC to the Arduino's 5V pin.
• Connect the GND pin to the Arduino's GND.
• Connect the I2C communication lines: SDA and SCL pins to Arduino's A4 and A5 respectively.
• Add necessary libraries in the Arduino IDE.
• Configure the sensor and read data using appropriate libraries and tools.
• Calibrate the sensor to account for any offsets in different axes. Implement filtering techniques if necessary, to reduce sensor noise and improve accuracy.
• Run the sample code to start capturing motion data.

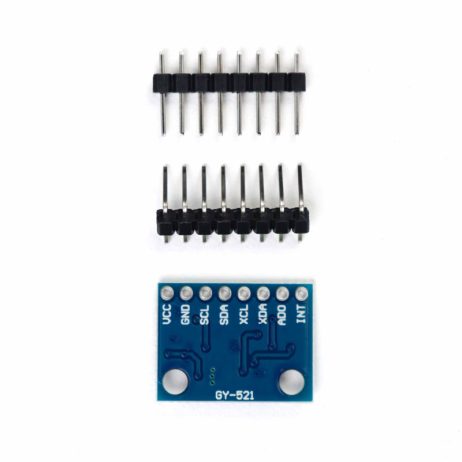

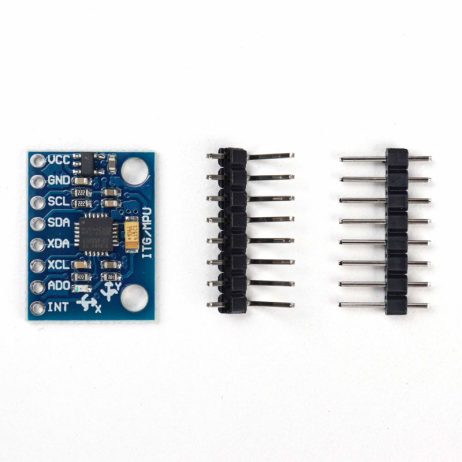

Package Includes

• 1 x MPU-6050 Gyro Sensor + Accelerometer
• 1 x 1*8 Burg connector Pins (Right angle)
• 1 x 1*8 Burg connector Pins (Straight)
