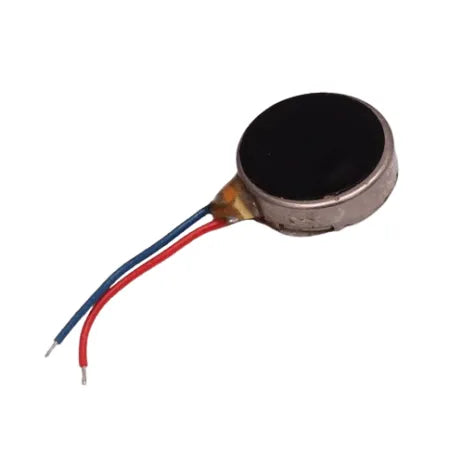

Flat 1034 Mobile Phone Vibration Motor
The Flat 1034 Mobile Phone Vibrator Motor is designed to offer haptic feedback with minimal noise and space requirements. This vibration motor is ideal for mobile phone applications and other electronics requiring vibration alerts or feedback.

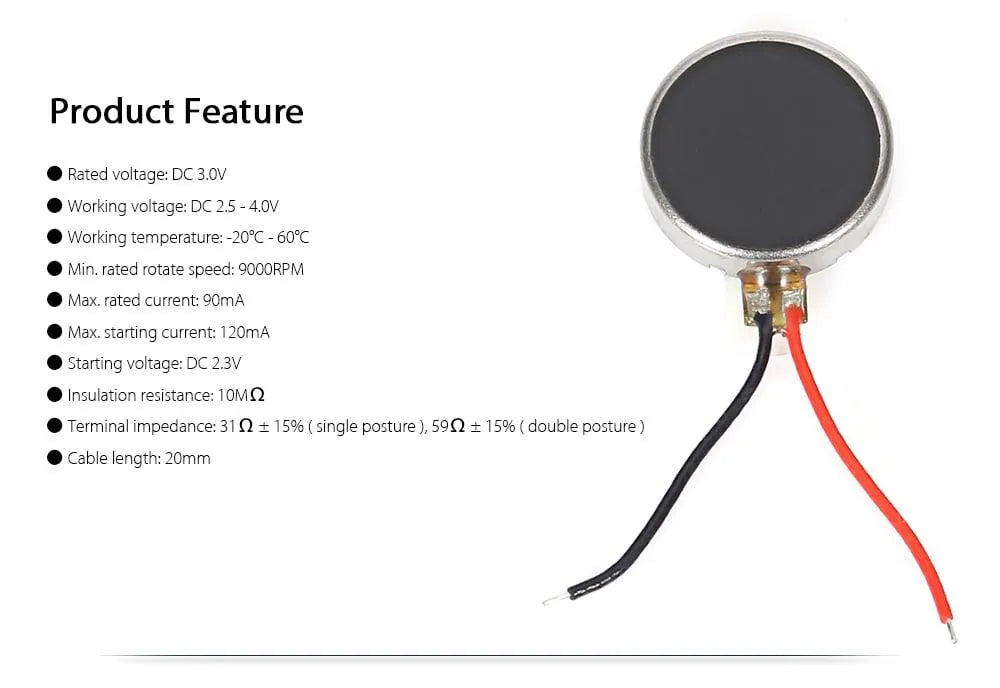

Features
| Voltage Range: DC 2.5-4V |
| Motor Diameter: 10 mm |
| Motor Thickness: 3.4 mm |
| Speed: 9000 RPM |
| Adhesive Backing: 3M adhesive |
| Polarity Independent: CW or CCW |
Applications
This motor can be mounted onto PCBs or placed in small enclosures, making it suitable for compact devices. Perfect for use in mobile phones, wearable technology, and other electronic devices requiring subtle vibration alerts.
Additional Links
Package Included
Package Includes: 1 x Flat 1034 Mobile Phone Vibrator Motor.
Specification
| Item Type | Vibration Type (General) |
| Voltage Rating (V) | 2.5 to 4VDC |
| Current Rating (mA) | 90 to 120 |
| Rated Speed (RPM) | 9000 |
| Rated Voltage (V) | 3 |
| Operating Voltage (VDC) | 2.5 ~ 4 |
| Operating Temperature (°C) | -20 to 60 |
| Max. Rated Current (mA) | 90 |
| Max. Starting Current (mA) | 120 |
| Cable Length (cm) | 20 |
| Shipping Weight (kg) | 0.025 |
| Shipping Dimensions (cm) | 8 × 5 × 2 |
