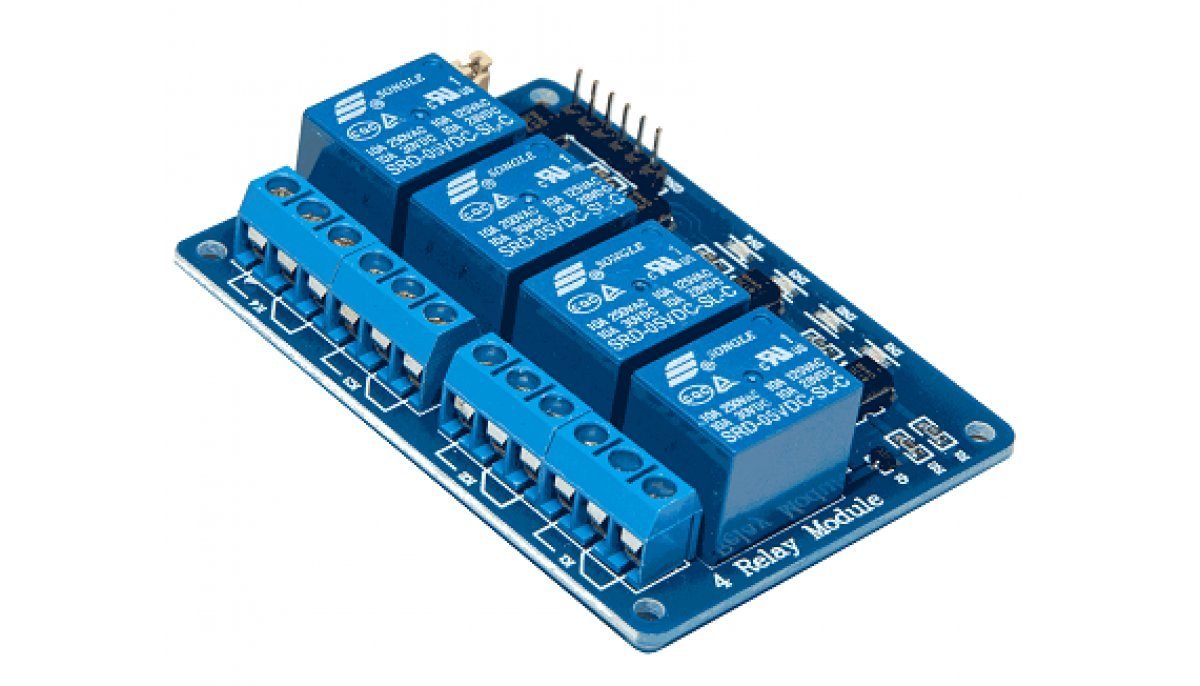

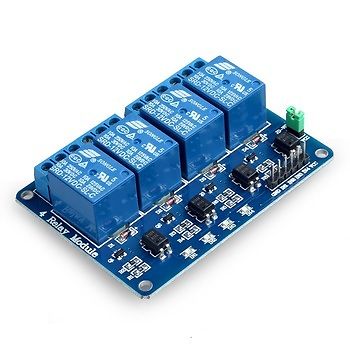

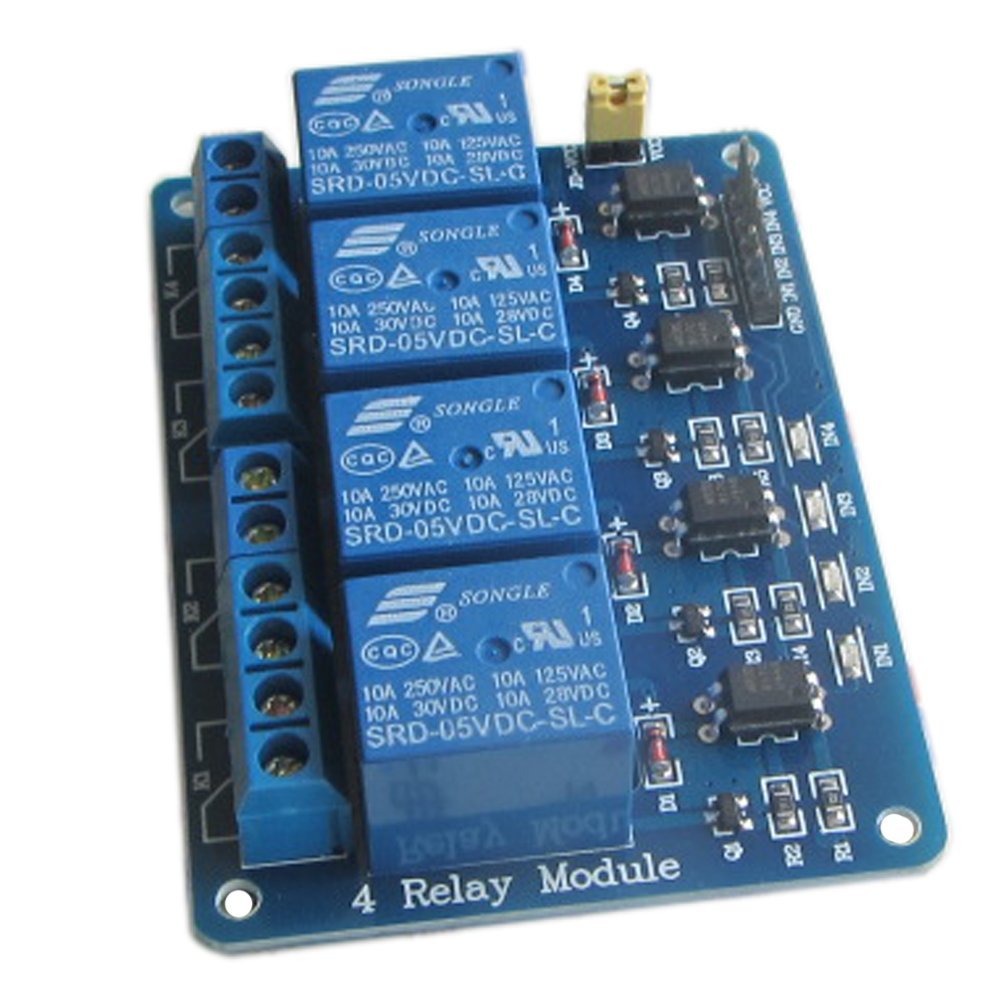

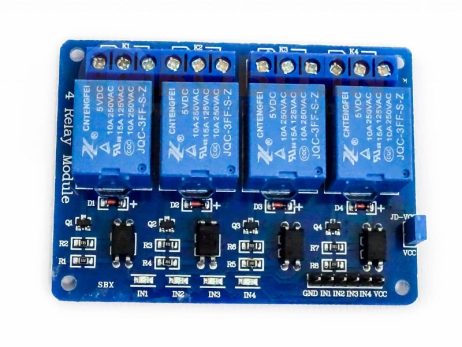

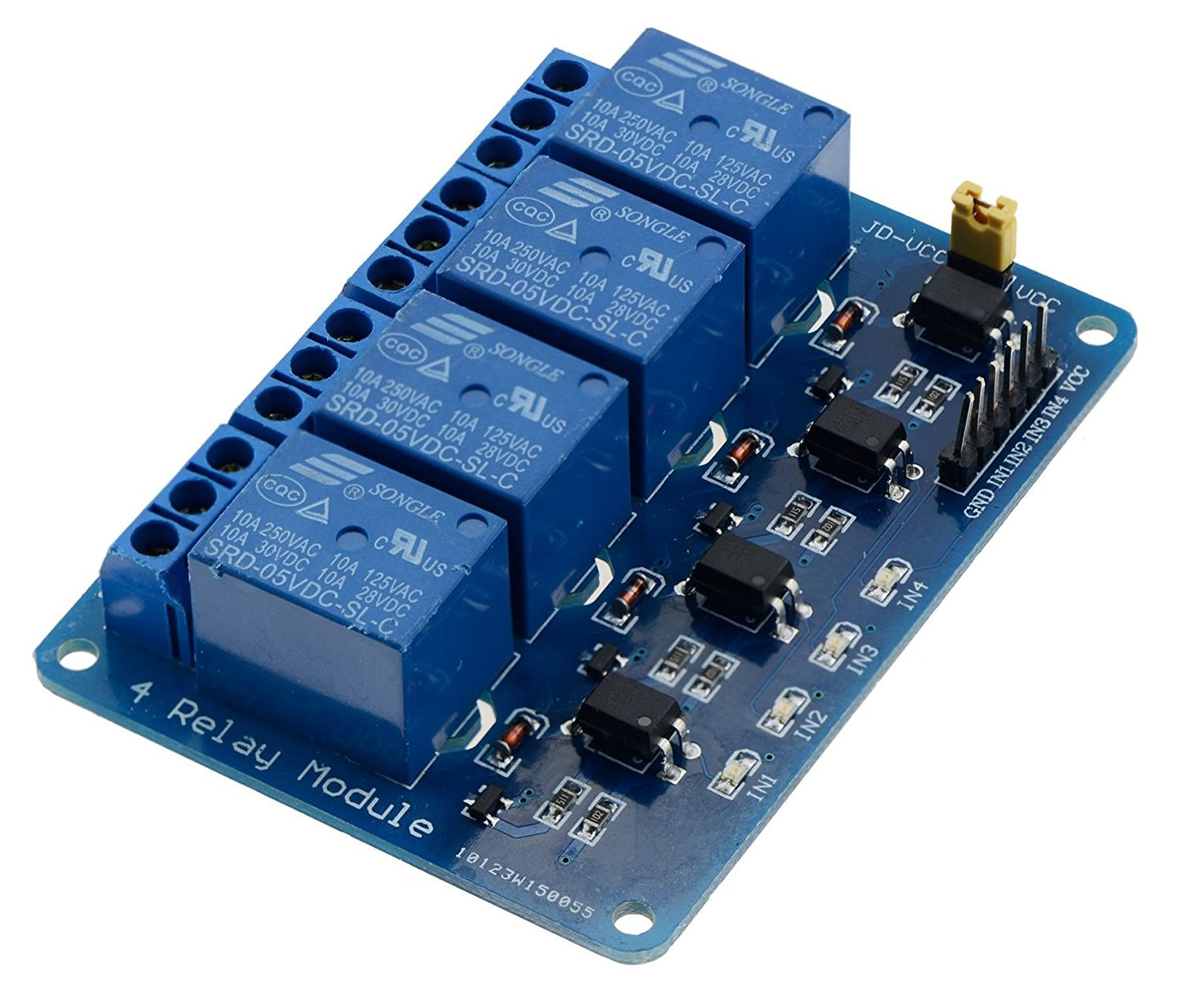

4 Channel Relay Module This 4 Channel Isolated 5V 10A Relay Module Opto-Coupler is an essential component for anyone interested in controlling various electrical appliances and equipment. Designed for easy integration with Arduino, AVR, and PIC, this relay module offers an efficient way to manage AC and DC loads. It provides opto-coupler isolation between control and load circuits, enhancing safety and protection. Explore competitive relay module prices, secure compatibility with Arduino relay modules, and experience the efficiency of a 4 channel relay module.
Key Features - 4 Channel Relay Module
- No. of Channels: 4
- Trigger Voltage: 5VDC
- Highly reliable triode drive
- Power supply and control indicator lamps
- Opto-isolated digital inputs for each channel
- Standard interface for easy connection
- LEDs indicate the status of each relay, providing visual feedback
- Screw terminals for secure and safe connections
- Uses standard VCC and GND pins along with individual IN pins for controlling each relay
Applications
A 5V relay module is perfect for smart home systems, seamlessly integrating with devices like Google Home. This relay arduino module is ideal for controlling appliances such as lights and fans, offering a robust solution for an array of electronic projects and home automation systems.
Technical Specifications
Product Specification | Value |
Model Type | Relay Module |
No. of Channels | 4 |
Operating Voltage (VDC) | 5 |
Trigger Current (mA) | 20 |
Switching Voltage (VAC) | 250@10A |
Switching Voltage (VDC) | 30@10A |
Opto-coupler Isolation | Provided for each channel |
Interface | TTL Level |
Dimensions | ~75mm x 54mm x 19mm |
Weight | ~60 grams |
How to Use - 4 Channel Relay Module
- Connect your microcontroller to the input signal terminals.
- Ensure the module is powered and properly connected for control signals.
- Control up to four separate devices with independent relay capability.
- Connect the VCC and GND pins to the microcontroller's power supply.
- Use IN1 to IN4 pins for controlling each relay through the microcontroller.
Package Includes
- 1 x 4 Channel Isolated 5V 10A Relay Module Opto-Coupler
Additional Resources
Download DatasheetLearn more about Relay
Explore our electronic-modules-and-displays Collection
Video Tutorials
Specification
Product Specification | Value |
Model Type | Relay Module |
No. of Channels | 4 |
Operating Voltage (VDC) | 5 |
Trigger Current (mA) | 20 |
Switching Voltage (VAC) | 250@10A |
Switching Voltage (VDC) | 30@10A |
Length (mm) | 75 |
Width (mm) | 55 |
Height (mm) | 18 |
Weight (g) | 55 |
Shipping Weight | 59 |
Shipping Dimensions | 90x70x30 |
