4 Channel Wireless Four Button RF Remote Control Transceiver Module The RF remote control provides efficient, wireless management for electronics projects and remote industrial applications. Featuring a non-locking mode and a fixed code RF receiver circuit, it's ideal for four separate outputs. Electronics enthusiasts and professionals can rely on this RF remote control for seamless integration into microcontroller circuits and student electronic designs, empowering them to execute wireless commands effortlessly.
Key Features - 4 Channel Wireless Four Button RF Remote Control Transceiver Module
- Four Channel Operations
- RF wireless technology for remote control without direct line of sight
- Non-Locking Mode (Momentary) for Flexibility
- Receiver Operating Voltage: DC 5V
- Transmitter Operating Voltage: DC 12V
- High Receiver Sensitivity of -98dB
- Stable 315MHz Transmission Frequency
- Operates at 433 MHz, common for RF applications
- Secure with Unique Transmitter ID
- Compact Size: Perfect for Integration
- Effective Control up to 5 Meters, with an expanded range of approximately 50 to 100 meters in open space
Applications
This RF remote control switch is perfect for electronic doors and locks, providing secure signal recognition crucial for home automation, industrial switch operations, and remote control of various appliances. Its versatility makes it indispensable for videocon d2h remote setups, ensuring smooth operation of SPST RF switches across different environments.
Technical Specifications
Product Specification | Value |
Rated Voltage (VDC) | 12 |
Max. Operating Current (mA) | 10mA at 12V |
Radiated Power | 10mW at 12V |
Transmission Distance (m) | 3 to 5 |
Control Range (open space) | Approximately 50 to 100 meters |
Transmitting Frequency | 315MHz |
Operating Frequency | 433 MHz |
Remote Dimensions | 64 x 39 x 15 mm |
How to Use - 4 Channel Wireless Four Button RF Remote Control Transceiver Module
- Connect the receiver to a 5V power supply using the designated pins: VT, D3, D2, D1, D0, +5V, and GND.
- Attach the antenna terminal for optimal signal reception.
- Use the four buttons associated with D0-D3 output pins to transmit signals.
- Ensure a compatible DC power source (usually 12V) powers the receiver module.
- Connect the receiver module's output terminals to the devices for control.
Package Includes

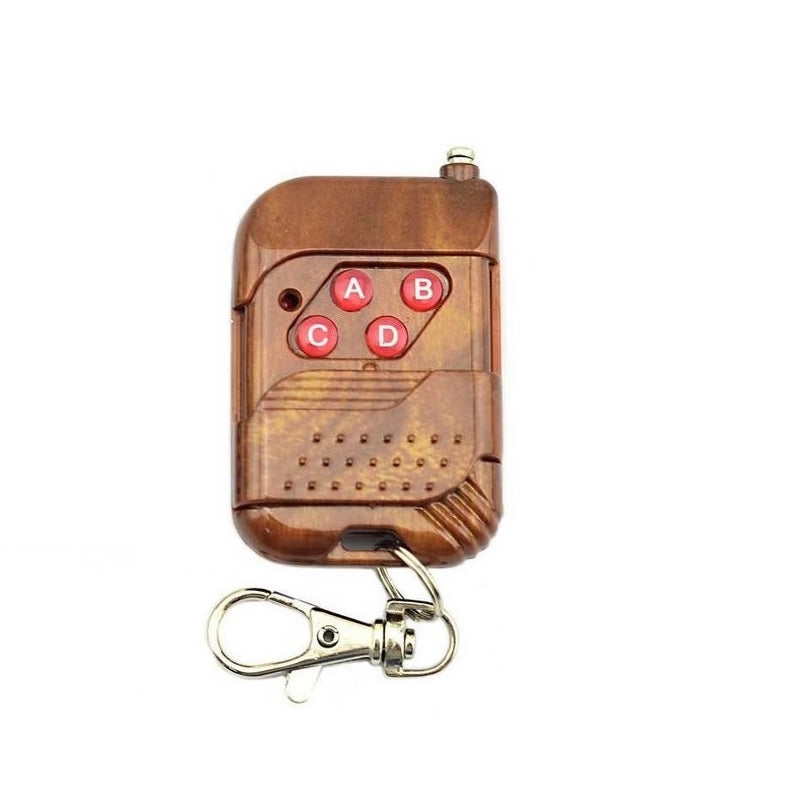

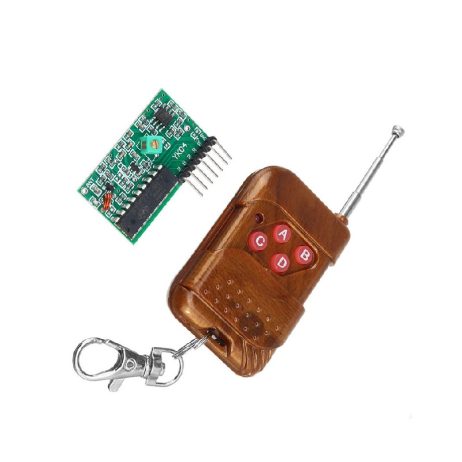

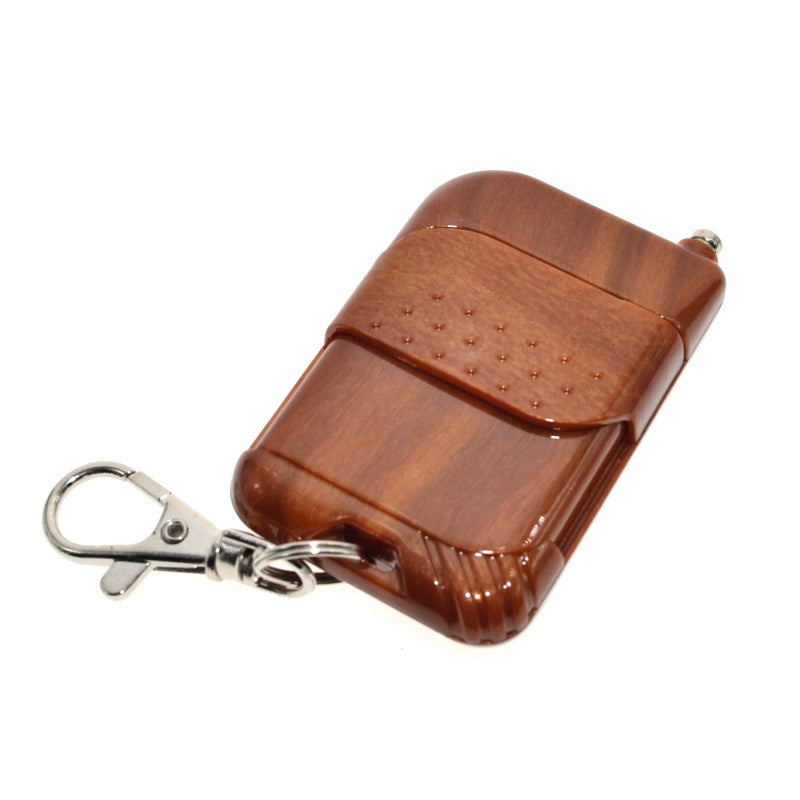

1 x Wireless Four-button RF remote control
1 x Super Regenerative receiver module
Additional Resources
Learn more about RF Remote ControlExplore our RF Remote Control Collection
Video Tutorials
Specification
Product Specification | Value |
---|---|
Rated Voltage (VDC) | 12 |
Max. Operating Current (mA) | 10mA at 12V |
Radiated Power | 10mW at 12V |
Transmission Distance (m) | 3 to 5 |
Transmitting Frequency | 315MHz |
Remote Dimensions | 64 x 39 x 15 mm |
Weight | 30 g |
