Description

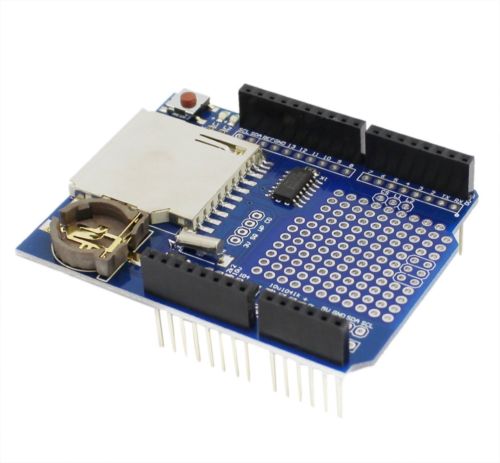

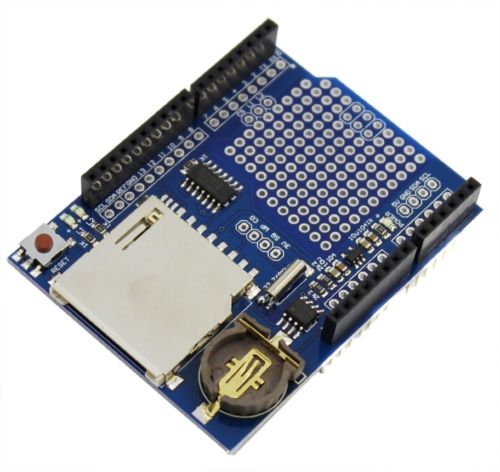

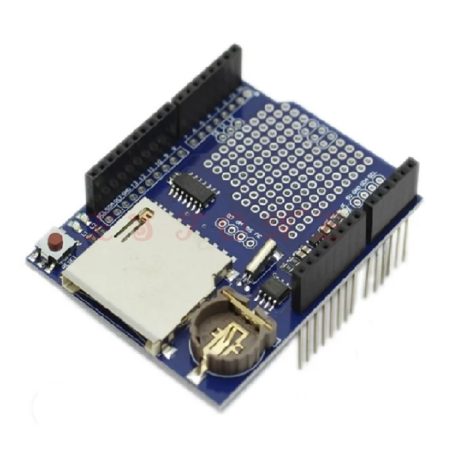

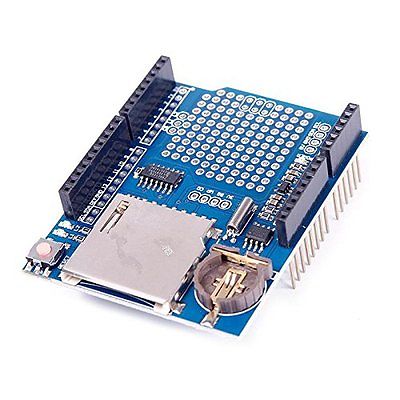

Arduino Data Logger Shield Here's a handy Arduino shield we've had a lot of people looking for a dedicated and well-designed data logging shield. We worked hard to engineer an inexpensive but well-rounded design. Not only is it easy to assemble and customize, but it also facilitates data logging projects with precision. The Data Logger module Logging Shield data Recorder Shield also comes with great documentation and libraries. SD card interface works with FAT16 or FAT32 formatted cards, and includes a microSD card slot for data storage. It features a Real-time clock (RTC) with battery backup for accurate timekeeping even when the Arduino is unplugged.
Key Features - Arduino Data Logger Shield
- SD Card Interface: Supports FAT16 and FAT32 for broad compatibility.
- MicroSD Card Slot: Enables flexible data storage options.
- 3.3v Level Shifter: Ensures SD card protection.
- Includes Libraries: Provides a quick start with integrated SD and RTC code resources.
- Prototyping Area: Allows for customization with soldering connectors and circuitry.
- 3.3v Regulator: Supplies reliable power for demanding SD cards.
- Arduino Compatibility: Compatible with UNO, Duemilanove, Diecimila, and similar models.
- RTC: Features a built-in real-time clock for precise data entry time-stamping.
- Ease of Integration: Works seamlessly with various sensors.
- Dual Voltage Operation: Supports both 3.3V and 5V platforms for versatile use.
Applications
The Arduino Data Logger Shield is perfect for applications ranging from environmental monitoring and weather stations to vehicle tracking and home automation. The real-time clock ensures accurate data timekeeping for long-term data logging. Its prototyping area accommodates sensor integration, enhancing its use in custom projects. This module is also suitable for creating portable data storage or scientific data collection systems.
Technical Specifications
Product Specification | Value |
Model Type | Data Logger Shield |
Length (mm) | 68 |
Width (mm) | 54 |
Height (mm) | 24 |
Weight (g) | 25 |
Shipping Weight | 30 |
Shipping Dimensions | 8 × 8 × 4 cm |
Operating Voltage | 3.3V/5V |
RTC | Provided with a battery backup |
Data Interface | SPI communication protocol |
Board Compatibility | Designed for use with Arduino platforms |
How to Use - Arduino Data Logger Shield
- Begin by soldering headers to the shield to fit onto your Arduino board.
- Connect sensors via the prototyping area or use jumper wires for other modules.
- Insert an SD card formatted with FAT16 or FAT32 into the slot, or a microSD card for data storage.
- Upload example SD+RTC code provided in the libraries into your Arduino IDE.
- Modify the code to suit your project needs and ensure proper power supply to the shield and components.
Package Includes
1 x Data Logger module Logging Shield data Recorder Shield
Additional Resources
Download DatasheetLearn more about Arduino Data Logger Shield
Explore our development-boards Collection
Video Tutorials
Specification
Product Specification | Value |
---|---|
Model Type | Data Logger Shield |
Length (mm) | 68 |
Width (mm) | 54 |
Height (mm) | 24 |
Weight (g) | 25 |
Shipping Weight | 30 |
Shipping Dimensions | 8 × 8 × 4 cm |
