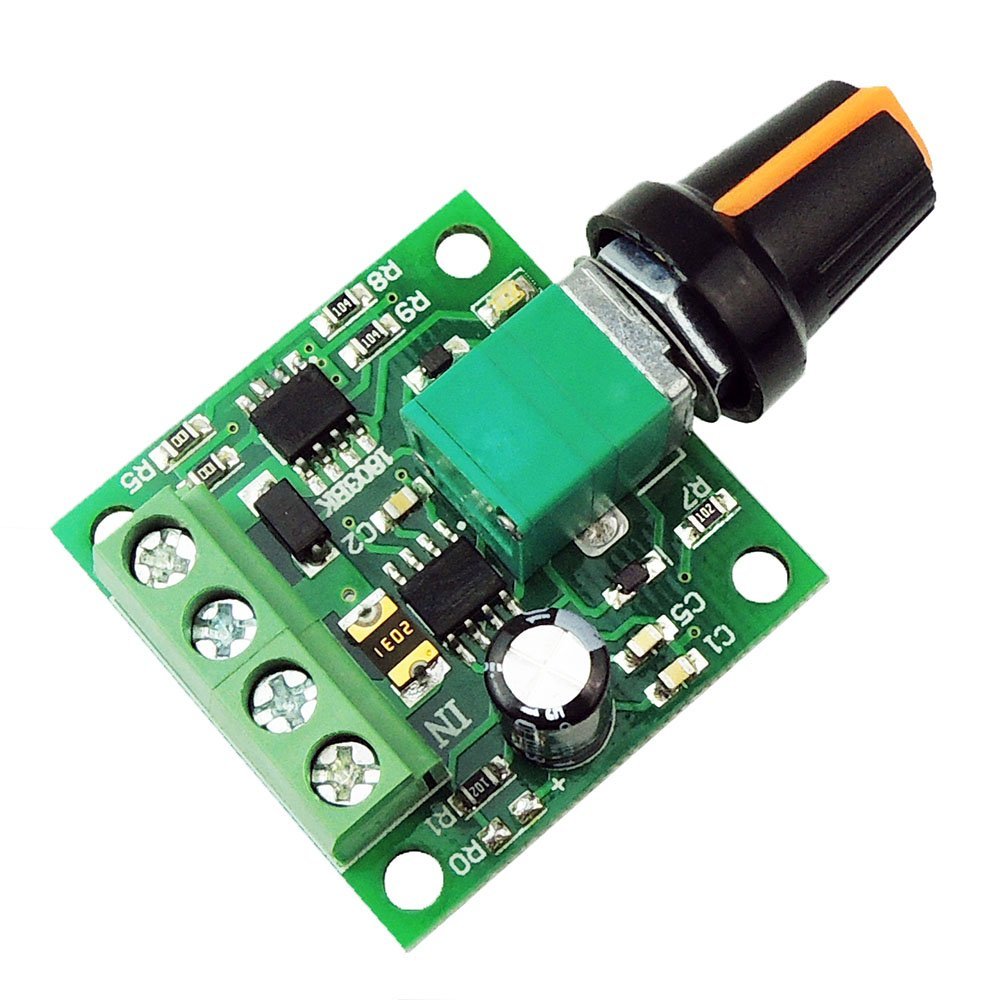

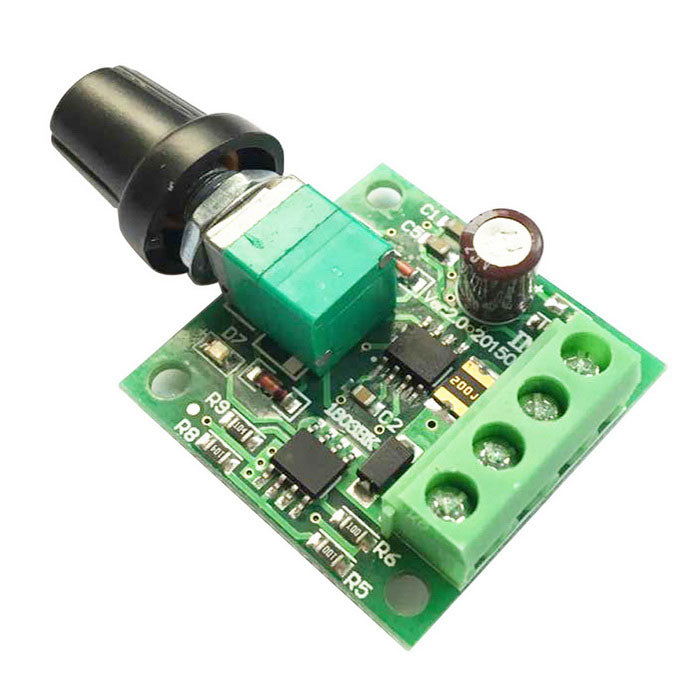

Description
DC Motor Speed Controller offers precise control over your DC motor's speed with a range from 1.8V to 12V. It employs Pulse-Width Modulation (PWM) for smooth and efficient operation, perfect for hobbyists and engineers seeking versatility. This compact and versatile device allows you to control speed motor DC effectively in various applications, including low voltage DC motors, enhancing your projects significantly. Adapt it to control the speed of DC motor in DIY environments.
Key Features - DC Motor Speed Controller
- Adjustable PWM for 0%-100% Duty Cycle
- Maximum Output Power: 30W
- Resettable Fuse for Safety
- LED Indicator for Status Check
- Potentiometer with Switch Function
- Input Voltage Range: 1.8V-15V DC
- Output Current Capacity: 2A Max
- Compatible with a wide range of DC motors due to the maximum continuous current of 2A
- Compact design for easy integration into various projects
- Simple interface for quick and intuitive operation
Applications
This DC electric motor speed control device is perfect for models like RC toy vehicles, efficient model railways, and robotics. It's ideal for projects needing DC drive motor speed control or experimenting with DIY electronics, providing high flexibility and performance in DC machine speed control.
Technical Specifications
Product Specification | Value |
Item Type | PWM Speed Regulator |
Current Rating (A) | 2 |
Voltage Rating (V) | 1.8 to 12 |
Output Current (A) | 2A(Max) |
Duty Cycle Adjustable (%) | 5%-100% |
Diameter of PCB holes | 3mm |
Pitch Terminal Block (mm) | 5.08mm |
Weight (g) | 16 |
Shipping Weight | 0.02 kg |
Shipping Dimensions | 6 × 4 × 1 cm |
Control Method | PWM |
Frequency | Typically around 20kHz |
Efficiency | High efficiency due to PWM technique |
How to Use - DC Motor Speed Controller

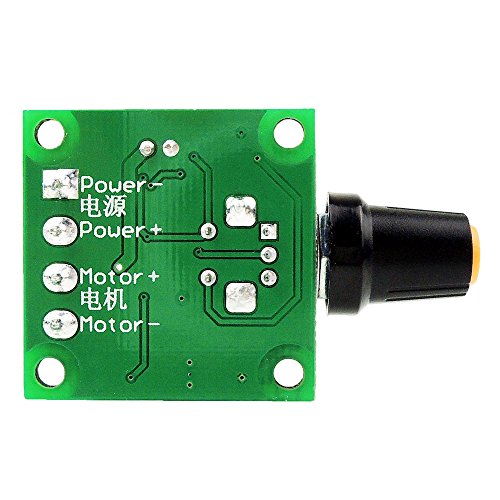

- Connect your DC motor to the provided motor terminals.
- Ensure correct polarity when connecting a voltage between 1.8V and 15V DC to the circuit.
- Adjust the speed via the potentiometer which includes a switch function.
- The LED indicator will assist in monitoring operation status.
Package Includes
- 1 x DC Motor PWM Speed Regulator
Additional Resources
Learn more about DC Motor Speed ControlExplore our Motors Drivers Pumps Actuators Collection
Video Tutorials
Specification
Product Specification | Value |
---|---|
Item Type | PWM Speed Regulator |
Current Rating (A) | 2 |
Voltage Rating (V) | 1.8 to 12 |
Output Current (A) | 2A(Max) |
Duty Cycle Adjustable (%) | 5%-100% |
Diameter of PCB holes | 3mm |
Pitch Terminal Block (mm) | 5.08mm |
Weight | 16 |
Shipping Weight | 20 |
Product Dimensions | 6x4x1 |
