Description
Original Mastech MAS830L Digital Multimeter is the perfect digital multimeter solution for all your AC/DC measurement needs. With its compact, pocket-sized design, it is ideal for both amateur hobbyists and professional electricians needing accurate and reliable measurements whilst on the go. Featuring a high-quality LCD display with blue backlighting, this multimeter offers up to 1999 counts and updates 2-3 times per second, guaranteeing precise readings. Discover the reliability and convenience of the Original Mastech MAS830L Digital Multimeter today, featuring competitive multimeter prices and a comparison to industry-leading fluke multimeters.
Key Features - Original Mastech MAS830L Digital Multimeter
- Brand: Mastech
- Compact and easy-to-use design
- DC Voltage up to 600V in 5 Ranges
- AC Voltage up to 600V in 2 Ranges
- DC Current up to 10A in 5 Ranges
- Resistance up to 2 M.OHMS in 5 Ranges
- Tests AC/DC Voltage, DC Current, Resistance
- Transistor Check, Diode and Continuity Test
- Display Back Light and Data Hold
- Continuity Buzzer for quick continuity tests
- Durable housing with a protective rubber sleeve for added protection
- Rubber holster for good grip
- Auto Polarity Display
Applications
The Original Mastech MAS830L Digital Multimeter offers versatility, suitable for electrical repairs, circuit testing, and lab use. It's perfect for AC/DC voltage testing and maintaining household appliances. Best multimeter choice for both automotive diagnostics and learning environments, it supports reliable and effective troubleshooting.
Technical Specifications
| Product Specification | Value |
| Item Type | Multimeter |
| Model Type | Digital Multimeter |
| Color | Black, Yellow |
| Display Type | Digital |
| Display Length | 140 mm |
| Width | 70 mm |
| Height | 35 mm |
| Weight | 200 g |
| Shipping Weight | 0.21 kg |
| Shipping Dimensions | 13 × 8 × 4 cm |
| DC Voltage Range | 200mV to 600V |
| AC Voltage Range | 200V to 600V |
| DC Current Range | 200µA to 10A |
| Resistance Range | 200Ω to 2MΩ |
| Battery | 9V (6F22 Type) |
| Diode Test | 1mA, 3V (approx.) |
| Transistor Test | hFE (0-1000) |
| Operating Temperature | 0 to 40°C |
| Fuse Protection | 250V/0.5A |
How to Use - Original Mastech MAS830L Digital Multimeter
- Select the desired measurement mode using the rotary switch.
- For voltage measurements, connect the red probe for positive and black for negative.
- Break the circuit for current measurements and connect the meter in series.

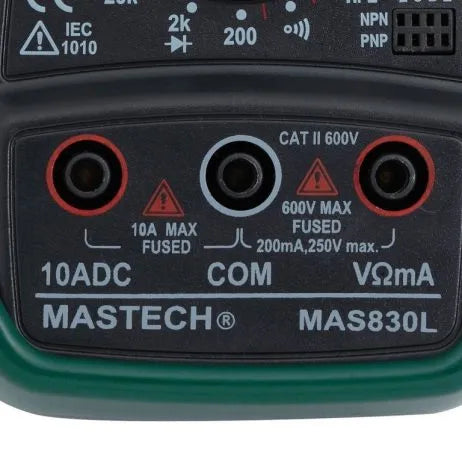

- Use the VΩmA and COM sockets for voltage and resistance. For above 200mA, use the 10A and COM sockets.
- Start with the highest range for safety and then switch to lower ranges if needed.
Package Includes
- 1 x Original Mastech MAS830L Digital Multimeter
- Multimeter Probes
Additional Resources
Learn more about multimeterExplore our Digital Multimeter Collection
Video Tutorials
Specification
| Product Specification | Value |
| Item Type | Multimeter |
| Model Type | Digital Multimeter |
| Color | Black, Yellow |
| Display Type | Digital |
| Display Length | 140 mm |
| Width | 70 mm |
| Height | 35 mm |
| Weight | 200 g |
| Shipping Weight | 0.21 kg |
| Shipping Dimensions | 13 × 8 × 4 cm |
