Description

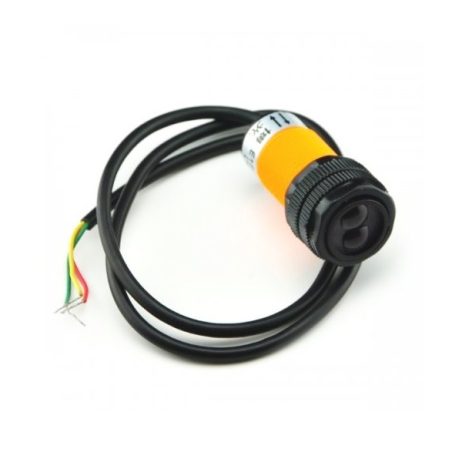

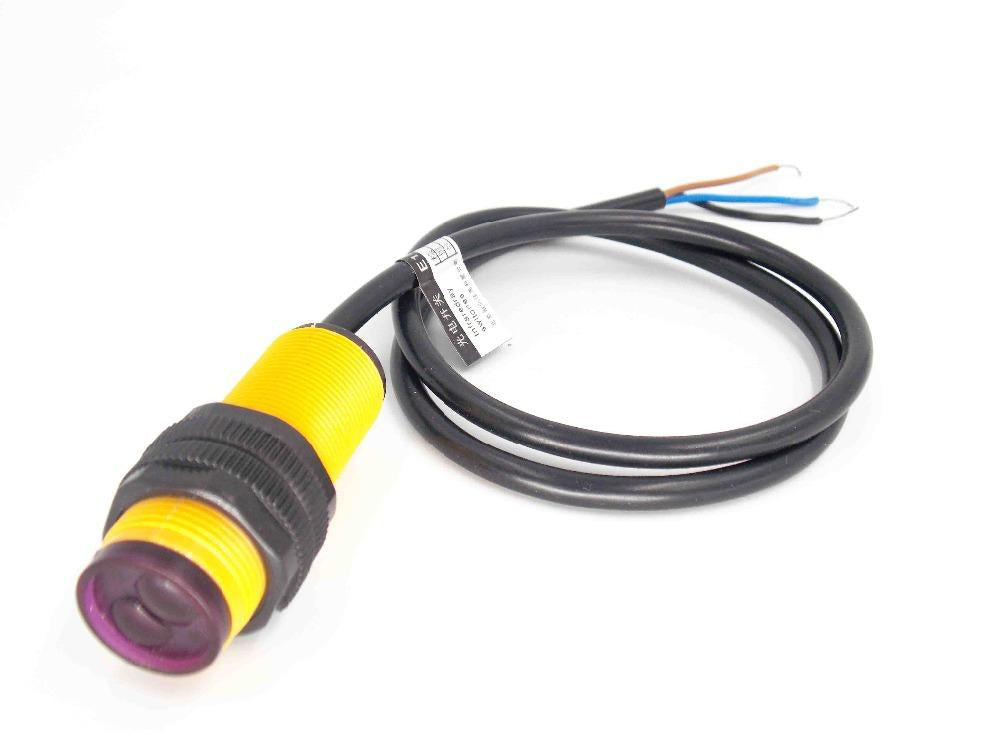

E18-D80NK Adjustable Infrared Sensor Switch 3-80cm is a compact and versatile ir sensor ideal for various detection applications. With an adjustable detection range from 3 to 80 cm, this infrared detector sensor ensures reliable performance in projects ranging from robotics to industrial assembly lines. The E18-D80NK combines a transmitter and a receiver into one efficient ir detector sensor, simplifying setup while providing robust obstacle detection capabilities.
Key Features - Adjustable Infrared Sensor
- Compact size and easy to assemble
- Adjustable detection range from 3 to 80 cm, allowing flexibility for different usage scenarios
- Low power consumption
- Diffuse reflective type sensor with digital output
- Bright light for easy detection scope indication
- Non-contact object detection through infrared technology
- Easy installation with an M18 sensor head and threaded barrel
- Durable and reliable for continuous use
Applications
The E18-D80NK is a versatile sensor ir infrared used in robotics for obstacle detection, ensuring seamless navigation. Its adjustable range makes it suitable for interactive media and passive infrared sensor installations, providing accurate user interaction. Additionally, it is invaluable in industrial automation tasks like product sorting and can function effectively as a passive ir sensor in security systems and object counting applications.
Technical Specifications
| Product Specification | Value |
| Operating Voltage (V) | 5 |
| Light Source | Infrared |
| Sensing range | 3 cm to 80 cm |
| Current Consumption (mA) | 300mA |
| Cable Length (m) | 1 |
| Output Type | NPN Normally Open (NO) |
| Infrared Wavelength | Approximately 940 nm |
| Sensing Distance Adjustment | Adjustable potentiometer |
| Response Time | < 2 ms |
| Diameter of Head | 18 mm (M18) |
| Operating Temperature | -25 to 55°C |
| Cable Length (m) | Approximately 1.2 meters |
How to Use - Adjustable Infrared Sensor
- Connect the red wire to a 5V power source.
- Connect the ground wire (green or blue) to your system's ground.
- Connect the yellow or black wire to receive the digital signal output.
- Adjust the detection range as needed by rotating the potentiometer located on the back of the sensor.
- Mount the sensor using its threaded barrel for stability.
- Test the sensor by placing an object within the detection range to ensure proper operation.
- Fine-tune the detection distance if needed for precise operation.
Package Includes
1 x E18-D80NK Adjustable Infrared Sensor Switch 3-80cm
Additional Resources
Learn more about Infrared SensorExplore our Sensor Collection
Video Tutorials
Specification
| Product Specification | Value |
| Item Type | Sensor |
| Model Type | Sensor Switch |
| Model No. | E18 D80NK |
| Operating Voltage (V) | 5 |
| Light Source | Infrared |
| Sensing range | 3cm to 80cm |
| Current Consumption (mA) | 300mA |
| Cable Length (m) | 1 |
| Shipping Weight | 0.04 kg |
| Shipping Dimensions | 8 × 7 × 4 cm |
