Description

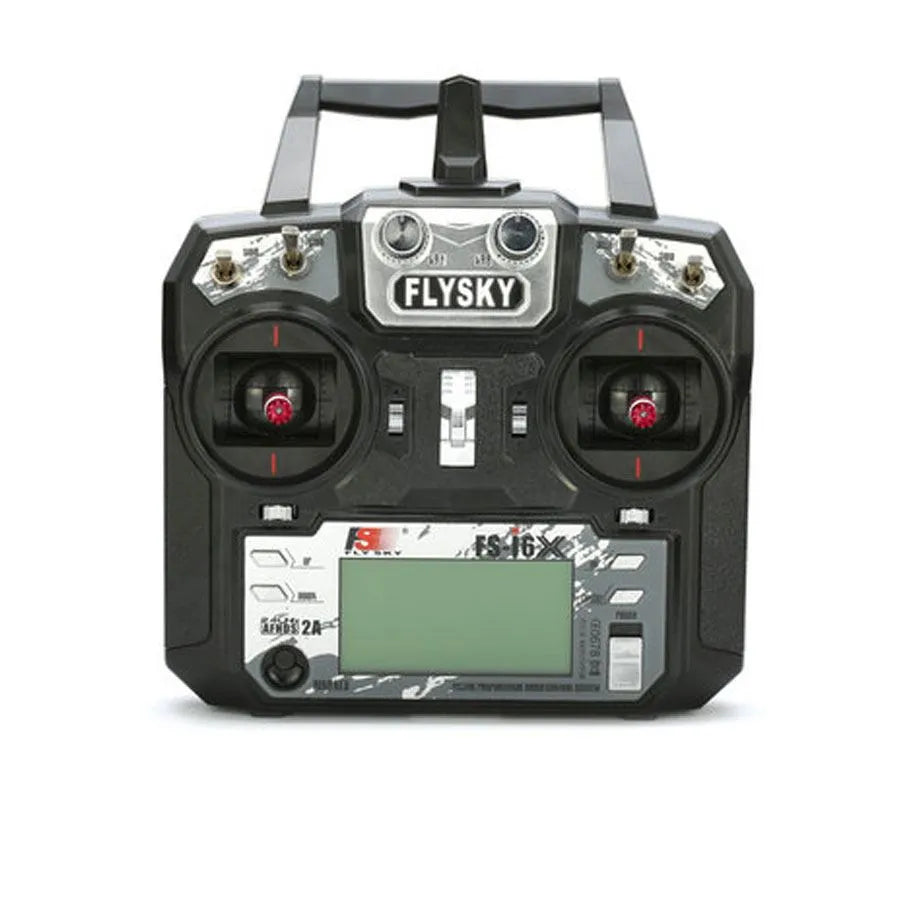

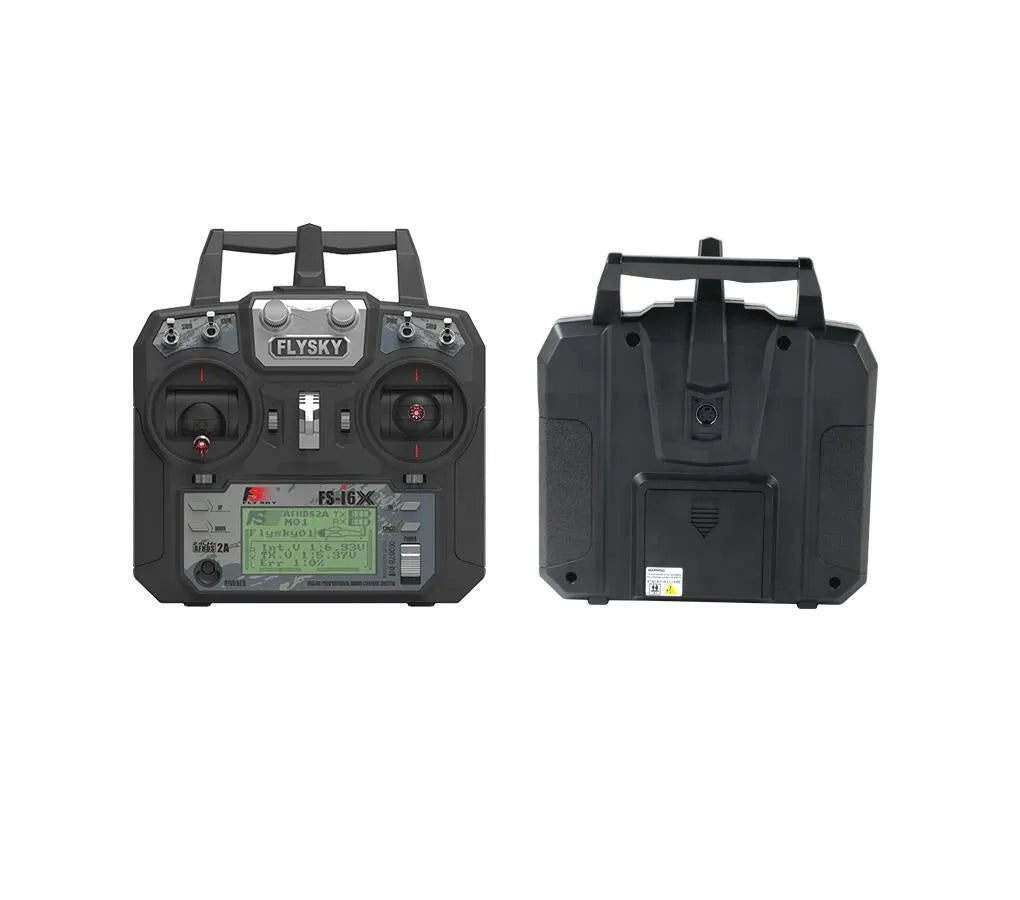

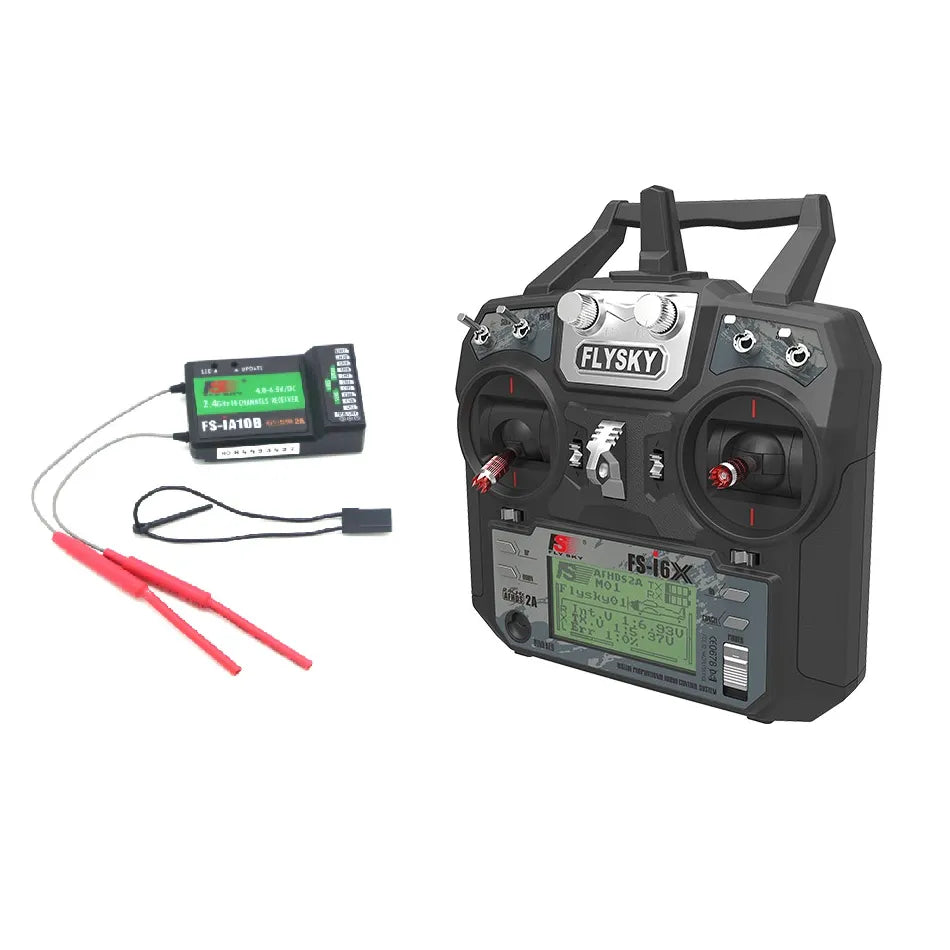

Flysky FS-i6X 2.4GHz 6CH AFHDS 2A RC Transmitter With FS-iA10B 2.4GHz 10CH Receiver Experience seamless control with the Flysky FS-i6X, engineered to elevate your remote control projects. This versatile radio control receiver and transmitter set boasts advanced AFHDS 2A technology, ensuring reliable communication. Perfect for a variety of applications, it delivers exceptional performance in interference-prone environments, making it ideal for both hobbyists and professionals.

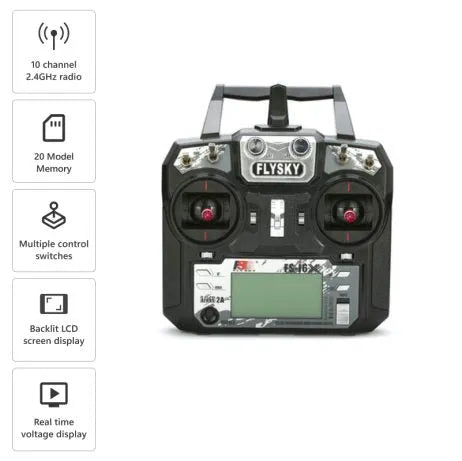

Key Features - Flysky FS-i6X
- 6-Channel FS-i6X Transmitter with additional 4 channels on the receiver for expanded functionality

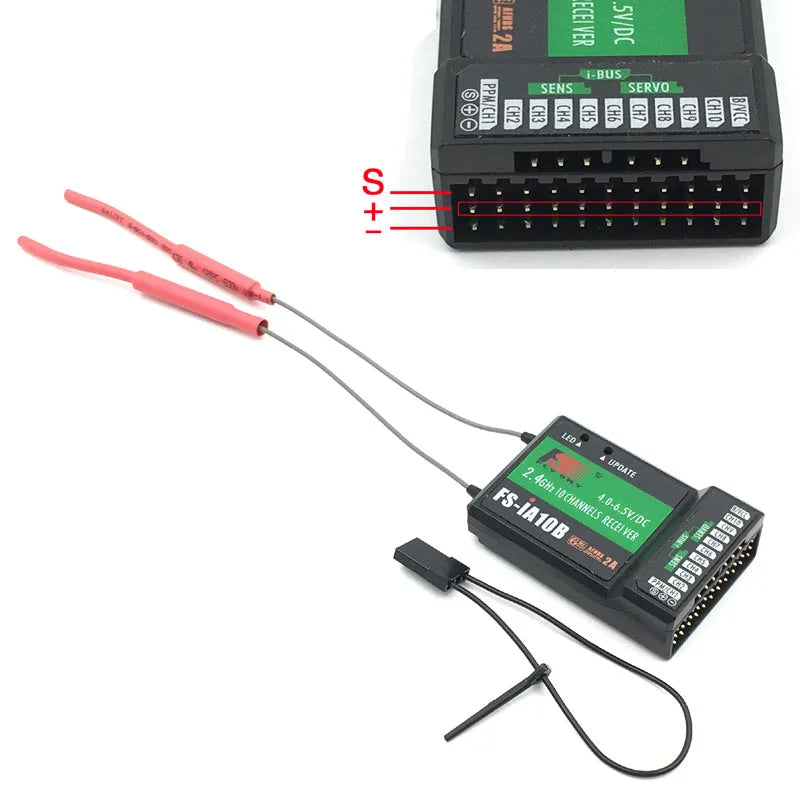

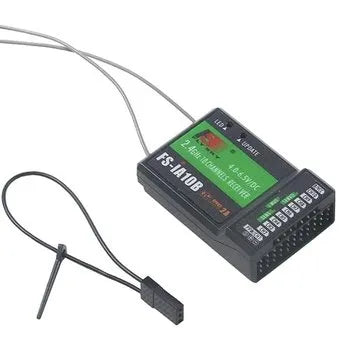

- 10-Channel FS-iA10B Receiver
- 2.4GHz AFHDS 2A Technology for reliable communication
- Telemetry Capability
- 500 kHz Bandwidth
- 135 RF Channels
- Built-in failsafe function for enhanced safety

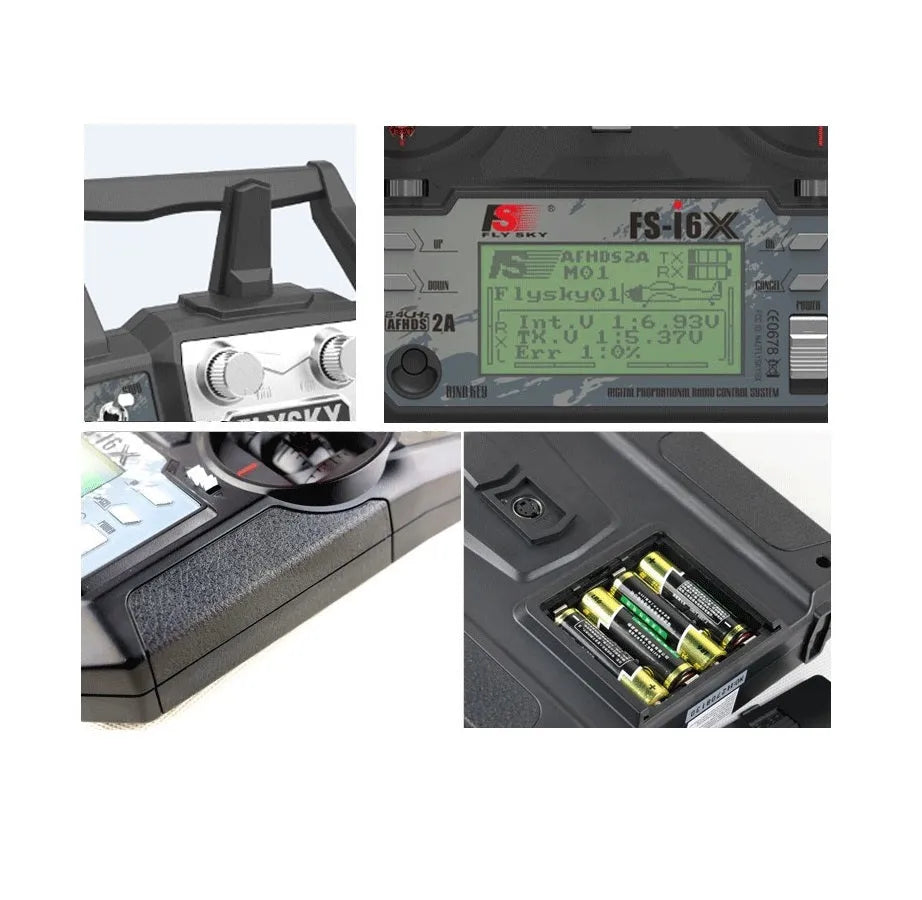

- Backlit LCD screen for clear visibility of settings
- Ergonomically designed transmitter comfortable for prolonged use
Applications
This remote control transmitter and receiver set is perfect for RC cars, drones, and helicopters, ensuring precise control over your projects. With its budget-friendly pricing and feature-rich design, it's an ideal choice for enthusiasts seeking superior performance in varied environments. Equip your remote control car with this transmitter receiver set for top-notch functionality.
Technical Specifications
| Product Specification | Value |
| Frequency (GHz) | 2.4 |
| Operating Voltage (VDC) | 6 |
| Antenna Length (mm) | 26 |
| Charging Port | No |
| Code Type | Digital |
| Color | Black |
| DSC Port PS/2 Port PPM | Yes |
| Low Voltage Warning | On <4.2V |
| Model Type | Digital Radio Transceiver |
| Modulation Type | GFSK |
| RF Power | < 20dBm |
| Default Operating Mode | Mode 2 (Left-Hand Throttle) |
| Band-Range (GHz) | 2.40 ~ 2.48 |
| Bandwidth (KHz) | 500 |
| UPC | 696392291586 |
| Transmitter Weight (g) | 392 |
| Transmitter Dimensions (mm) | 174 x 89 x 190 |
| Receiver Size (mm) | 47 x 26.2 x 15 |
| Receiver Weight (g) | 14.9 |
| Receiver Operating Voltage Range (VDC) | 4.0-6.5 |
How to Use - Flysky FS-i6X
- Install 4 AA batteries in the transmitter's battery compartment, ensuring it uses 6V DC.
- Bind the transmitter to the receiver according to pairing instructions.
- Connect the FS-iA10B receiver to an RC car or drone.
- Set the antenna correctly to enhance communication.
- Familiarize with the control switches, including the 3-position switch for mode changes.
- Use the backlit LCD to monitor operations in real-time.
- Test the setup by operating each channel for responsiveness before usage.
Package Includes
Retain this section as is from the 'Base Content'.
Additional Resources
Download DatasheetLearn more about Flysky FS-i6X
Explore our drone parts Collection
Video Tutorials
Specification
| Product Specification | Value |
|---|---|
| Item Type | Receiver, Transmitter |
| No. of Channels | 6 |
| Frequency (GHz) | 2.4 |
| Operating Voltage (VDC) | 6 |
| Antenna Length (mm) | 26 |
| Charging Port | No |
| Code Type | Digital |
| Color | Black |
| DSC Port PS/2 Port PPM | Yes |
| Low Voltage Warning | <4.2V |
| Model Type | Digital Radio Transreceiver |
| Modulation Type | GFSK |
| RF Power | < 20dBm |
| Default Operating Mode | Mode 2 (Left-Hand Throttle) |
| Band-Range (GHz) | 2.40 ~ 2.48 |
| Bandwidth (KHz) | 500 |
| UPC | 696392291586 |
| Dimensions (L x W x H) mm | 174 x 89 x 190 |
| Weight (g) | 392 |
| Shipping Weight | 750 |
| Shipping Dimensions | 25 x 25 x 8 |
