FlySky FS-T6 6CH Transmitter with FS-R6B Receiver is the innovative 6-channel 2.4GHz system designed to enhance operations for sports modelers. This radio transmitter and receiver duo is perfect for those seeking the power of programmability without extra features. Supporting helicopters, gliders, airplanes, and beyond, this setup allows storing up to 20 models with reliable performance.
Key Features - FlySky FS-T6 6CH Transmitter
- 6 Channels for versatile applications
- Programmable transmitter, ease of use
- Stores up to 20 models
- 2.4GHz AFHDS for superior range and reduced interference

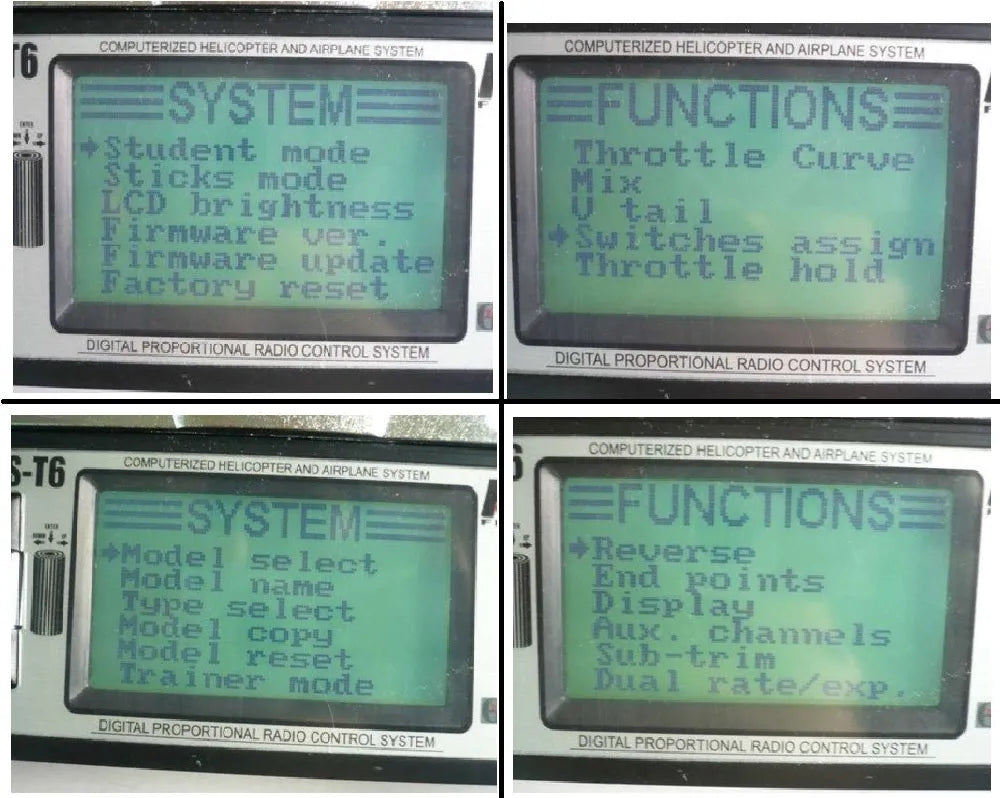

- Graphic programming for intuitive changes
- Low power consumption to prevent interference
- Ergonomically designed for comfortable handling
- Backlit LCD display for easy reading in various lighting conditions
- Configurable fail-safe options for added safety
Applications
Ideal for RC hobbies, the FlySky FS-T6 transmitter efficiently operates RC receiver and transmitter setups for models. It shines in controlling FM transmitter devices and aligns well with FM radio transmitter needs, ensuring minimal interference in demanding environments.
Technical Specifications
| Product Specification | Value |
| Frequency Range | 2.4000-2.485GHz |
| RF Power Output | Less than 20 dBm |
| Code Type | GFSK |
| Sensitivity | 1024 |
| Battery Type | 8 x AA 1.5V |
| Model | FS-T6 (Transmitter) |
| Model | FS-R6B (Receiver) |
| Bandwidth | 500Hz |
| Band | 160 |
| Current Consumption | 100mA |
| Transmitter Weight | Approximately 590g |
| Receiver Sensitivity | 105dBm |
| Receiver Power Supply | 4.0-6.5V DC |
| Antenna Length | 26mm |
| Receiver Weight | 14g |
| Dimensions | 47.5 x 23.5 x 9mm |
How to Use - FlySky FS-T6 6CH Transmitter
- Insert 8 AA batteries to power the transmitter.
- Turn on the device and use the menu dial for navigation and setup.
- Program up to 20 models and adjust throttle curves and other parameters.
- Bind the receiver by turning on the transmitter first, then connecting to the receiver.
- Conduct a diligent range and functionality check before operation.
- Disconnect receiver power before shutting off the transmitter.
Package Includes
- 1 x FlySky FS-T6 6CH Transmitter Remote
- 1 x FS-R6B 6-channel Receiver
- 1 x User Manual
Additional Resources
Download DatasheetLearn more about Transmitter
Explore our Drone Parts Collection
Video Tutorials
Specification
| Product Specification | Value |
| Item Type | Receiver, Transmitter |
| No. of Channels | 6 |
| Model Type | Glider/Heli/Airlane |
| Bandwidth (KHz) | 500 |
| RF Power | Less Than 20 dbm |
| Code Type | GFSK |
| Sensitivity (dBm) | 1024 |
| Compatible Battery Size | AA x 8 |
| Low Voltage Alarm | Yes(at less than 9V) |
| DSC Port | Yes(PS2; output: PPM) |
| Charging Port (Y/N) | Yes |
| Antenna Length (mm) | 26 |
| UPC | 601629677279 |
| Weight (g) | 590 |
| Shipping Weight | 0.8 kg |
| Shipping Dimensions | 30 × 28 × 14 cm |
