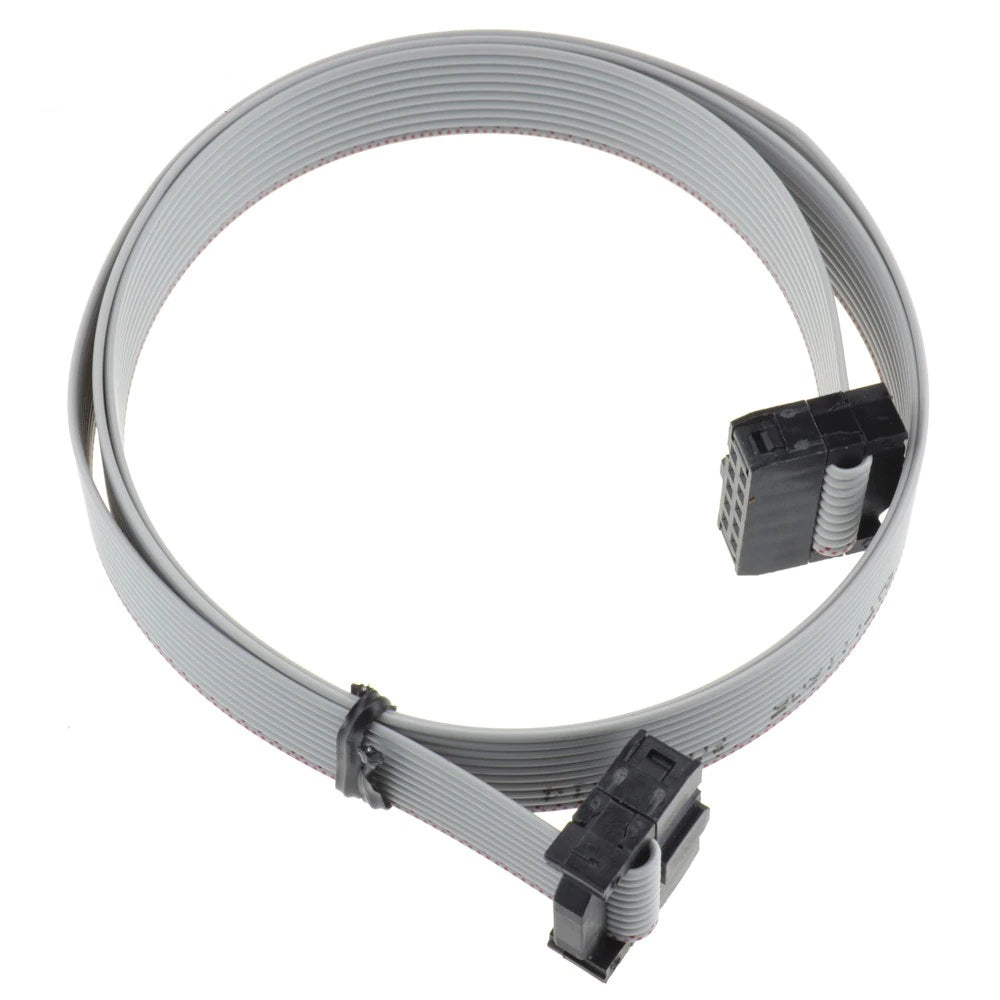

2.54mm Pitch 10 Pin JTAG ISP AVR Cable is an essential tool for verifying designs and testing PCBs after manufacturing. This JTAG cable is compatible with almost all embedded systems platforms and is specifically designed for programming and interfacing with AVR microcontrollers. With its reliable connections, the 10 pin 2.54 mm JTAG AVR cable supports plug-in debugging, firmware programming, and boundary-scan testing, making it a vital component for effective program read, write, and debug operations.
Key Features - 2.54mm Pitch 10 Pin JTAG ISP AVR Cable
- Compatible with all embedded systems platforms and AVR microcontrollers
- Supports field updates and troubleshooting
- Equipped with a 10 Pin, 2 Row Connector
- Standard 2.54mm pitch for various hardware configurations
- Reliable and efficient data transmission
- Compact and lightweight design for easy handling
- 150mm Cable Length
- Cable Size: 28 AWG
Applications
This JTAG cable is ideal for developers working with the xilinx platform cable usb ii and can be used for firmware programming of AVR microcontrollers. The cable is also utilized in boundary-scan testing for quick diagnostics and is suitable for setting up hardware through the JTAG port. It serves as a robust tool for AVR-based project development and prototyping, and is beneficial for educational purposes in learning microcontroller programming.
Technical Specifications
| Product Specification | Value |
| Pitch Spacing (mm) | 2.54 |
| Connector Type | 10-pin JTAG |
| No. of Pins | 10 |
| Cable Length (mm) | 150 |
| Wire Size (AWG) | 28 |
| Manufacturer | Generic |
| Construction | Flat ribbon cable for tidy connections |
How to Use - 2.54mm Pitch 10 Pin JTAG ISP AVR Cable
- Connect the JTAG cable to the target device's JTAG header.
- Attach the 10-pin JTAG side of the cable to your programming or debugging tool.
- Check all pinouts to match with the target board to prevent any damage.
- Use programming software to interface with the microcontroller.
- Ensure secure connections and compatibility with your specific programming tool.
Package Includes
- 1 x 2.54mm Pitch 10 Pin JTAG ISP AVR Cable
Additional Resources
Learn more about JTAGExplore our electronic-components Collection
Video Tutorials
Coming Soon! Check our YouTube channel for more videos.
Specification
| Product Specification | Value |
| Manufacturer | Generic |
| Pitch Spacing (mm) | 2.54 |
| Connector Type | JTAG |
| No. of Pins | 10 |
| Length (mm) | 1500 |
| Width (mm) | 17 |
| Height (mm) | 15 |
| Weight (g) | 8 (each) |
| Cable Length (cm) | 30 |
| Wire Size (AWG) | 28 |
| Shipping Weight | 0.3 kg |
| Shipping Dimensions (cm) | 6 × 6 × 1 |
