Description
Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera enhances your Raspberry Pi camera projects with advanced night vision capabilities using infrared, infrared rays, and infrared and heat. Designed for seamless integration, this powerful module meets diverse project needs by emitting invisible infrared light for clear camera sensor detection, proving invaluable in low-light conditions.
Key Features - Infrared Light
- Operating Voltage: 5V
- Operating Current: 600 mA (max.)
- Power: 3W
- Compatible with Raspberry Pi camera modules
- Compact & Lightweight
- Easy Integration with Raspberry Pi
- Adjustable Ambient Light Threshold
- Onboard Photoresistor for Light Detection

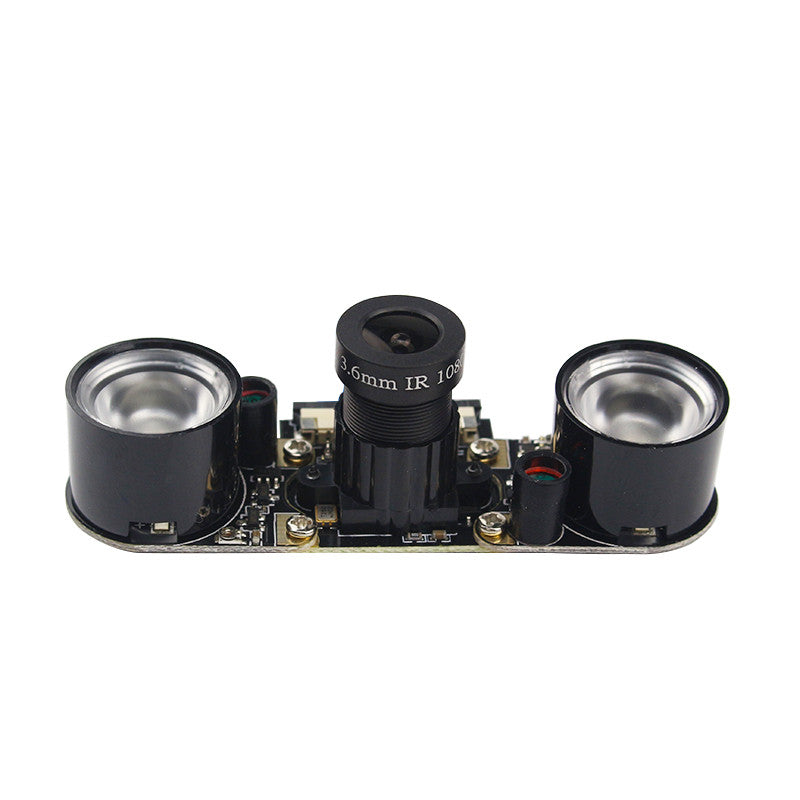

- Compatible with Night Vision Camera Module (500W Webcam)
- Emits infrared light for capturing clear images in low-light conditions
- Provides extended visibility range in darkness
Applications
Infrared light modules, crucial in low-light conditions, enhance Raspberry Pi projects from wildlife observation to home security, incorporating infrared wave, ir rays uses, and near infrared. Use them in Raspberry Pi-powered cameras to monitor nocturnal activities or restricted areas.
Technical Specifications
Product Specification | Value |
Operating Voltage (V) | 5 |
Max. Operating Current (mA) | 600 |
Power Rating (W) | 3 |
Emission Type | Infrared light, suitable for night vision |
Intended Use | For capturing images in low-light or complete darkness with Raspberry Pi cameras |
How to Use - Infrared Light
- Connect the infrared LED board to the camera PCB with screws.
- Adjust the onboard adjustable resistor for the right ambient light threshold.
- The infrared LED toggles based on light conditions to optimize performance.
- Consider a heat sink if the high-power LED increases the Raspberry Pi's temperature.
- Adjust the light’s position to encompass the desired field of view.
- Power up the Raspberry Pi to activate the infrared light for improved night-time imaging.
Package Includes
2 x Night Vision Sensitive Infrared Light 3W for Raspberry Pi Camera
1 x Screw Set
Additional Resources
Learn more about Infrared LightExplore our IoT and Wireless Collection
Video Tutorials
Specification
Product Specification | Value |
Item Type | Infrared Light |
Operating Voltage (V) | 5 |
Max. Operating Current (mA) | 600 |
Power Rating (W) | 3 |
Shipping Weight | 0.05 kg |
Shipping Dimensions | 5 × 5 × 5 cm |
