Description
IC Sockets are essential components for any electronics enthusiast or professional. Ideal for safely housing IC chips, these IC sockets ensure durability and ease of use. Whether you're working on a complex circuit design or simple prototyping, these IC sockets, IC holders, and IC chip sockets provide reliable support.
Key Features - IC Sockets
- Molded notch for proper orientation of ICs.
- Easy to insert and remove ICs, enhancing workflow efficiency.
- The base acts as a removable IC, protecting components from heat exposure.
- Variety in IC block types suitable for multiple PCB applications.
- Prevents heat damage to temperature-sensitive ICs.
Applications
Used in areas like robotics, automation, and more, where ic sockets deliver accurate results in 8 pin ic, pin ic, and dip ics applications.
Technical Specifications

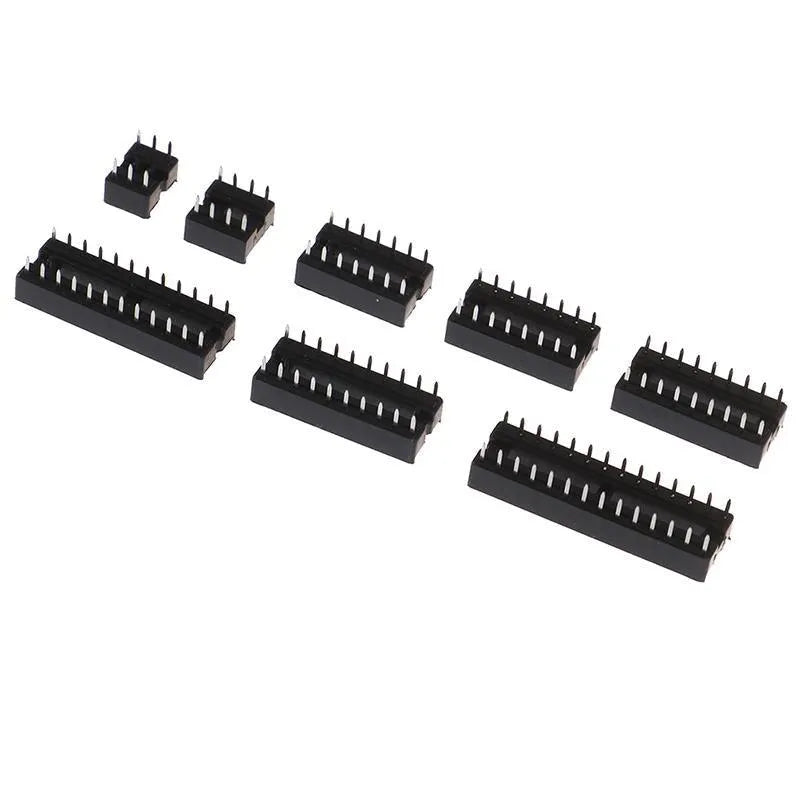

Product Specification | Value |
6 Pin DIP IC Socket Base Adaptor | 18 pcs |
14 Pin DIP IC Socket Base Adaptor | 6 pcs |
24 Pin Narrow DIP IC Socket Base | 6 pcs |
20 Pin DIP IC Socket Base | 6 pcs |
8 Pin DIP IC Socket Base | 12 pcs |
28 Pin Narrow DIP IC Socket Base | 6 pcs |
16 Pin DIP IC Socket Base | 6 pcs |
40 Pin DIP IC Socket Base | 12 pcs |
18 Pin DIP IC Socket Base | 6 pcs |
Container Plastic Box | 1 pc |
How to Use - IC Sockets
- Align the IC with the molded notch for proper orientation.
- Gently insert the IC into the socket to prevent pin damage.
- Solder the base kit directly onto a PCB for a sturdy placement.
- Utilize in projects demanding 14 pin ic, 16 pin ic, and cost-effective ic socket price solutions.
- Ensure the socket fits snugly for optimal IC performance and longevity.
Package Includes

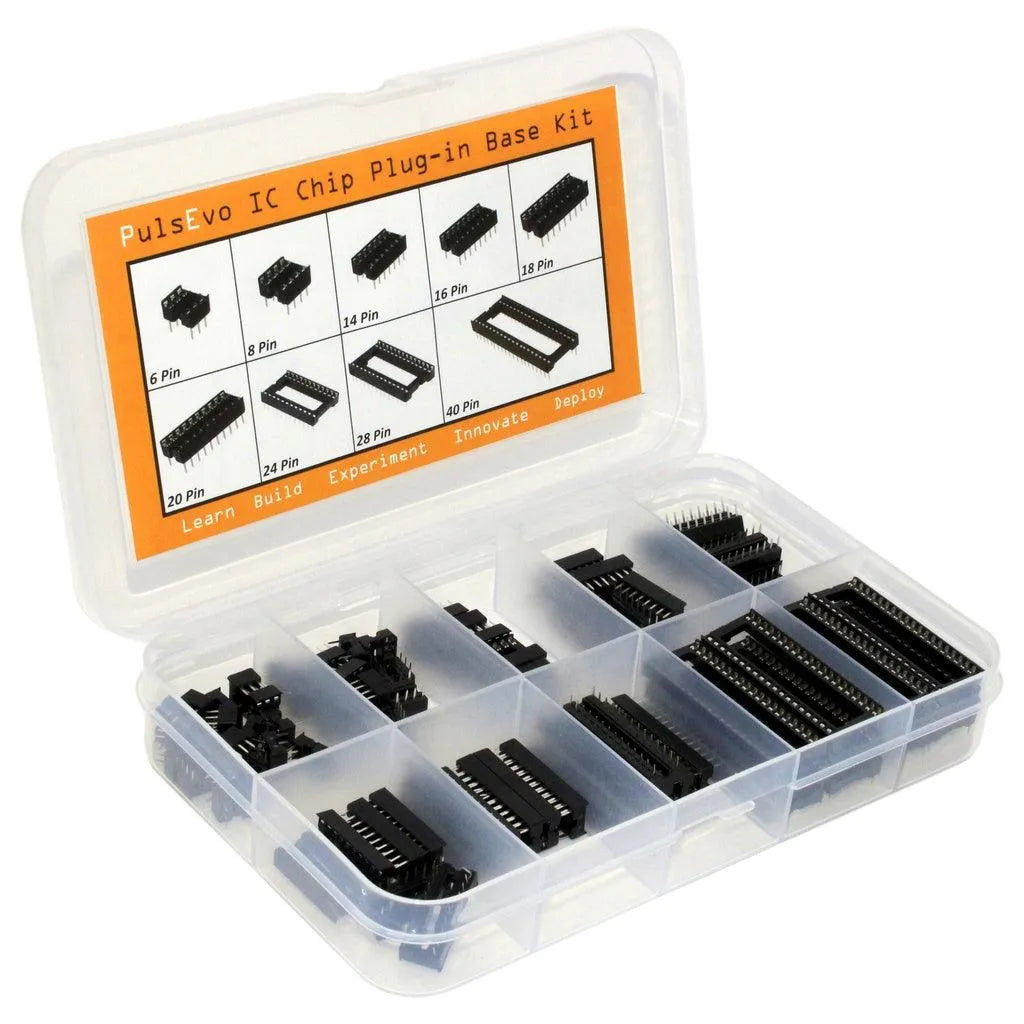

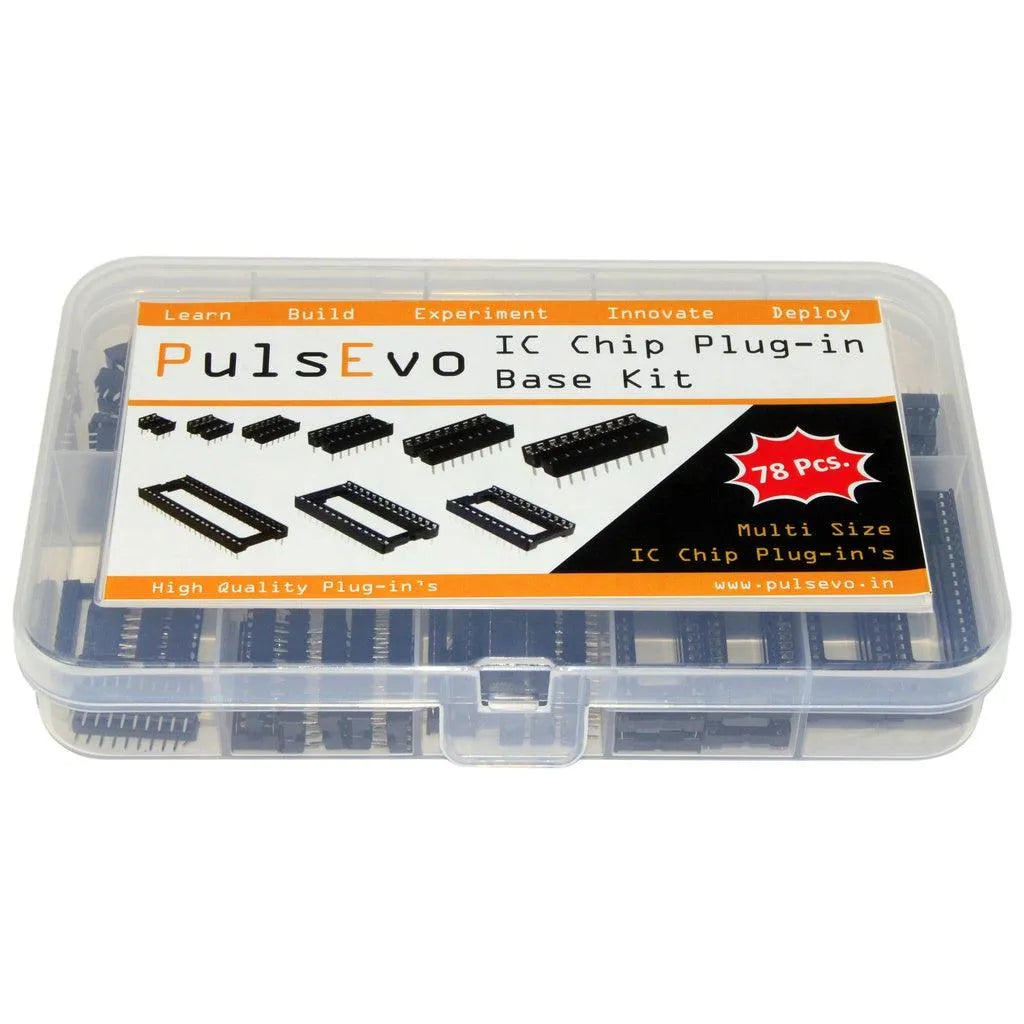

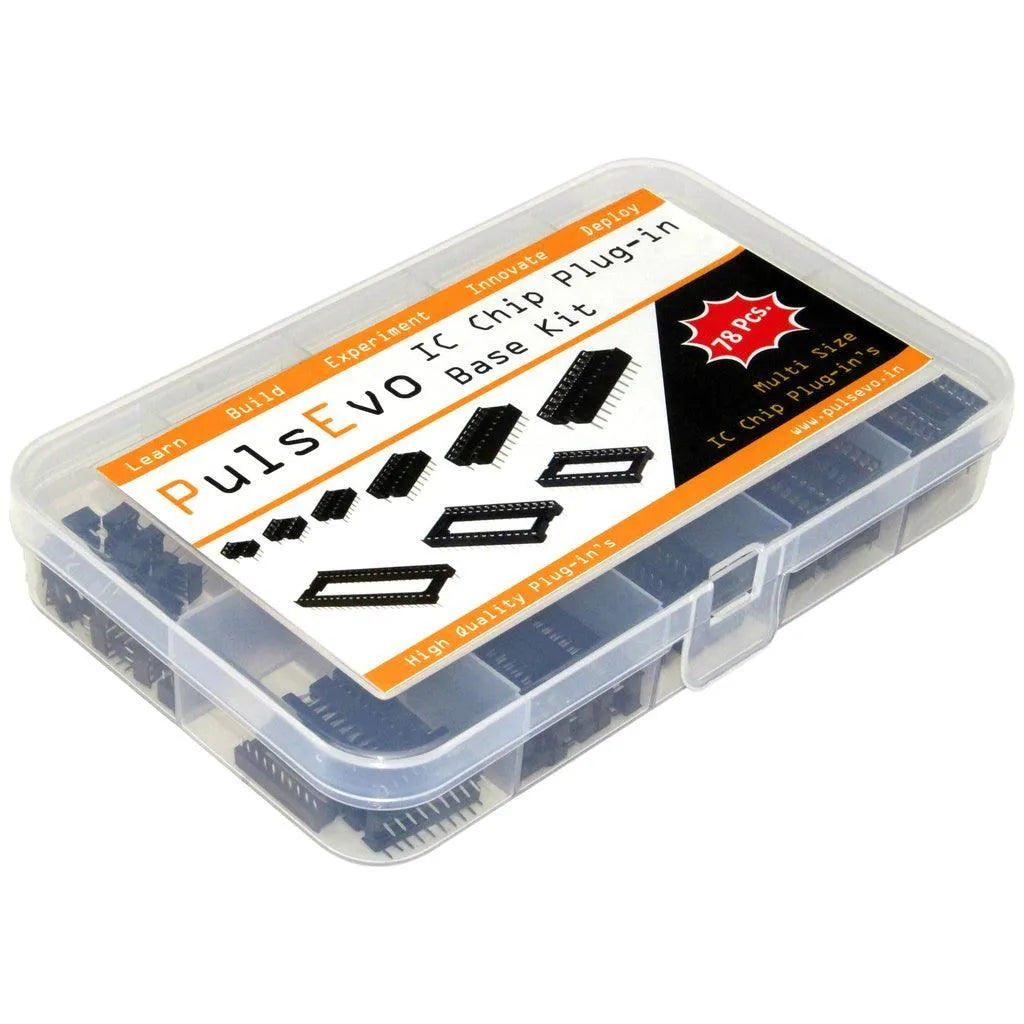

- 1 x PulsEvo IC Chip Plug-in 78pcs Base Kit Ideal for General Purpose PCB Prototyping
Additional Resources
Learn more about IC SocketsExplore our PulsEvo Electronic Components Kit Collection
Video Tutorials
Coming Soon! Check our YouTube channel for more videos.
Specification
Product Specification | Value |
---|---|
Number of Pieces | 78 |
Brand | PulsEvo |
Product SKU | 9126 |
Compatibility | Suitable for various ICs used in prototype circuits |
Material | Plastic/ABS |
Type | DIP Socket Plug-In |
Weight | 225g |
Length | 20cm |
Width | 12cm |
Height | 3cm |
Shipping Dimension | 20x12x3cm |
Shipping Weight | 300g |
