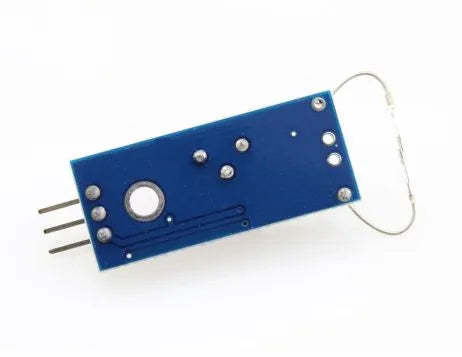

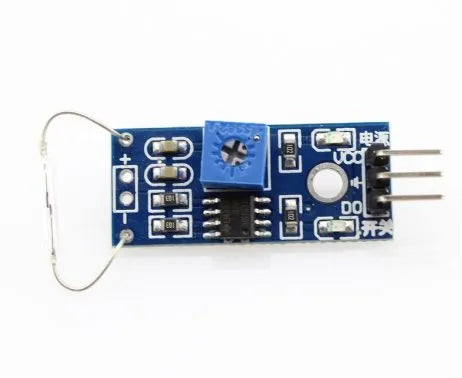

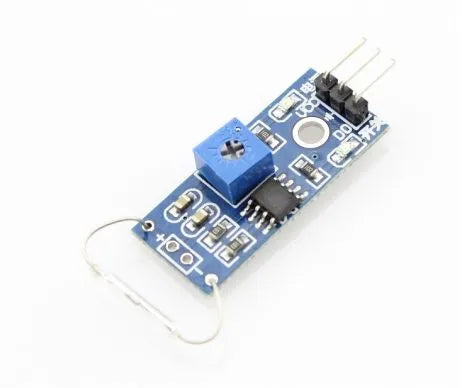

Reed Switch Module - Accurate Magnetic Digital Switch

Reed Switch Module is a versatile electronic component designed for detecting magnetic fields. Famous for its reliability and ease of integration, this reed switch sensor delivers excellent performance in non-contact switching applications. Whether you're working on automation systems or electronic projects, the reed relays stand out for their precision. This reed contact switch is essential where a magnetic reed contact accurately performs the switching.

Key Features - Reed Switch Module

• Simple interface and easy to use, integrated with a magnetic reed switch sensor.
• Reliable switching mechanism featuring the switch reed magnetic operation.
• Capable of detecting magnetic fields with a magnetic switch sensor.
• Supports both AC and DC signal switching using the magnetic reed contact switch.
• Operates without physical contact, utilizing a magnet and reed switch.

Applications

The Reed Switch Module is widely used in various applications, such as:

• Proximity Sensors: Ideal for applications requiring a magnetic switch.
• Security Systems: Essential in alarms benefiting from a reed contact sensor.
• Position Sensors: Used in industrial applications employing reed sensor working technology.
• Speed Measurement: Useful in measuring the speed of wheels or fans with a reed sensor.
• Door and Window Sensors: Commonly used in security alarm systems for intrusion detection.

Technical Specifications

How to Use

1. Connect the Reed Switch Module to the power source and load, ensuring voltage and current ratings are followed.
2. Place the module near a magnetic field for activation when the magnetic force is sufficient.
3. Integrate the module into circuits for magnetic field detection while preventing direct collisions with the magnet.
4. Test the sensor functionality using an LED or multimeter to confirm the magnetic switch operation.

Package Includes

• 1 x Reed Switch Module
