Description

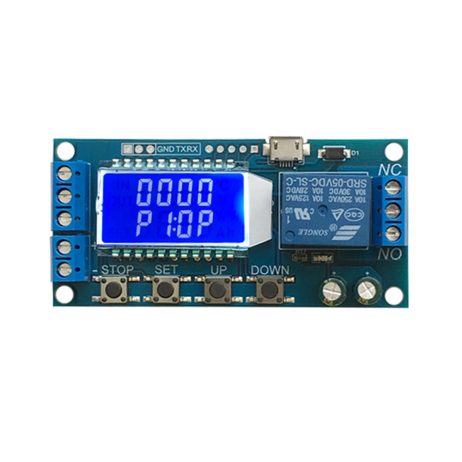

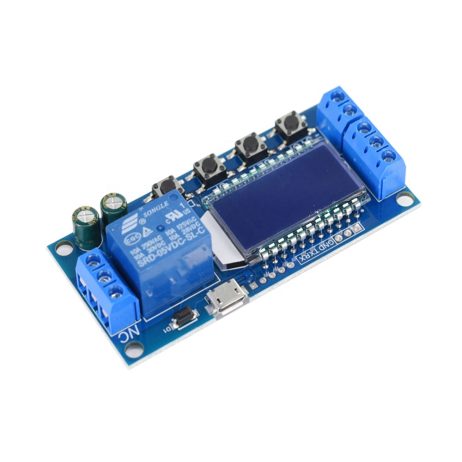

Relay Timer Module is an advanced and versatile device designed for precision timing and control in various applications. Featuring a digital LCD display, the relay timer module supports a wide range of voltages and provides users with multiple operational modes including delay, cycle, and timing operations. This 12v timer delay relay module is essential for smart home systems, industrial automation, and many other DIY electronics projects. With its micro USB interface, it offers easy power supply, making it suitable for integration in diverse timing and control tasks.
Key Features - Relay Timer Module
- 6-30V Micro USB Input
- Wide operating voltage range from 6-30V
- Supports multiple timing modes including delay and cycle timing
- Integrated LCD Display for Easy Programming and Timing Display
- High Anti-Interference Capability
- Compatible with Various Battery Types
- Adjustable Timing Ranges depending on mode setting
- Optocoupler Isolation for Enhanced Stability
- Emergency Stop Functionality
- Auto Sleep and Wake-up Modes
- Compact design suitable for integration in various projects
Applications
The delay module is perfect for smart home automation, managing 12v relay module operations, and more. It efficiently controls lighting and security systems, manages machinery in industrial automation, and fits in various educational electronics projects. These programmable timer relay modules help streamline timing and control tasks effortlessly.
Technical Specifications
Product Specification | Value |
Operating Voltage (VDC) | 6 to 30 |
Control Current (A) | 10A (Max) |
Quiescent Current (mA) | 15mA |
Working Current (mA) | 50mA |
Operating Temperature (°C) | -40~85℃ |
Battery Type | Storage Battery, Lithium battery |
Trigger Signal | High-level (3.0V~24V), Low-level (0.0V~0.2V) |
Reverse Voltage Protection | Yes |
Dimensions (L x W x H) mm | 80x38x2.1 |
Control Mode | Timer relay module |
Display Type | Digital LCD |
Interface | Micro USB for power supply |
Timing Range | Adjustable depending on the mode setting |

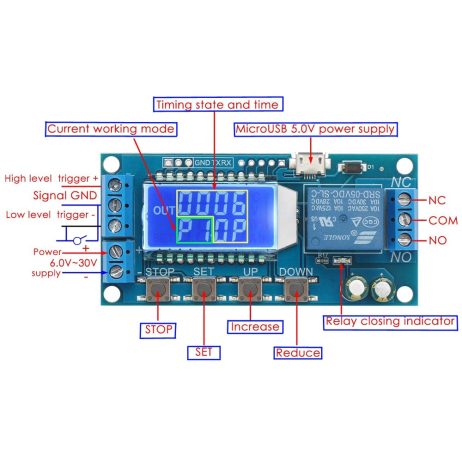

How to Use - Relay Timer Module
- Connect the module to a power source within the specified voltage range using the micro USB interface.
- Use the Micro USB input for power supply if necessary.
- Use the buttons provided to navigate through the settings displayed on the LCD screen.
- Set the desired working mode using the 'SET' button, based on your specific application needs.
- Use short and long presses of the buttons to adjust timing parameters, choosing from a range of 0.01 seconds to 9999 minutes.
- Follow the instructions to save and apply the settings for operation.
- Integrate the module into your project or application, ensuring that it is appropriately connected to the device or system you wish to control.
- Utilize the various modes (P1 to P7) for operations such as automatic cycling, signal hold, or special delay functions.
Package Includes

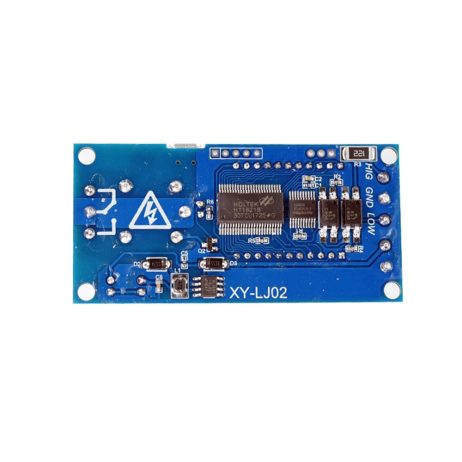

- 1 x XY-LJ02 6-30V Micro USB Digital LCD Display Time Module
Additional Resources
Learn more about relay timer moduleExplore our electronic-modules-and-displays Collection
Video Tutorials
Specification
Product Specification | Value |
Operating Voltage (VDC): | 6 to 30 |
Model No.: | XY-LJ02 |
Control Current (A) | 10A(Max) |
Quiescent Current (mA) | 15mA |
Working Current (mA) | 50mA |
Operating Temperature (°C) | -40~85℃ |
Battery | Storage Battery, Lithium battery |
Trigger Signal | High-level trigger (3.0V~24V), Low-level trigger (0.0V~0.2V) |
Reverse V. Protection (Y/N): | Yes |
Dimensions (L x W x H) mm | 80x38x2.1mm |
Shipping Weight | 0.034 kg |
Shipping Dimensions | 12 × 9 × 3 cm |
