Description

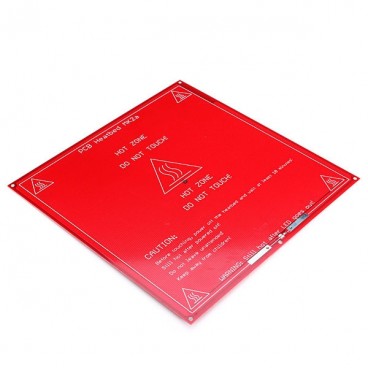

RepRap MK2B Heatbed is a versatile 3D printer heatbed solution that enhances your printing experience with its dual power capability. Perfectly compatible with the RAMPS MK2B version, it offers superior performance with a stable 144W power output. The heatbed is perfect for enhancing first-layer adhesion while providing even heat distribution. It integrates effortlessly into any 3D printer, including popular models like the Ender 3 heated bed. A glass plate is recommended for an optimal printing surface.
Key Features - RepRap MK2B Heatbed
- Dual power capability for 12V/24V usage.
- Central mounting hole aids in easy 3-point leveling.
- Copper plating enhances conductivity.
- Works with popular controllers like RUMBA.
- Compatible with various 3D printers.
- Offers even heat distribution across the board for better print adhesion.
- Durable PCB heated bed design.
- Easy installation process integrated into most 3D printer systems.
- Improves print surface quality by providing a consistently warm platform.
Applications
The RepRap MK2B heatbed is ideal for a range of applications, ensuring uniform heating crucial for high-quality prints. It works well with various 3D printers, such as the Prusa heatbed and Creality heated bed. This makes it suitable for DIY electronics, educational endeavors, detailed modeling, and functional part creation.
Technical Specifications
| Product Specification | Value |
| Input Supply Voltage (VDC) | 12 ~ 24 |
| Material | Copper |
| Surface Type | Copper Plated Holes |
| Dimensions | Approximately 214 x 214 mm |
| Power Input | 12V for up to 120°C, 24V for higher temperatures |
| Cable Specification | 18AWG for robust connectivity |
How to Use - RepRap MK2B Heatbed
- Securely mount the RepRap MK2B on your 3D printer using the central and side holes for a stable three-point system.

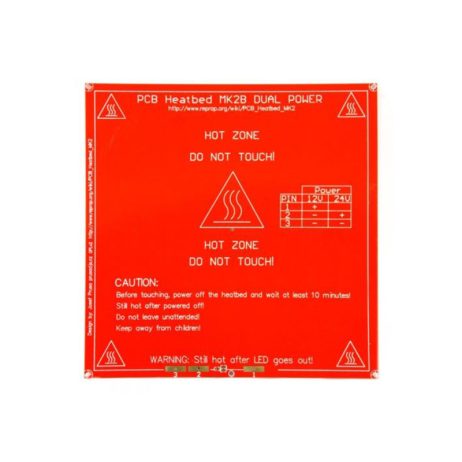

- For a 12V setup, connect one cable to terminal 1 and the other to terminals 2 and 3, ensuring a resistance of 1.0 ~ 1.2Ω for optimal power.
- For a 24V setup, connect one cable to terminal 2 and the other to terminal 3, leaving terminal 1 unconnected.
- Employ a glass plate to enhance flatness and rigidity.
- Adjust the heat bed settings in your 3D printer's software according to material requirements for optimal performance.
- Regularly calibrate and maintain the bed to ensure continuous optimal performance.
Package Includes
1 x RepRap MK2B Dual Power PCB Heat Bed With 18AWG Cable
Additional Resources
Learn more about RepRap MK2B HeatbedExplore our 3D Printers and Parts Collection
Video Tutorials
Specification
| Product Specification | Value |
| Item Type | Heatbed |
| Size (mm) | 214×214 |
| Surface Type | Copper Plated Holes |
| Material | Copper |
| Input Supply Voltage (VDC) | 12 ~ 24 |
| Laminated Material | FR4 1.6±0.15 mm |
| Active Area (mm) | 200×200 |
| Color | Red |
| Length (mm) | 214 |
| Width (mm) | 214 |
| Cable Length (m) | 0.4 |
| Shipping Weight | 0.285 kg |
| Shipping Dimensions | 23 × 23 × 2 cm |
