Description

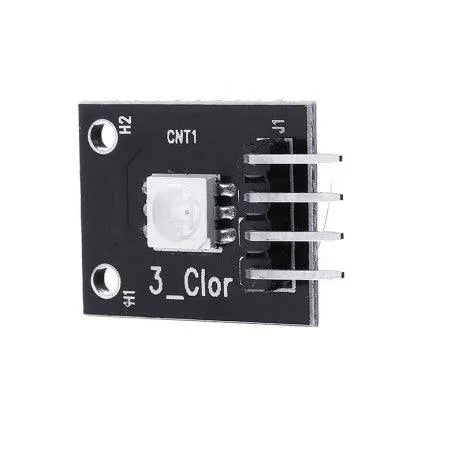

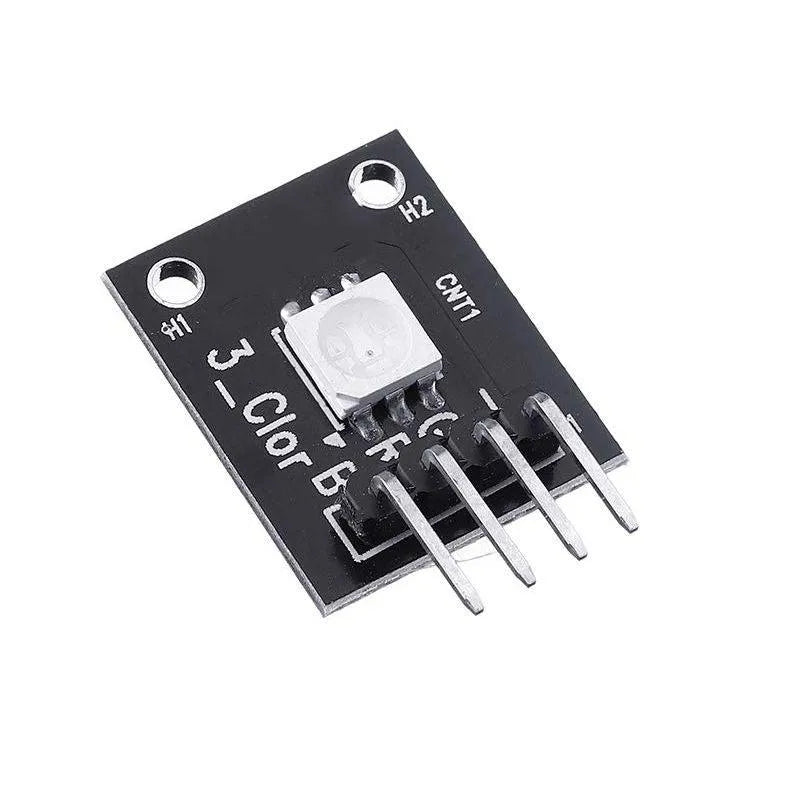

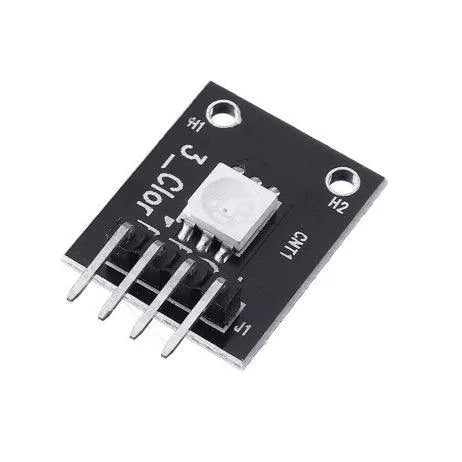

The SMD 3 Color LED Module (SKU: 6204) is a versatile RGB LED module designed for a range of electronics projects. Featuring an RGB trichromatic limiting resistor to prevent burnout, this module allows for PWM-adjusted color mixing to create dynamic lighting effects. Ideal for use with popular platforms such as Arduino, Raspberry Pi, and ESP8266, it provides a simple yet effective solution for full-color LED projects. The 5050 SMD LED module operates at 5V with a common cathode driver, ensuring stable and efficient performance across various applications.
Key Features
- RGB Color Control: Achieves full-color mixing with PWM adjustment.
- Burnout Protection: Built-in resistor prevents LED damage.
- Compatible: Works with Arduino, Raspberry Pi, and ESP8266.
- Common Cathode Driver: Ensures stable operation at 5V.
- Compact Size: Small and lightweight, easy to integrate.
Specifications: RGB LED Module
| Operating Voltage (V): | 5V max |
| Forward Current (mA): | 20 ~ 30 |
| Operating Temperature (°C): | -25°C to 85°C |
| Dimensions (mm): | Length: 18.5, Width: 15, Height: 7 |
| Weight (g): | 1 (approx) |
| Shipping Weight: | 0.01 kg |
| Shipping Dimensions: | 10 × 8 × 2 cm |
Package Includes
- 1 x SMD 3 Color LED Module
Additional Information
For more LED modules, explore our LED Modules Collection at SunRobotics.
Specification
| SKU: | 6204 |
| Operating Voltage (V): | 5V max |
| Forward Current (mA): | 20 ~ 30 |
| Operating Temperature (°C): | -25°C to 85°C |
| Dimensions (mm): | Length: 18.5, Width: 15, Height: 7 |
| Weight (g): | 1 (approx) |
| Shipping Weight: | 0.01 kg |
| Shipping Dimensions: | 10 × 8 × 2 cm |
