Robotics Switch Box Enclosure with DPDT Switches

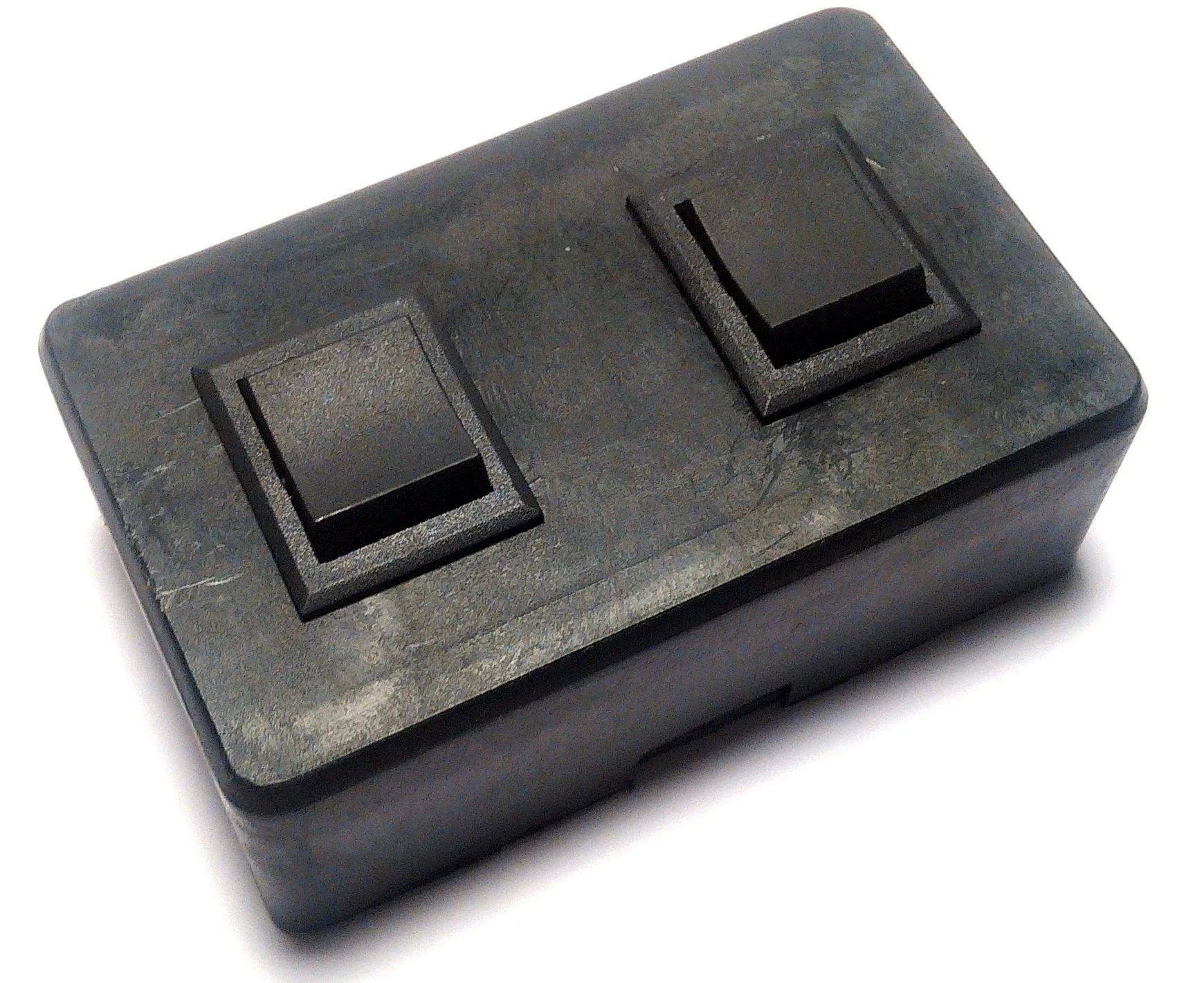

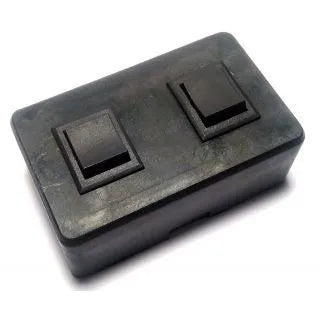

Robotics Switch Box With DPDT Switches This is a Robotics Switch Box Enclosure With DPDT Switches designed for enthusiasts and professionals looking to enhance their robotics projects. This specialized enclosure is built to house DPDT (Double Pole Double Throw) switches, providing a durable and reliable switching mechanism for controlling various robotic systems remotely. The switch box is well-crafted to accommodate two DPDT Rocker Switches, making it a perfect makeshift remote for your robot and an ideal Remote Control Box for Wired Hobby Robot Control. Its robust design ensures optimal performance in various operating environments.

Key Features - Robotics Switch Box

• Constructed with durable materials for long-lasting use
• Good Impact Resistance
• Equipped with multiple DPDT switches for versatile control options
• Good Stiffness
• Compact design for ease of installation and minimal spatial footprint
• Switches will directly snap fit into slots
• Switches are ROCKER TYPE (They will retain central Position once force is removed from them)
• Flush mounting DPDT rocker switch For Linear Actuators and other DC Motors 3 position switch
• Simple and straightforward integration with robotic systems
• Provides reliable mechanical switching functionality

Applications

This Robotics Switch Box Enclosure is ideal for various practical applications, such as remote-controlled robotics and educational robotics projects. It suits industrial automation scenarios and DIY switch-based control. The switch box effectively manages switch operations, making it suitable for lights junction boxes or other configurations requiring quick switching.

Technical Specifications

How to Use - Robotics Switch Box

• Ensure the correct wiring of the DPDT switches to your system using the terminals provided.
• Connect the switch box to your robot or electrical application, ensuring proper polarity for the desired actuator motion. Wire the DPDT switches as per the schematic requirements for your specific application.
• Ensure all connections are secure and that the enclosure is properly mounted to prevent any mechanical stress on the wiring. Utilize the rocker switches to switch between positions for the required operations.
• Operate the switches manually to control the direction or mode of operation of the connected devices.
• Regularly check and maintain the enclosure and switches for optimal performance and longevity.

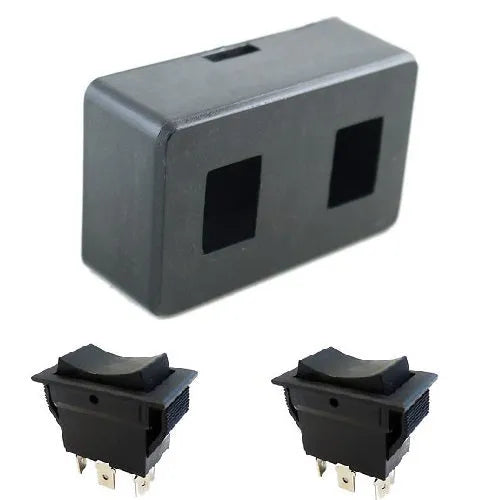

Package Includes

Robotics Switch Box Enclosure x 1

DPDT Switches x 2
