Description

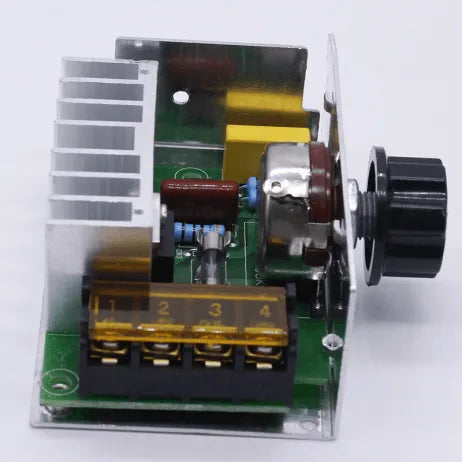

The 4000W High-Power SCR Thyristor Electronic Regulator is designed expertly for those requiring robust light, temperature, and speed regulation for their AC 220V appliances.
Features: SCR Thyristor 4000W
- Manage powerful loads up to 4000W effortlessly.
- Adjust voltage seamlessly between 0V to 220V.
- Optimal for diverse applications including light dimming, fan speed adjustment, and stove temperature control.

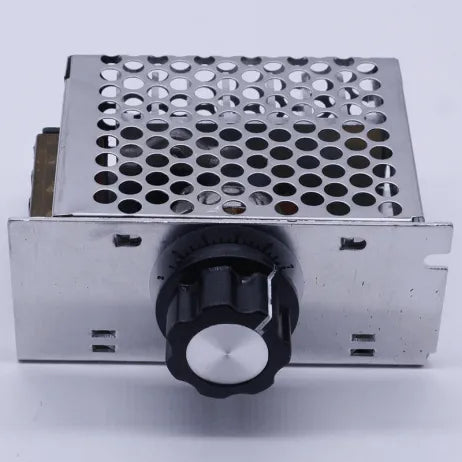

- User-friendly potentiometer allows for easy power adjustments.
- Robust shell ensures durability and safety.
Applications
This SCR-thyristor regulator is highly versatile, perfect for controlling electric furnaces, water heaters, lamps, small motors, and electric irons. Its capability to handle up to 40A makes it ideal for minimizing over-current incidents, ensuring appliances function efficiently.
Specifications
| Input Voltage | AC 220V |
|---|---|
| Maximum Power | 4000W |
| Adjustable Voltage | AC 0V-220V |
| Frequency | 50Hz ~ 60Hz |
| Dimensions | 85mm x 58mm x 40mm |
| Weight | 123g |
How to Use

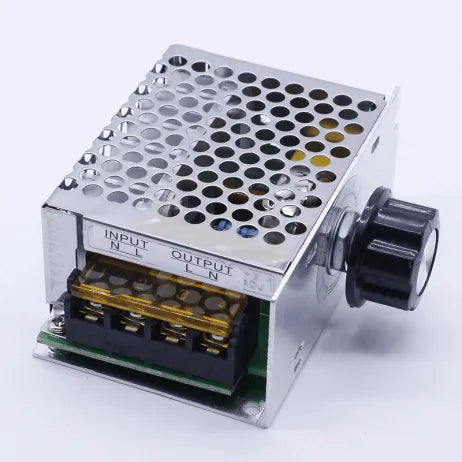

- Connect the AC supply at the module's input.
- Attach your appliance to the module's output.
- Adjust the power using the potentiometer.
Package Includes
1 x 4000W High-Power Thyristor Electronic Regulator, Dimming Speed Regulation, with Shell
Additional Links
Download DatasheetElectronic Modules and Displays Collection
Videos Tutorial
Specification
| Input Voltage | AC 220V |
|---|---|
| Maximum Power | 4000W |
| Adjustable Voltage | AC 0V-220V |
| Frequency | 50Hz ~ 60Hz |
| Length | 85mm |
| Width | 58mm |
| Height | 40mm |
| Weight | 123g |
