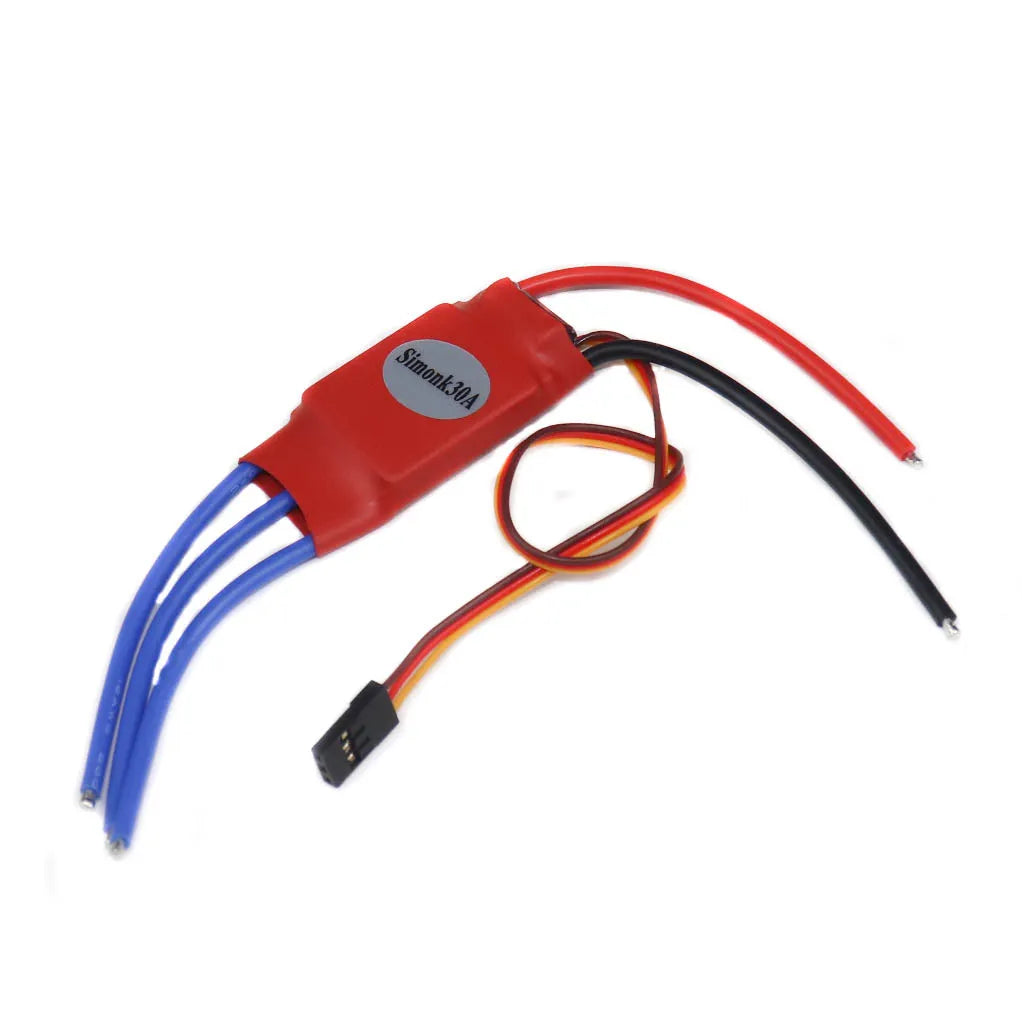

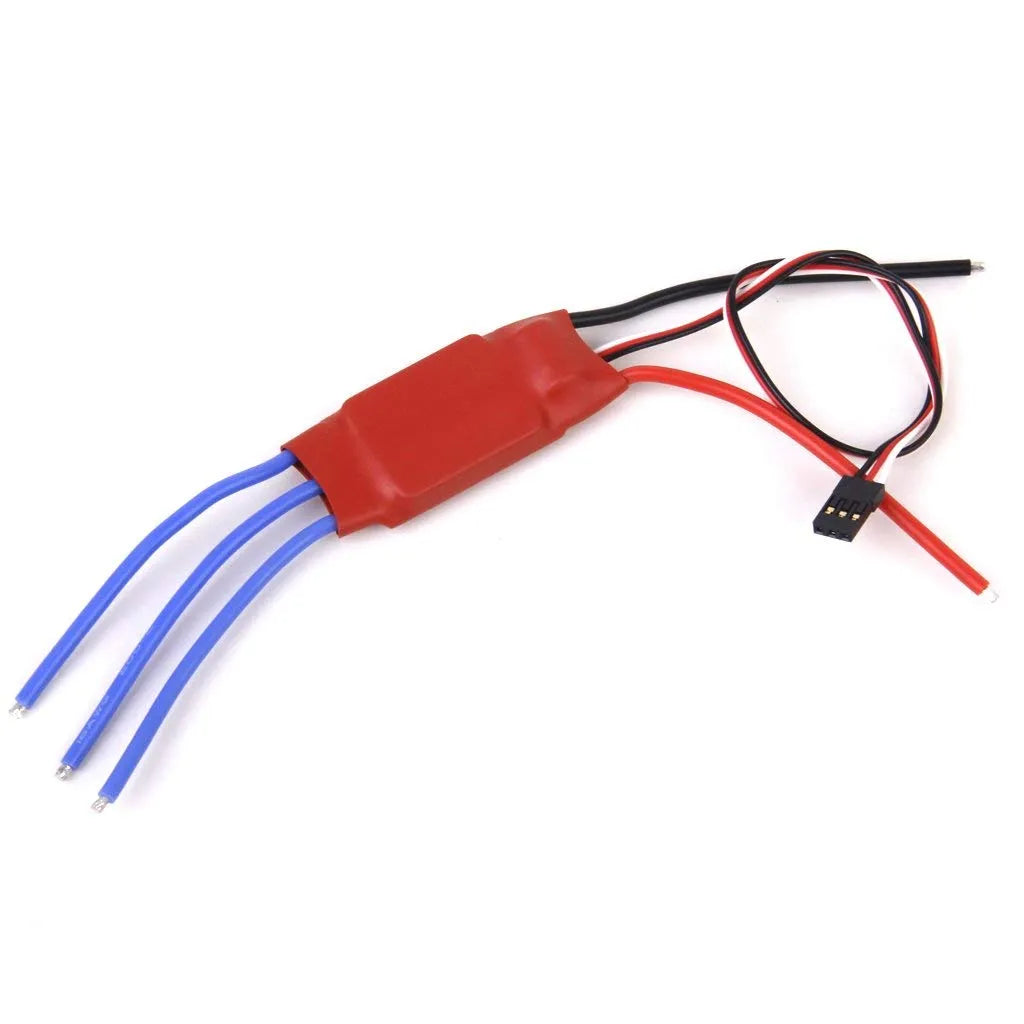

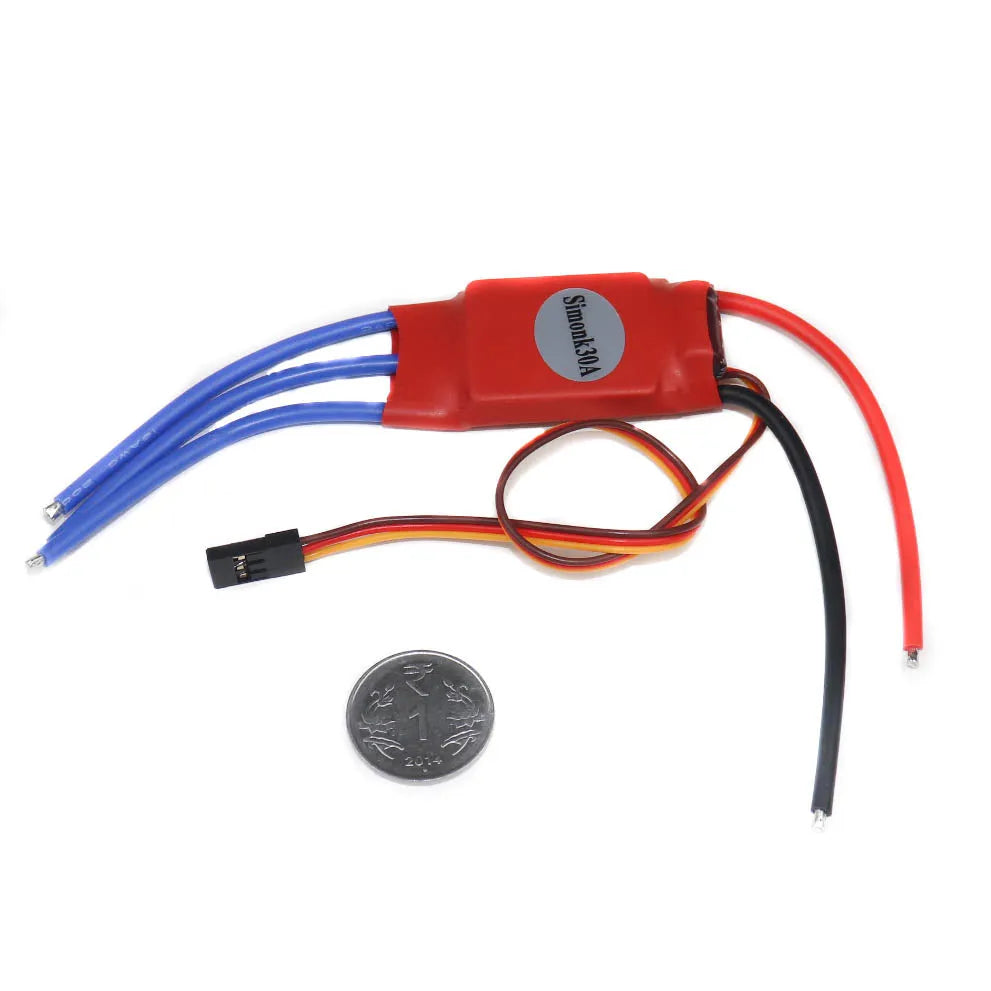

SimonK 30A ESC Electronic Speed Controller for Drones (Without Connectors)

SimonK 30A ESC Electronic Speed Controller is an ideal solution for quadcopters and multi-rotor enthusiasts. Engineered for superior motor speed control, it enhances flight performance significantly compared to other ESCs available on the market. Capable of driving motors that require up to 30A of current, this ESC is compatible with 2-4S LiPo batteries and features a battery eliminator circuit (BEC) that provides 5V and 2A to your receiver, eliminating the need for an additional receiver battery. Its robust backward-polarity protection and over-temperature protection ensure your motor controller's safety, even with accidental battery connections. The SimonK 30A BLDC ESC is renowned for its efficiency, reliability, and suitability for various types of model aircraft applications.

Key Features - SimonK 30A ESC

• Model: SIMONK 30A
• Constant Current: 30A (Max 40A < 10 sec)
• BEC: 5V 2A (Note: No BEC in some variants)
• Suitable Batteries: 2-4S LiPo
• Pre-loaded with SimonK firmware for superior throttle response
• Supports high RPM motors, making it ideal for high-speed applications
• Compact and lightweight design for easy model integration
• Lack of pre-soldered connectors allows for customized soldering
• Over-temperature protection and low-voltage cutoff feature enhance safety

Applications

Primarily used in quadcopters, drones, and RC airplanes, the SimonK 30A ESC is also suitable for other remote-controlled vehicles requiring precise speed control. Adaptable for a range of hobbyist and competitive applications, given its compatibility with various LiPo battery configurations and high efficiency, it is suitable for extensive flight sessions and rigorous performance expectations.

Technical Specifications

How to Use - SimonK 30A ESC

• Connect the ESC to your chosen brushless motor ensuring correct polarity.
• Adjust the throttle range compatible with your remote control.
• Utilize the programmable 3 start modes: Normal, Soft, and Super-Soft.
• Solder your choice of connectors based on model requirements.
• Connect the ESC to the battery pack within the correct voltage range.
• Program the ESC if required and test the setup in a controlled environment.
• Never disconnect the remote control receiver before the ESC for safety.

Package Includes

1 x SimonK 30A BLDC ESC Electronic Speed Controller Without Connectors
