Description

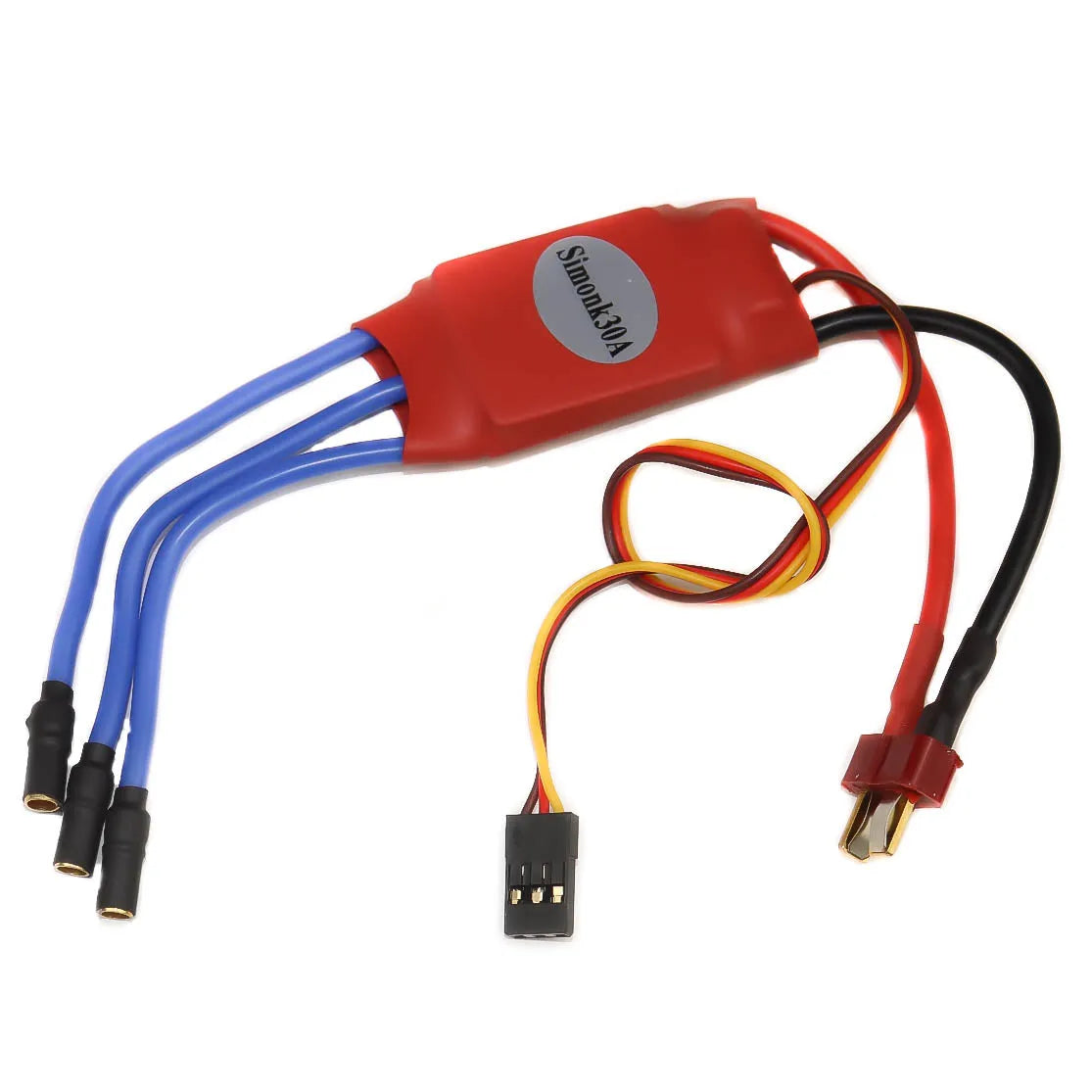

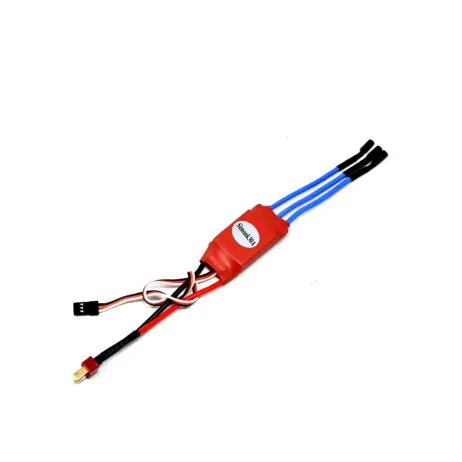

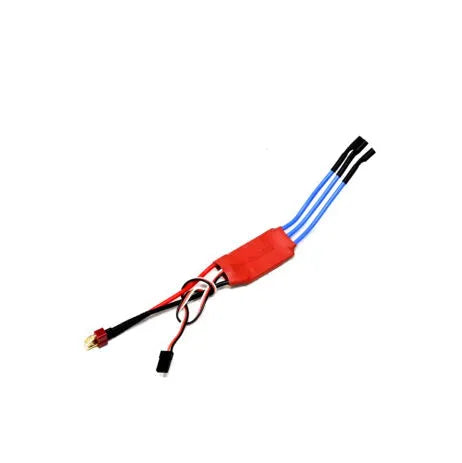

The SimonK 30A BLDC ESC is a high-performance electronic speed controller designed for brushless DC motors. As a reliable BLDC ESC, it provides precise control, making it ideal for drone and RC airplane applications. Whether you’re a hobbyist or a professional, the SimonK 30A ESC ensures smooth and efficient operation. With its advanced features and robust firmware, this 30A BLDC ESC is a popular choice for DIY enthusiasts and custom projects.
Key Features
- High Efficiency: Ensures rapid motor response and precise control.
- Easy Setup: Pre-installed connectors for quick installation.
- Optimized Firmware: SimonK firmware for superior throttle response.
- Lightweight Design: Ideal for RC drones, planes, and DIY robotics.
- Advanced Features: Supports regenerative braking and active freewheeling.
Applications
- Perfect for remote-controlled drones and planes requiring smooth motor control.
- Used in model helicopters for precise and stable flight performance.
- Essential for RC car projects demanding accurate speed and acceleration control.
- Supports DIY projects integrating ESC BLDC Arduino and robotics applications.
Technical Specifications
| Continuous Current | 30A |
| Burst Current | 40A (for 10 seconds) |
| Input Voltage | 2-4S LiPo (7.4V to 14.8V) |
| BEC Output | 5V, 2A |
| Weight | 23g |
| Dimensions | 45mm x 24mm x 11mm |
| PWM Input | 8 kHz for throttle control |
How to Use
- Connect: Attach the ESC to the brushless motor and battery power source.
- Throttle Setup: Connect the throttle control signal wire to the receiver or flight controller.
- Polarity Check: Ensure correct wiring to avoid reverse polarity issues.
- Calibrate: Power on the transmitter at full throttle, then power on the ESC and follow the beeping signals for calibration.
- Test Run: Check motor response to throttle input in a safe environment before full deployment.
Package Includes
1 x SimonK 30A BLDC ESC Electronic Speed Controller with Connectors
Additional Resources
- Explore more collection of ESC.
- Firmware updates accessible through the SimonK developer community.
Video Tutorials
Find detailed setup and calibration videos on platforms like YouTube to guide your installation and configuration process.
Specification
| Product Specification | Value |
| Item Type | Brushless ESC |
| Model | SIMONK 30A |
| Burst Current (A) | 40 |
| Constant Current (A) | 30 |
| BEC (Y/N) | Yes (5V/2A) |
| Compatible LiPO Batteries | 2 to 3S |
| Color | Red |
| Application | BLDC Motors, Multirotors, Rc Planes, etc. |
| Length (mm) | 54 |
| Width (mm) | 24 |
| Height (mm) | 9 |
| Weight (g) | 23 |
| Shipping Weight | 0.027 kg |
| Shipping Dimensions | 10 × 10 × 5 cm |
