Transparent Robot Smart Car Chassis - 2WD Robot Chassis

Transparent Robot Smart Car Chassis is an innovative solution ideal for DIY enthusiasts and hobbyists looking to build versatile robotic smart cars. Designed for precision and efficiency, this smart car chassis with a tachometer encoder and transparent acrylic body allows visibility of internal components and is perfect for those interested in robot chassis, bot chassis, and tank tread robots.

Key Features - Transparent Robot Smart Car Chassis

• Smart car chassis with a tachometer encoder
• Transparent acrylic material for the body, allowing visibility of the internal components and workings
• Pre-drilled mounting holes for easy assembly of various components such as motors, controllers, and sensors
• Compatible with a range of microcontrollers and development boards, including Arduino and Raspberry Pi, and a 4 AA battery box (batteries not included)
• Equipped with two dual shaft motors and wheels, suitable for differential drive operations
• Includes a caster wheel for stable maneuverability

Applications

The Transparent Robot Smart Car Chassis is perfect for building chassis robot cars, 4 wheel robot chassis, and 2 wheel chassis projects. It's widely used in educational environments where prototyping and experimentation with robotics principles is needed. Its design facilitates robot chassis for line follower robots and similar applications requiring precise sensor integration.

Technical Specifications

How to Use - Transparent Robot Smart Car Chassis

• Assemble the car by attaching the motors to the pre-drilled mounts on the acrylic body using the provided screws and nuts.
• Attach the motors and wheels to the designated points on the chassis.
• Connect the wires from the motors to your chosen controller, like Arduino.
• Set up tracing or obstacle-detection functionality by integrating compatible sensors onto the chassis.
• Install the caster wheel at the designated position for tri-supported mobility.
• Attach a microcontroller or development board using the provided mounting holes, and program it to manage sensors and actuators on the chassis.
• Ensure all components are securely fitted before operation; test the assembled robot on different surfaces to assess movement and sensor interaction.

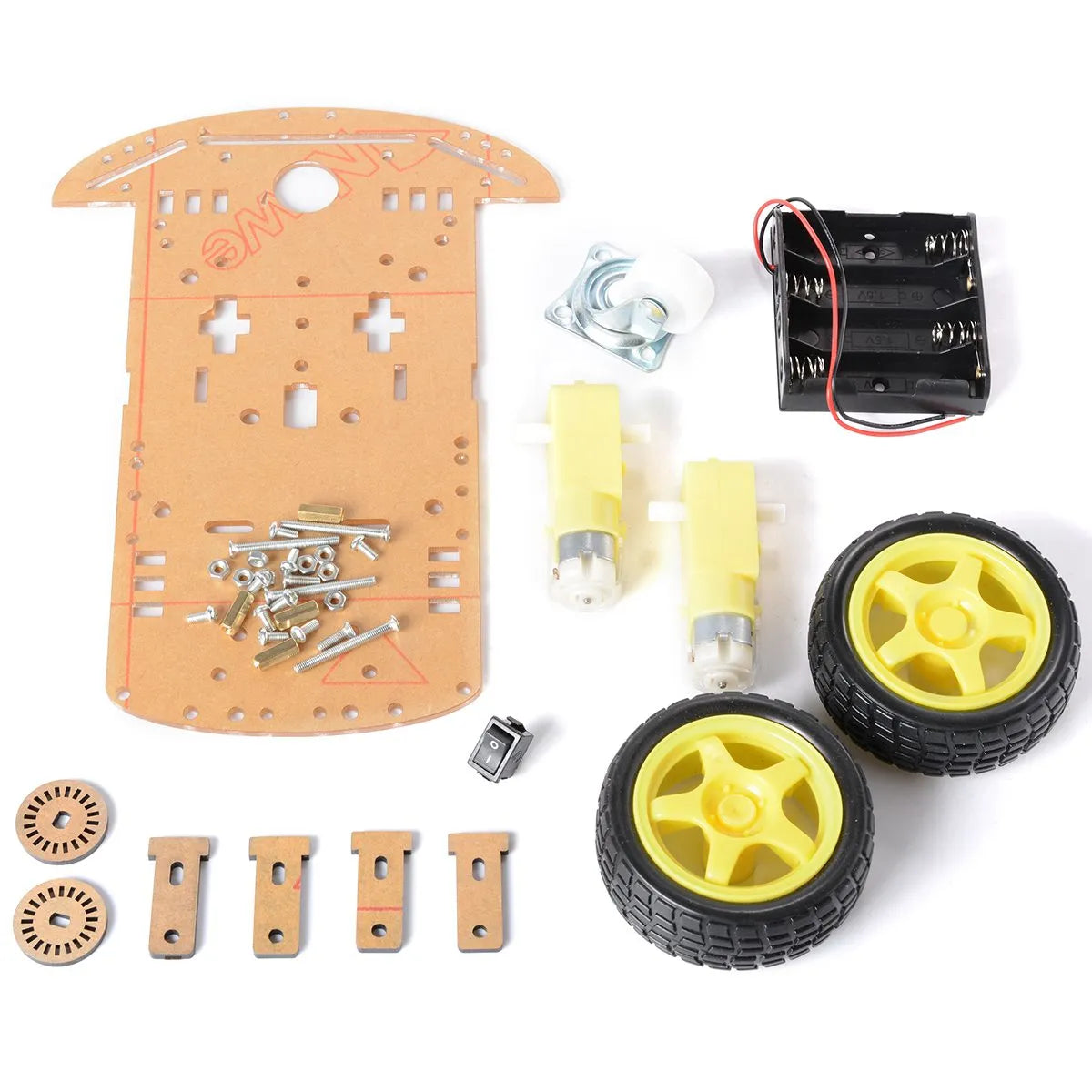

Package Includes

• 1 x Car chassis
• 2 x BO Gear motor
• 2 x Car tire
• 1 x Universal wheel
• 2 x Speed encoder
• 1 x Battery box (batteries not included)
• All necessary screws and nuts
