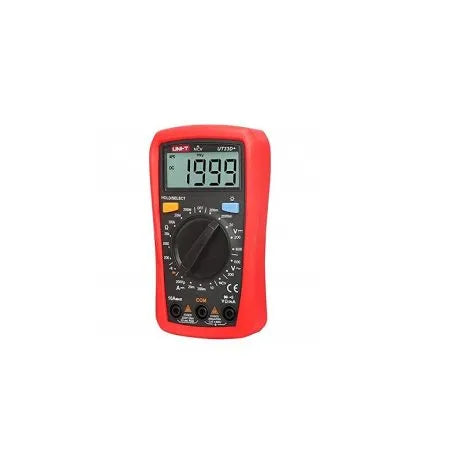

UNI-T UT33D+ Pocket Digital Multimeter The UNI-T UT33D+ Pocket Digital Multimeter offers reliable measurements designed for residential and commercial electricians, as well as heating and air conditioning technicians. This compact digital multimeter is rugged yet lightweight, designed to withstand years of daily use. As part of the new generation UT33B+ series, the product sets high performance standards for entry-level digital multimeters, ensuring safe operation in a CAT II 600 V environment. It is versatile and suitable for both professional electricians and hobbyists, providing accurate readings for a range of measurements and making it ideal for troubleshooting electrical circuits and devices. Additionally, this digital multimeter is competitively priced, making it one of the best multimeter options available for both seasoned professionals and DIY enthusiasts.
Key Features - UNI-T UT33D+ Pocket Digital Multimeter
- Maximum Voltage: 600 V
- Continuous Current: 10 A
- Resistance: 200 Mohm
- Capacitance: 2 mF
- Compact and portable size for easy handling and storage
- Clear LCD display for easy reading of measurements, with a maximum display of 1999 (3 1/2 digits)
- Ergonomically designed rotary switch
- Loud buzzer for alerts
- 2m drop proof
- Auto power off and backlight off
- NCV test capabilities
- Automatic range selection for more user-friendly operation
- Safety features include overload protection and a robust casing
- Includes a diode test and continuity buzzer for rapid assessment
- Comes with a protective sleeve to enhance durability
Applications
The UNI-T UT33D+ pocket multimeter is perfect for diverse applications such as electrical troubleshooting and device installation. This digital tester comes in handy for troubleshooting in residential settings, HVAC system maintenance, and general electrical maintenance tasks. The multimeter's compact design makes it ideal for DIY enthusiasts working on experiments and projects in tech labs and workshops.
Technical Specifications
| Product Specification | Value |
| Voltage Rating (V) | 600 |
| DC Voltage Range | 200mV/2000mV/20V/200V/600V |
| AC Voltage Range | 200V/600V |
| Continuous Current (A) | 10 |
| DC Current Range | 2000μA/20mA/200mA/10A |
| Resistance Range | 200Ω/2000Ω/20kΩ/200kΩ/20MΩ |
| Capacitance | 2mF |
| Battery Type | Uses a 3V battery |
| Operating Temperature (°C) | 0 to 40 |
| Storage Temperature (°C) | -10 to 50 |
| Length (mm) | 135 |
| Width (mm) | 78 |
| Height (mm) | 47.8 |
| Weight (g) | 204 |
How to Use - UNI-T UT33D+ Pocket Digital Multimeter
- Install the battery according to instructions and power on the device using the main switch, which features an ergonomic rotary design.
- Select the appropriate measurement mode (voltage, current, resistance) by turning the function switch to the desired measurement type.
- For accurate reading, ensure correct contact is made with testing points by inserting the test probes into the appropriate jacks (COM and VΩmA for most measurements).
- Utilize NCV function by holding the multimeter near a live wire to detect voltage.
- Consult the backlight option in low-light environments.
- After use, switch off the multimeter to conserve battery life. Always follow safety precautions while using the multimeter, particularly when measuring high voltages or currents.
Package Includes
1 x UNI-T UT33D+ Pocket Digital Multimeter
Additional Resources
Learn more about MultimeterExplore our Digital Measuring Device Collection
Video Tutorials
Specification
| Product Specification | Value |
|---|---|
| Item Type | Multimeter |
| Model Type | Pocket Digital Multimeter |
| Voltage Rating (V) | 600 |
| Continuous Current (A) | 10 |
| Capacitance | 2mF |
| Battery Type | 2 AAA 1.5V |
| Operating Temperature (°C) | 0 to 40 |
| Storage Temperature (°C) | -10 to 60 |
| Length (mm) | 135 |
| Width (mm) | 78 |
| Height (mm) | 47.8 |
| Weight (g) | 204 |
| Shipping Weight | 0.31 kg |
| Shipping Dimensions | 14.5 × 11 × 5.7 cm |
