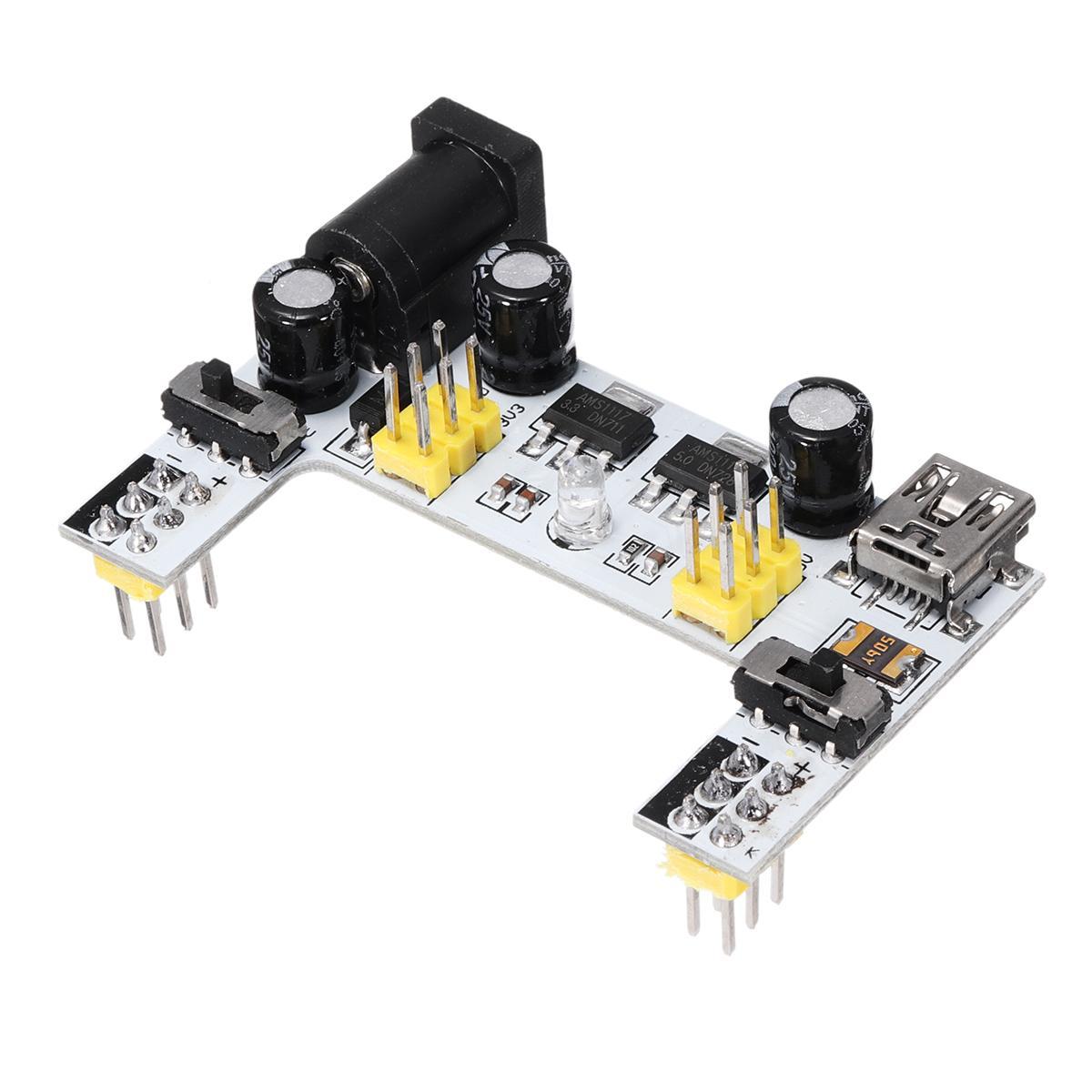

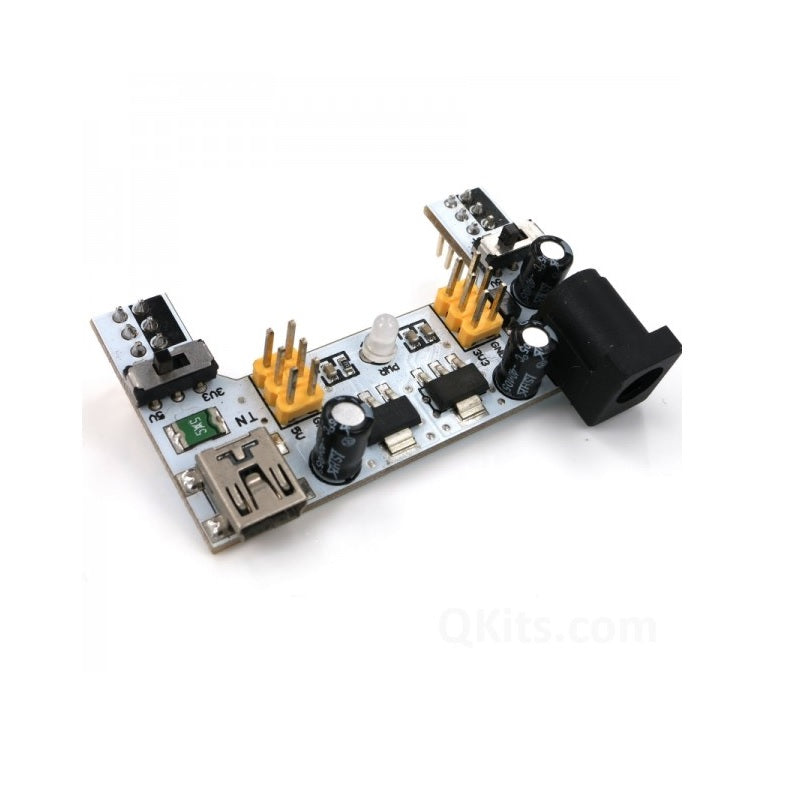

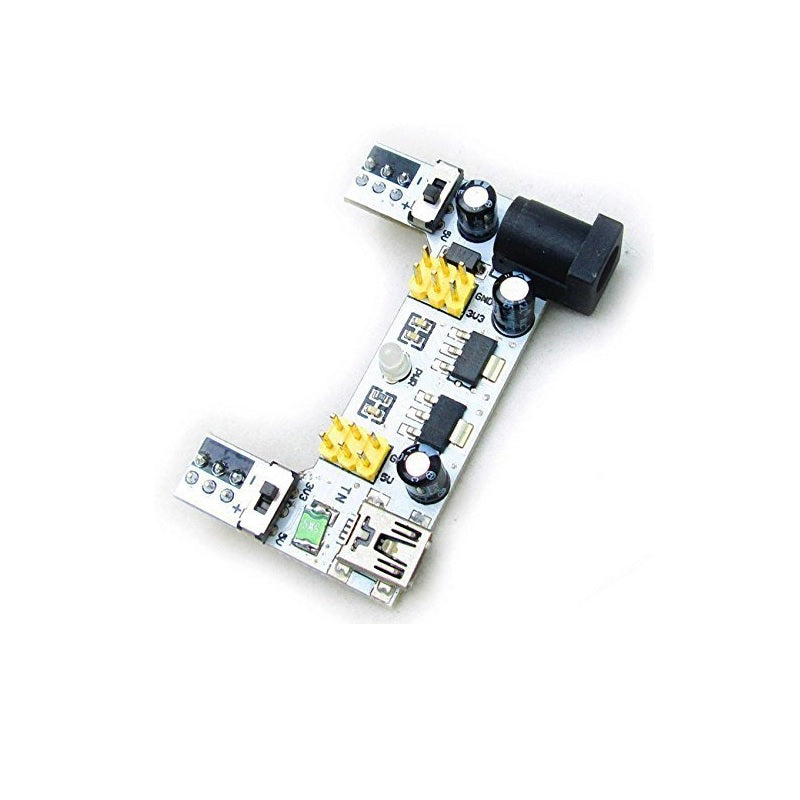

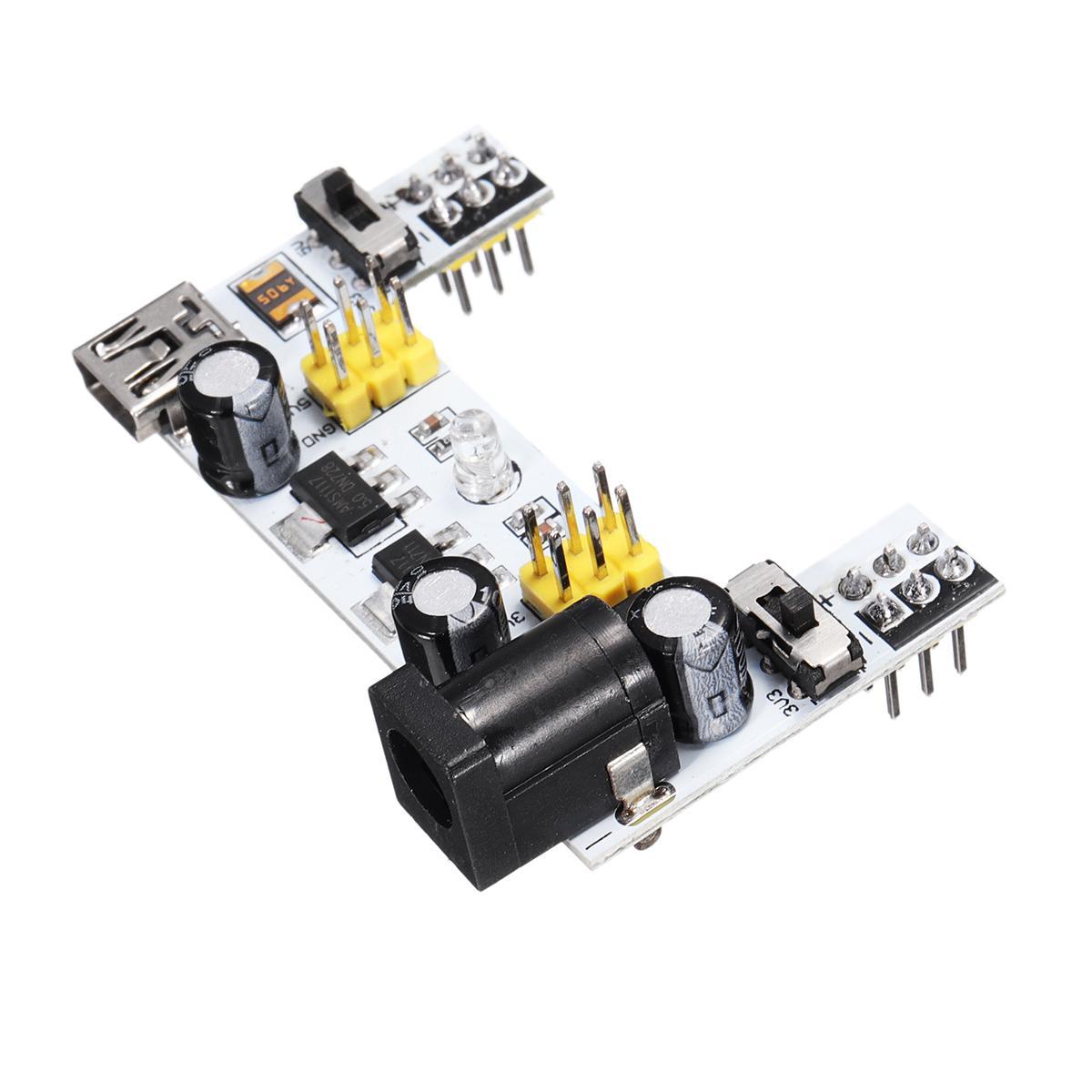

XD-42 5V/3.3V Dual Channel Solderless Breadboard Power Supply Module The XD-42 is a truly transformative tool for DIY enthusiasts and professional electronics engineers. This indispensable module simplifies powering breadboards, facilitating seamless voltage switching between 5V and 3.3V. It features a compact design with safety elements built-in, including polarity reversal protection and a locking on/off switch. Akin to a micro power module and sypm, its portable nature replaces the need for larger power sources, streamlining your electronics projects.

Key Features - XD-42 5V/3.3V Dual Channel Breadboard Power Supply Module

• Locking On/Off Switch
• Green LED Power Indicator
• Voltage Swapping Switch on both rail Channel

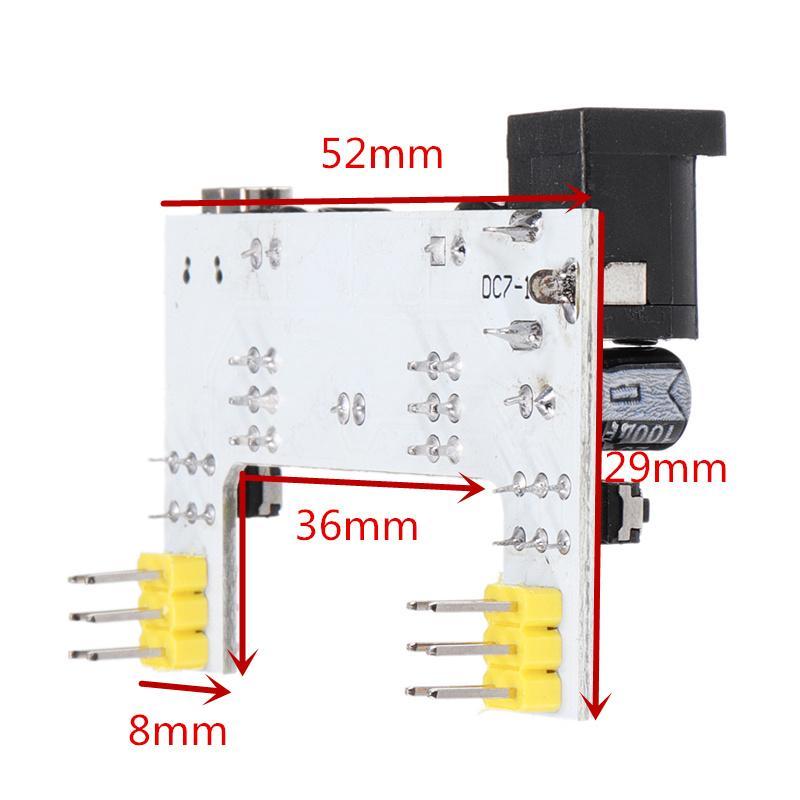

• Compact Portable Size for Easy Breadboard Installation
• Concave Design that Preserves Breadboard Area
• Polarity Reversal Safety
• Easy integration: Designed to fit directly onto a standard breadboard without any soldering
• Convenient power input options: Supports common power sources such as USB or an external power adapter
• Built-in ON/OFF switch for simple power management
• LED indicators for power output status display

Applications

The XD-42 is an excellent tool for diverse applications. It excels as a DC step down converter in hobbyist projects, allowing seamless circuit experimentation. For professionals, it ensures rapid prototyping and educational settings benefit from its risk-reduction features, which foster learning in circuit design. Furthermore, it functions efficiently as an amplifier module in various electronic environments.

Technical Specifications

How to Use - XD-42 5V/3.3V Dual Channel Solderless Breadboard Power Supply Module

• Connect the module to your breadboard ensuring proper alignment.

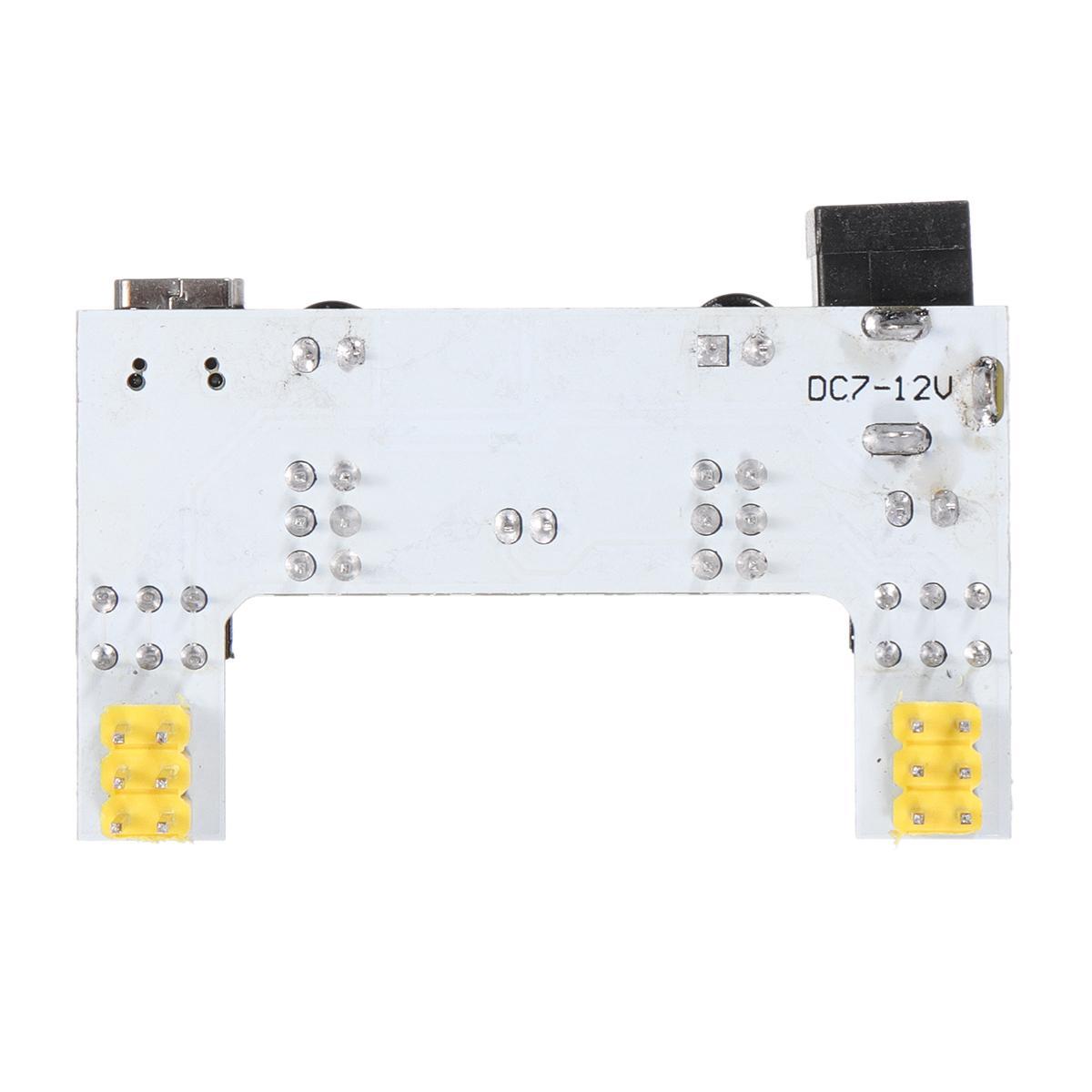

• Confirm input voltage is within 6.5V – 12V range using a mini USB or DC jack.
• Toggle the locking on/off switch to manage power flow.
• Select desired voltage (3.3V or 5V) using the voltage swapping button.
• Utilize polarity protection by correctly orienting the module on the breadboard.
• Power the module via USB cable or a power adapter, indicated by the LED lights.
• Start your project by wiring components according to your requirements.

Package Includes

1 x XD-42 5V/3.3V Dual Channel Solderless Breadboard Power Supply Module
