Description

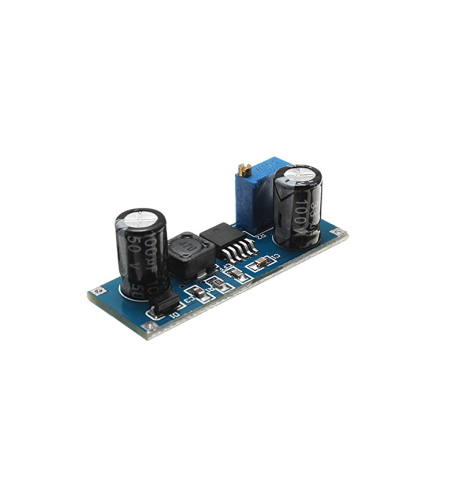

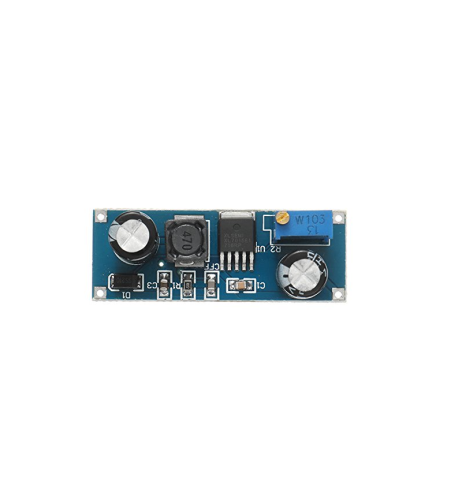

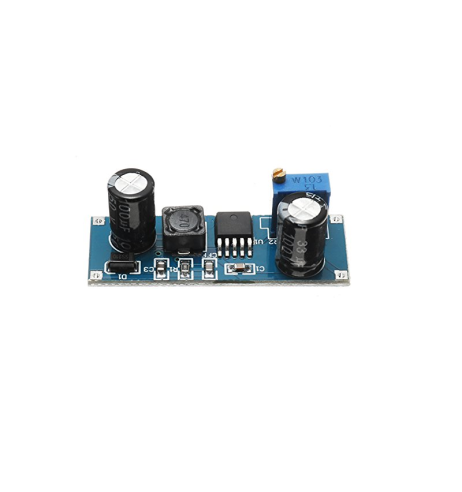

XL7015 DC-DC Step Down Adjustable Power Supply Buck Module offers a versatile and efficient way to convert a higher voltage to a more required lower voltage. This LM2596 DC DC Buck Converter delivers exceptional performance with an input range of 5V to 80V and an adjustable output from 1.2V to 24V DC, efficiently supporting a load current of up to 0.8A. Its minimal heat generation and high efficiency make it a popular choice for users needing precise DC voltage step down, providing reliable operation across various applications.
Key Features - XL7015 DC-DC Step Down Adjustable Power Supply Buck Module
- Input Voltage Range: 5V-80V DC
- Output Voltage Range: 1.2V-24V DC Adjustable
- Output Current: 0-0.8A
- High Efficiency up to 90%
- Low heat generation
- Compact size, suitable for various projects
- Built-in Thermal Shutdown Function
- Built-in Over-temperature Protection
- Built-in Current Limit Function
- Built-in Output Short Protection
- Excellent Line and Load Regulation
- Switching Frequency: 180 kHz
- Input Under-voltage Lockout
Applications
This buck converter module is ideal for applications requiring a reduction in voltage from source to demand. It's perfect for powering portable instruments, telecom equipment, and industrial systems. The module step down capabilities suit embedded systems, DIY electronics, and robotics, making it a reliable buck regulator module for customized projects.
Technical Specifications
Product Specification | Value |
Input Voltage (VDC) | 5 ~ 80 |
Operating Voltage (VDC) | 1.2 ~ 24 |
Max Output Current (mA) | 800 |
Switching Frequency | 180 kHz |

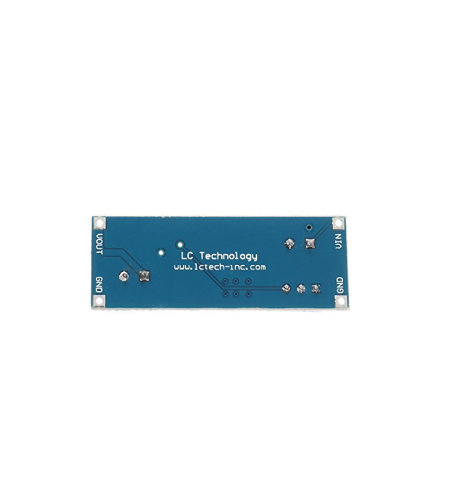

How to Use - XL7015 DC-DC Step Down Adjustable Power Supply Buck Module
- Connect the input voltage source to the input terminal, ensuring the voltage is within the specified input range.
- Connect the load to the output terminal.

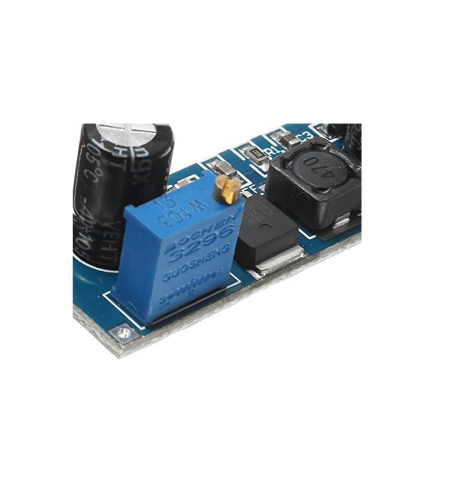

- Adjust the "voltage potentiometer" to achieve the desired output voltage using a multimeter for precise measurement.
- Use a multimeter to verify the output voltage and current settings.
- For LED constant current driving, short the output and adjust the "current potentiometer" to set the required operating current.
- Ensure all connections are secure and insulated properly to prevent short circuits.
- Monitor the output using appropriate test equipment for correct voltage and current delivery.
Package Includes
- 1 x XL7015 DC-DC Step Down Adjustable Power Supply Buck Module
Additional Resources
Learn more about Buck ConvertersExplore our XL7015 Collection
Video Tutorials
Specification
Product Specification | Value |
Operating Voltage (VDC) | 1.25 ~ 20 |
Max Output Current (mA) | 800 |
Length (mm) | 44 |
Width (mm) | 16 |
Height (mm) | 10 |
Weight (g) | 10 |
Shipping Weight (g) | 15 |
Shipping Dimensions (L x W x H) mm | 50 x 20 x 10 |
