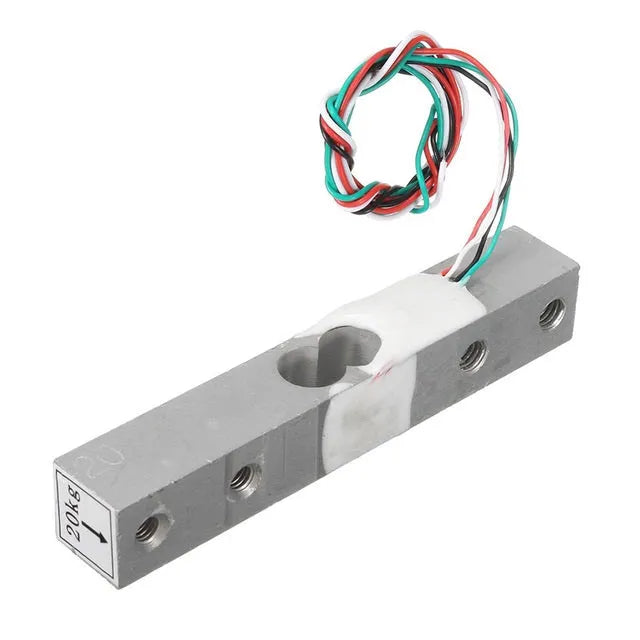

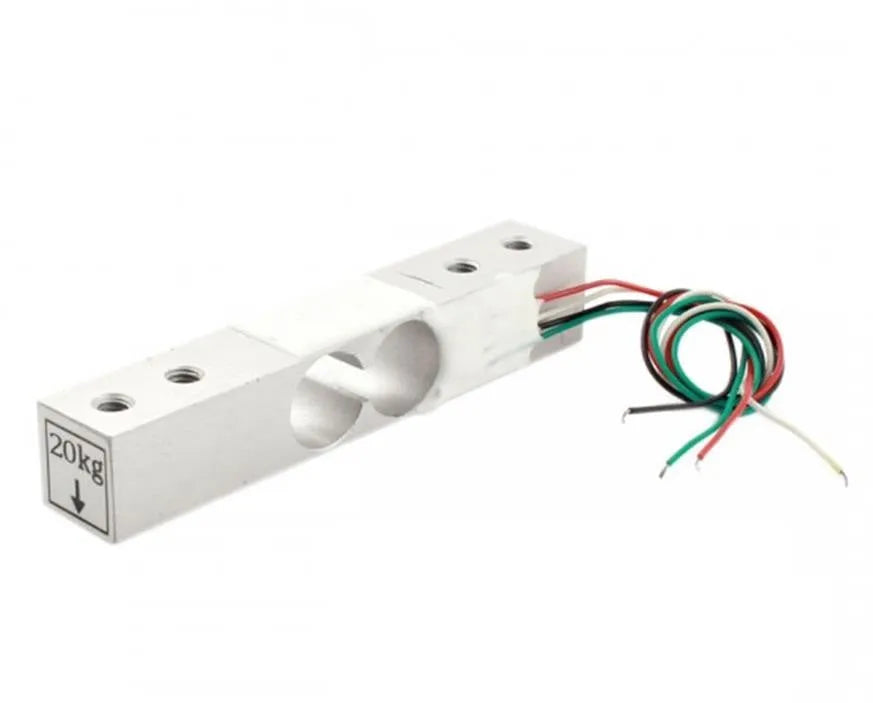

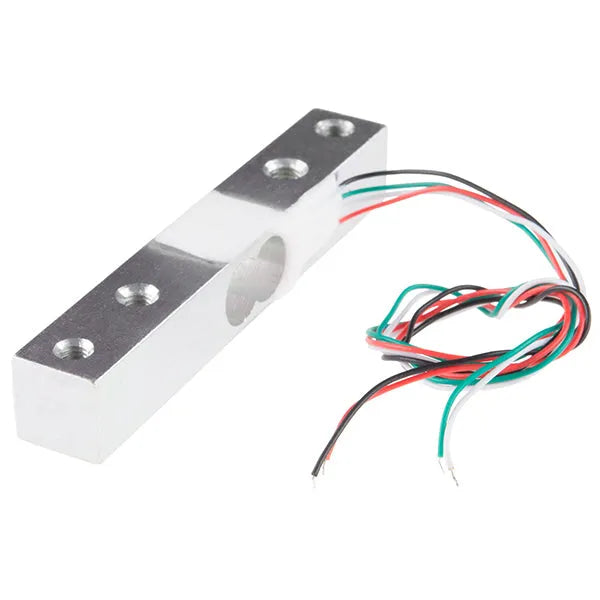

YZC-133 20kg Load Cell Sensor for Electronic Weighing Scale

YZC-133 Weighing Load Cell Sensor 20kg For Electronic Weighing Scale: Discover enhanced accuracy and reliability with our YZC-133 load cell sensor, a top choice for precision measurement needs. This sensor excels in transforming pressure into electrical signals for precise measurement. A load cell sensor designed for various electronic weighing applications, it supports a rated load of 20kg. Constructed with durable materials ensures long-lasting performance, making it a standout in load measurement technology with strain gauge load cell capabilities.

Key Features - Load Cell

• Rated Load: 20Kg
• Rated Output: 1.0 ±0.15mV/V
• Zero Output: ±0.1mV/V
• Creep: 0.03%F.S./30min
• Input Impedance: 1115±10% Ω
• Compatible with various electronic weighing applications.
• Compact and durable construction suitable for different environments.

Applications

The YZC-133 weighing load cell sensor finds extensive use in load sensor and strain gauge technology. This sensor is crucial for electronic weighing scales in grocery stores, industrial inventory tracking, and precise experimental setups in laboratories. Moreover, it suits robotics and automated systems, ensuring reliable performance where calibration of load cells is critical.

Technical Specifications

How to Use - Load Cell

• Connect the sensor to your weighing device or microcontroller using the provided wires, ensuring correct polarity: Red+ and Black- for input, Green+ and White- for output.
• Calibrate the sensor according to your equipment’s requirements to ensure accurate measurements.
• Secure one end of the sensor using screws through the provided holes, leaving the other end floating.
• Protect the sensor setup from forces directly on the white plastic cover to ensure durability.
• Regular maintenance and calibration are recommended for ongoing accuracy and optimal performance.

Package Includes

1 x YZC-133 Weighing Load Cell Sensor 20kg For Electronic Weighing Scale.
