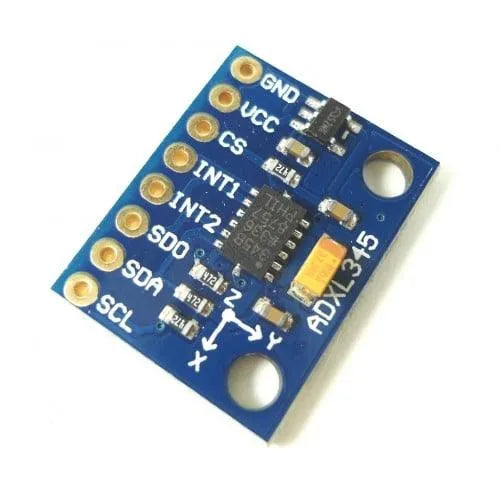

ADXL345 Triple Axis Accelerometer Module - High Resolution Sensor

ADXL345 Triple Axis Accelerometer Board is a feature-rich device ideal for measuring acceleration in various applications. With advanced features like free-fall detection, tap/double tap detection, and ultra-low power consumption, this accelerometer is the perfect choice for mobile and handheld devices. Explore its usage in Arduino projects to measure both static and dynamic accelerations effectively. Its wide temperature range makes it suitable for demanding environments, ensuring your projects benefit from reliable performance.

Features: ADXL345 Accelerometer

• 13-bit resolution for precise measurement
• Supports I²C and SPI communication
• Selectable measurement ranges of ±2g, ±4g, ±8g, and ±16g
• Ultra-low power consumption, perfect for battery-powered devices
• Activity and inactivity sensing, with interrupt output pins
• Free-Fall and Tap detection functionalities
• Wide operational temperature range: -40°C to +85°C
• 10,000 g shock survival capability
• User-selectable resolution modes
• Integrated 32-level FIFO buffer for data management

Applications

The ADXL345 sensor is versatile with applications ranging from gaming, industrial instrumentation, medical devices, to personal navigation devices. For DIY enthusiasts, using it in Arduino setups maximizes its sensor capabilities. Benefit from adxl345 arduino projects that enhance pointing devices or protect hard disk drives from damaging shocks.

Specifications

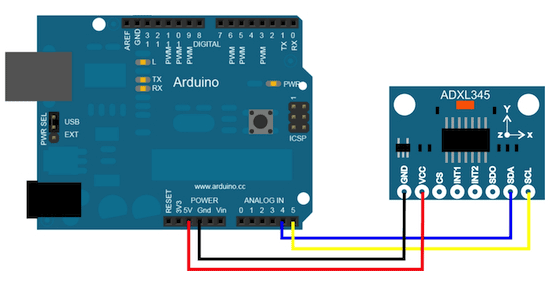

Interfacing Circuit

The ADXL345 can be easily integrated into your projects using either I²C or SPI interfaces. Ensure proper pin connections and configurations for accurate data capture.

How to Use

The ADXL345 accelerometer is easy to integrate into your project. Connect it using I2C or SPI interfaces conforming to the host microcontroller's requirements. For adxl345 price options, consult your supplier for a suitable offer.

Package Includes

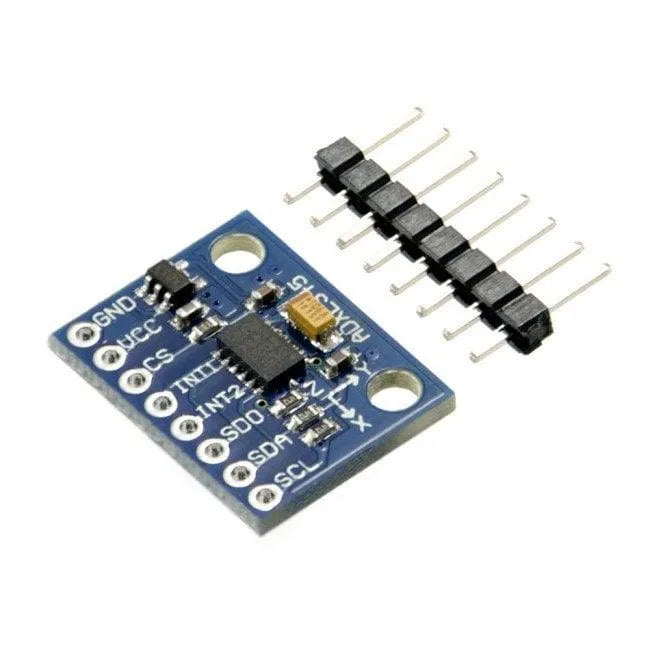

• 1 x ADXL345 Accelerometer Triple Axis Board

Additional Resources

• Download Datasheet
• Learn more about ADXL345
• Explore our sensors-modules Collection
• Explore our imu Collection

Videos Tutorial

Watch the tutorial video for setup and configuration instructions:
