Description

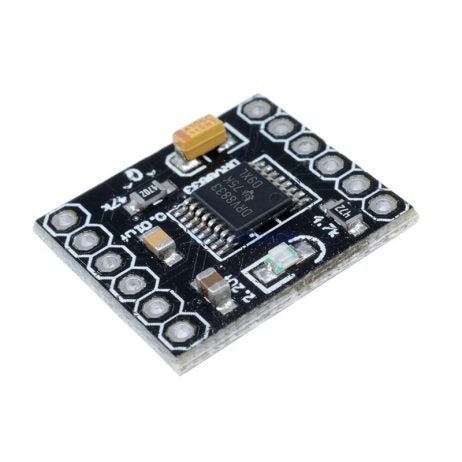

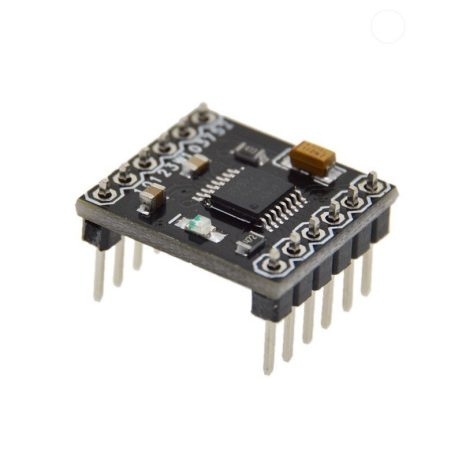

DRV8833 2 Channel DC Motor Driver is a powerful solution designed for bidirectional control of two brushed DC motors or a bipolar stepper motor, making it suitable for mobile robots. Operating at a voltage range of 2.7 V to 10.8 V, it provides a continuous output current of 1.2 A per channel and can handle peak currents up to 2 A per channel for short periods. This makes it exceptionally well-suited for small to medium-sized motors that require low voltage yet effective operation. The L298N and L293D motor driver alternatives are also popular in similar applications, offering varied features for DC drive motor speed control.
Key Features - DRV8833 2 Channel DC Motor Driver
- Dual-H-Bridge motor driver
- Operates at 2.7 V to 10.8 V
- 1.2 A continuous current per motor
- Peak current handling of 2 A per motor
- Compatible with 3V and 5V inputs
- Parallels outputs for increased current capacity
- PWM control compatibility for speed adjustment
- Over-voltage and thermal protection
- Overcurrent protection and thermal shutdown
- Reverse voltage protection
- Current limiting by optional resistors
Applications
The DRV8833 is perfect for applications requiring dual motor control, such as driving two DC motors in a small robot or controlling a bipolar stepper motor for precision tasks. Its compatibility with L298N, L293D, and stepper motor drivers makes it versatile for small robotics projects and DIY electronics. Its compact size ensures it's suitable for educational and hobbyist projects where space is limited.
Technical Specifications
Product Specification | Value |
Model Series | DRV Series |
Operating Voltage | 2.7 to 10.8VDC |
Current Rating | 1.2 to 2A |
Standby Current | 0.1 µA (typically) |
Width | 18mm |
Height | 8mm |
Weight | 5g |
How to Use - DRV8833 2 Channel DC Motor Driver

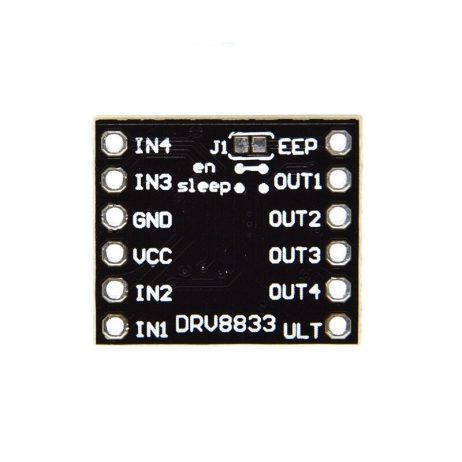

- Identify the input pins compatible with 3V and 5V logic levels. Connect them to your microcontroller or control system.
- Connect your DC motors to the output terminal determined by the dual H-bridge configuration of the DRV8833.
- Ensure proper power supply within the operating voltage range (2.7V-10.8V) for optimal performance.
- Utilize PWM signals on the input pins to control the speed and direction of the motors.
- Optionally, include sense resistors if you require current limiting functions in your circuits.
- Follow schematic guidelines for reverse-voltage protection and reference the datasheet for detailed circuit diagrams and connection tips.
Package Includes

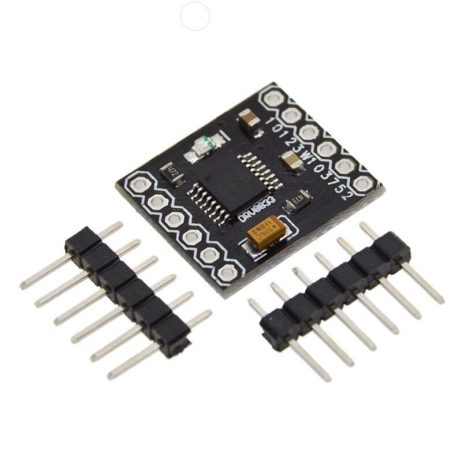

- 1 x DRV8833 2 Channel DC Motor Driver Module
- 12 x Pin Headers
Additional Resources
Download DatasheetLearn more about Motor Driver
Explore our motors-drivers-pumps-actuators Collection
Video Tutorials
Specification
Product Specification | Value |
---|---|
Model Series | DRV Series |
Voltage Rating (V) | 2.7 to 10.8VDC |
Current Rating (A) | 1.2 to 2 |
Width (mm) | 18 |
Height (mm) | 8 |
Weight (g) | 5 |
Shipping Weight | 10 |
Shipping Dimensions | 90x70x20 |
