Description

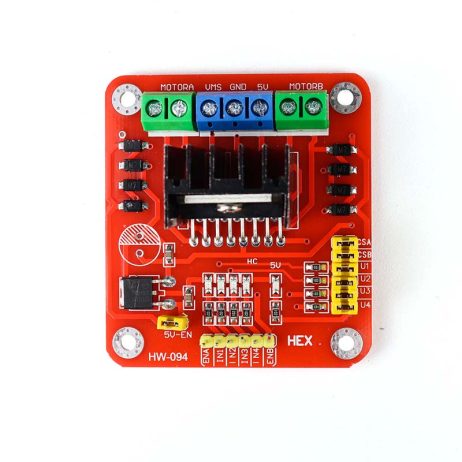

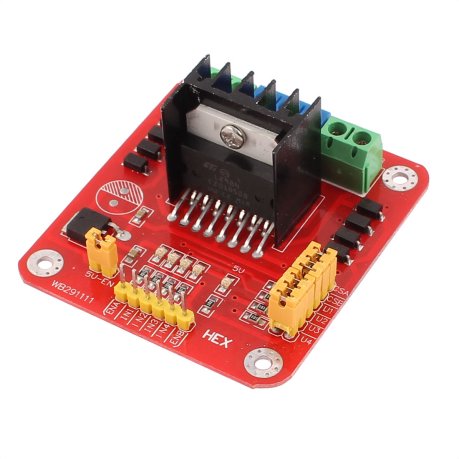

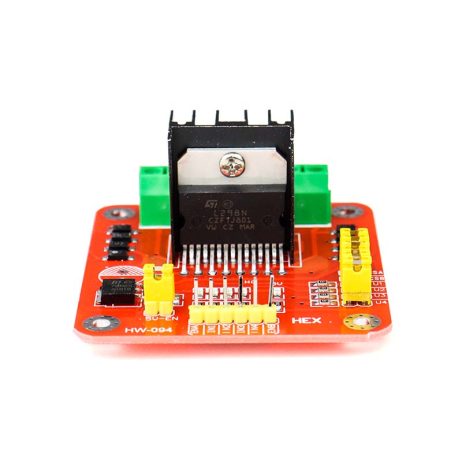

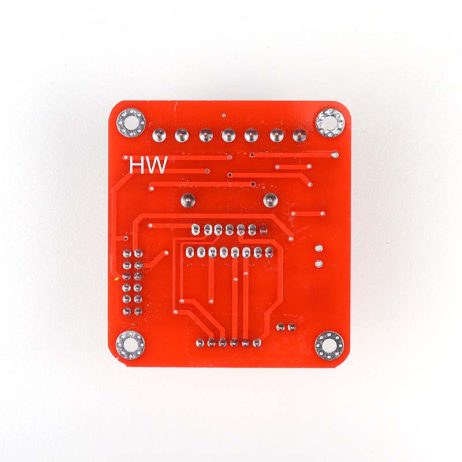

L298N Motor Driver The L298N Dual H Bridge DC/Stepper Motor Driver Controller Module is a highly versatile and compact module designed to control two DC motors or one stepper motor, leveraging the L298N IC's capabilities. This l298n motor driver offers high voltage and current dual full-bridge control, making it an excellent choice for applications requiring robust l298 motor driver solutions.
Key Features - L298N Motor Driver
- Dual H-Bridge driver capability.
- Maximum motor supply voltage: 46V.
- Maximum output current: 2A per channel.
- Drives two DC motors bi-directionally or one stepper motor.
- Features over-temperature protection for reliability.
- On-board 5V regulator required when the supply voltage is above 7V.
- Direct control through microcontroller pins.
Applications
Ideal for robotics and automation systems, the L298N motor controller perfectly suits motorized toys and CNC machines. It's a fantastic choice for home automation systems using motor controls, thanks to its simplicity and reliability.
Technical Specifications
Product Specification | Value |
Driver Model | L298N |
Driver Type | Dual H-Bridge |
Motor Voltage | 5V to 35V |
Output Current | 2A per channel, with a peak of 3A. |
Logic Voltage | 5V |
Built-in 5V regulator | Yes |
Signal Input Voltage | 3.3V to 5V |
Control Mode | PWM |
Dimensions | Typically around 43mm x 43mm x 27mm |
How to Use - L298N Motor Driver
- Connect the motor to the screw terminal block labeled OUT1 and OUT2 for one motor, and OUT3 and OUT4 for another if using two motors.
- Supply power to the module via the screw terminal block labeled as “+” and “-”.
- Connect the control pins: IN1, IN2 for motor 1; IN3, IN4 for motor 2; and use PWMA and PWMB for speed control through PWM signals.
- If using a power supply greater than 12V, use the onboard jumper to enable the 5V regulator.
- Connect the ENA and ENB pins to control the speed of the motors through the PWM signal (typically from a microcontroller).
- Test the module using simple code on an Arduino (or similar microcontroller) sketch to ensure connections and motor control functionality.
Package Includes
1 x L298N Dual H Bridge DC/Stepper Motor Driver Controller Module
Additional Resources
Download DatasheetDownload Manual
Learn more about L298N
Explore our Motor Driver Collection
Video Tutorials
Specification
Product Specification | Value |
Model Series | L298N Series |
Voltage Rating (V) | 5 to 35 VDC |
Current Rating (A) | 2 per channel |
Driver IC | L298N |
Input Voltage (VDC) | 5 ~ 35 |
Supply Current (A) | 2 (peak per channel) |
Logic Voltage (V) | 4.5 to 5.5 |
Logic Current (mA) | 0 to 36 |
Output Power (W) | 20 |
Operating Temperature (°C) | -25 to 130 |
Length (mm) | 55 |
Width (mm) | 60 |
Height (mm) | 30 |
Weight (g) | 35 |
Shipping Weight | 37 |
Product Dimension L×W×H | 55×60×30 |
Shipping Dimension | 60×65×40 |
