Description
NEO-M8N GPS with Compass for Pixhawk offers exceptional performance and highly effective RF integration, making it a top choice among the NEO-M8 configurations. With a sophisticated architecture designed to suppress interference, it ensures peak efficiency even in challenging GNSS environments. The NEO form factor ensures seamless migration from previous NEO generations, providing a robust, future-proof solution. It includes a built-in compass, making it ideal for outdoor navigation and applications where satellite positioning is critical. This modul GPS is comparable to the neo 6m gps module and the neo6m gps module, becoming indispensable for precise navigation tasks.
Key Features - NEO-M8N GPS with Compass for Pixhawk

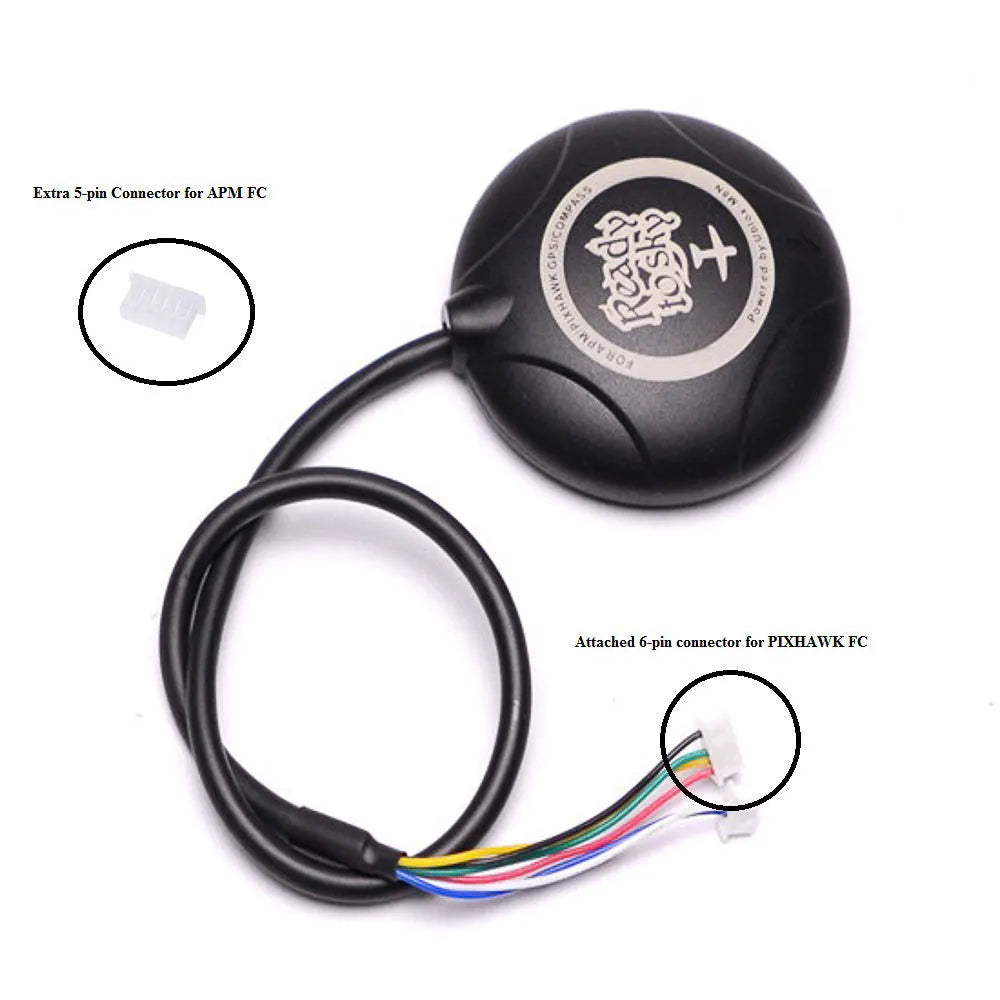

- Easy connection to PIXHAWK with a 6-pin connector.
- Advanced 72-channel M8 engine supportive of Galileo-ready E1B/C.
- High navigation update rate with speed capacity up to 18 HZ.
- Efficient acquisition with cold starts at just 26 seconds.
- Built-in onboard compass for enhanced directional accuracy.
- Integrates Galileo, GPS, QZSS, GLONASS, and BeiDou protocols.
- Features AssistNow GNSS support for improved operation.
- Extra connector compatible with both Pixhawk and APM flight controllers.
- Fast satellite acquisition and cold start.
- Low power consumption and compact design, ideal for UAVs.
Applications
The NEO-M8N GPS module suits diverse applications demanding accurate navigation. It's perfect for drones and UAVs due to quick satellite lock and multiple reception capabilities. The onboard compass aids rapid orientation adjustments, making it a reliable choice for projects utilizing module GPS arduino, and is also beneficial for arduino and gps module initiatives.
Technical Specifications
| Product Specification | Value |
| Item Type | GPS Module |
| Model Name | Ublox NEO-M8N |
| Receiver Type | 72-channel Ublox M8 engine |
| Main Chip | Ublox NEO-M8N |
| Input Voltage (V) | 3.3V to 5V |
| Current Consumption | Typically ~30mA |
| Position Accuracy (Meter) | 2.5 CEP |
| Acceleration (g) | <4 |
| Navigation Update Rate | up to 18 HZ |
| Operating Temperature (°C) | -45 to 105 |
| Tracking Sensitivity (dBm) | -167 dBm |
| Reacquisition Sensitivity (dBm) | -160 dBm |
| Co-Ordinate System | WGS-84 |
| Avg Cold Start Time (s) | 26 |
| Warm Start Time (s) | 25 |
| Hot Start Time (s) | 1 |
| Boot Time (s) | 1 |
| Capture Time (s) | 0.1 |
| Average Maximum Altitude (m) | 18000 |
| Dimensions (L x W x H) mm | 54 x 22 |
| Weight (g) | 23 |
| Cable Length (cm) | 20 |
How to Use - NEO-M8N GPS with Compass for Pixhawk
- Ensure the 6-pin connector is properly connected to the PIXHAWK flight controller.
- Use the extra 5-pin connector for APM integration.
- Secure and mount the GPS module in a position with a clear sky view.
- Connect the power supply, ensuring the correct voltage is used.
- Set up the flight controller software to integrate GPS and compass data.
- Calibrate the compass following specific software requirements; avoid movement during calibration.
- For firmware updates, utilize internal Flash storage.
Package Includes

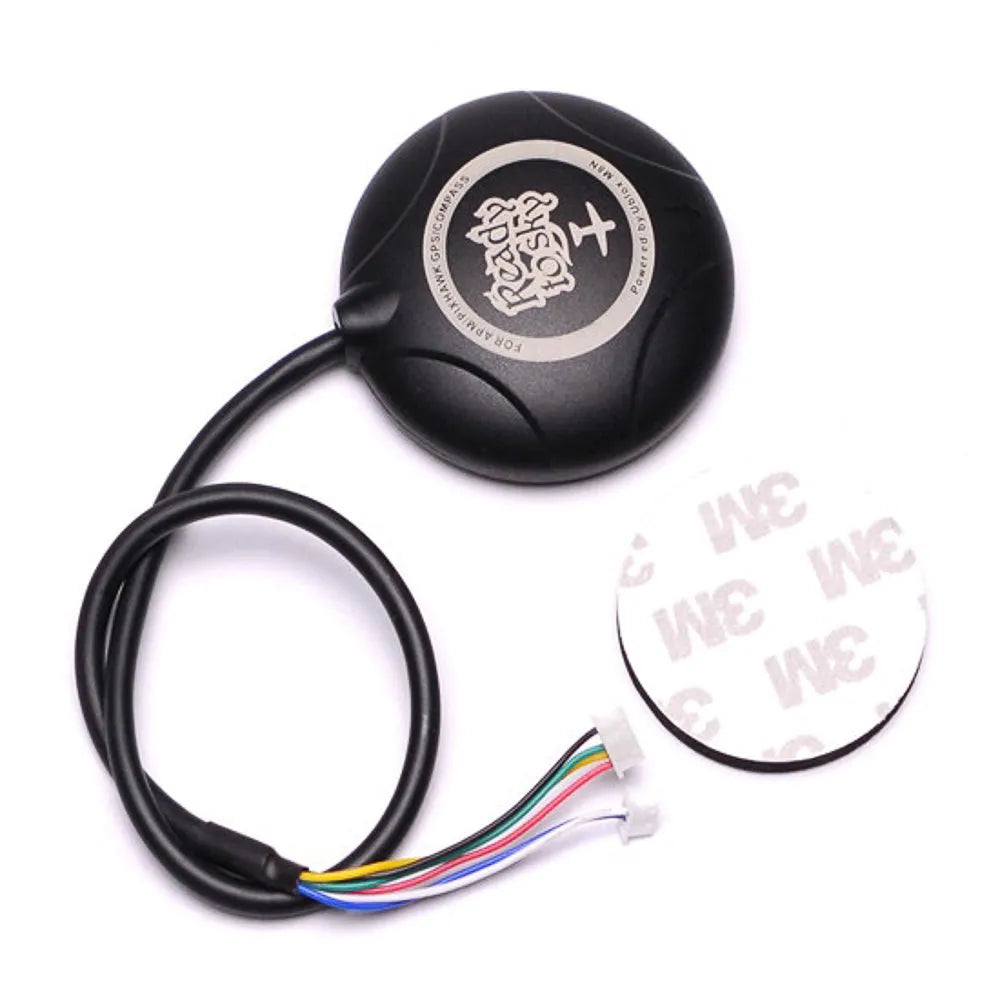

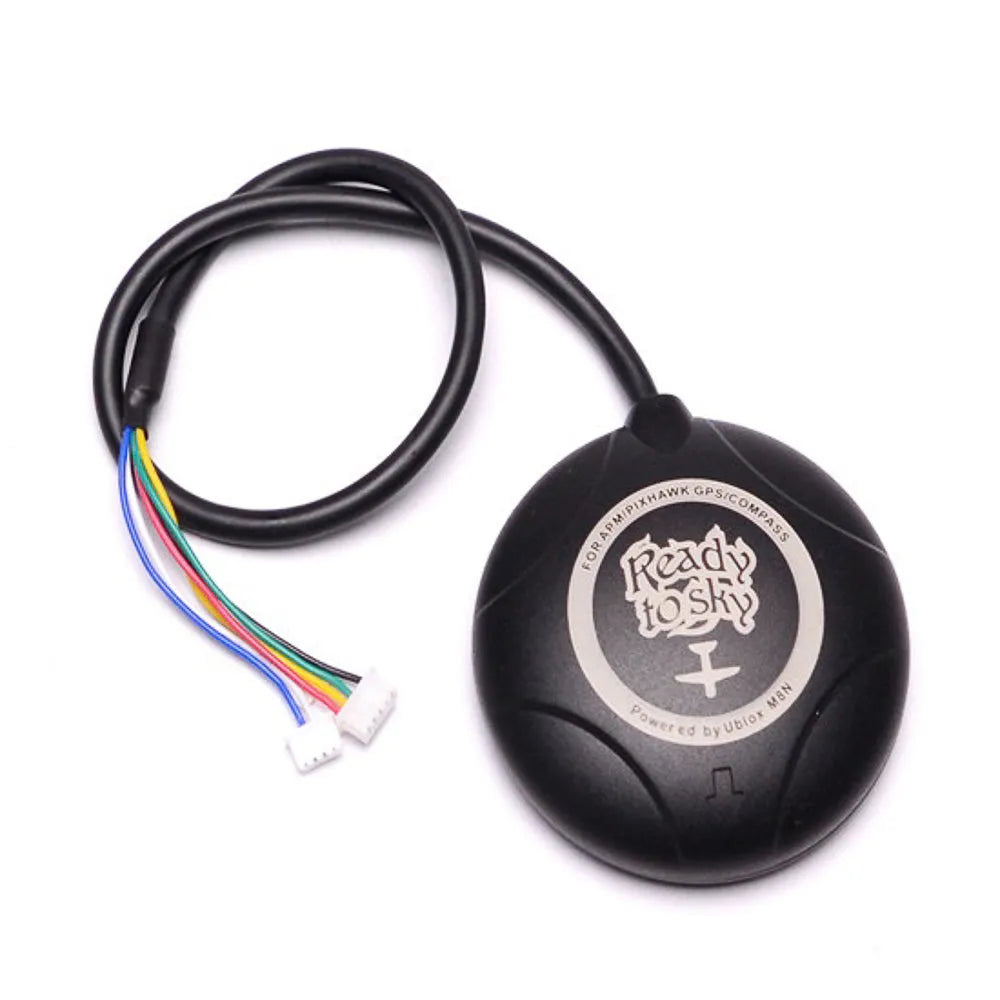

- 1 x NEO M8N GPS for Pixhawk and APM flight controller

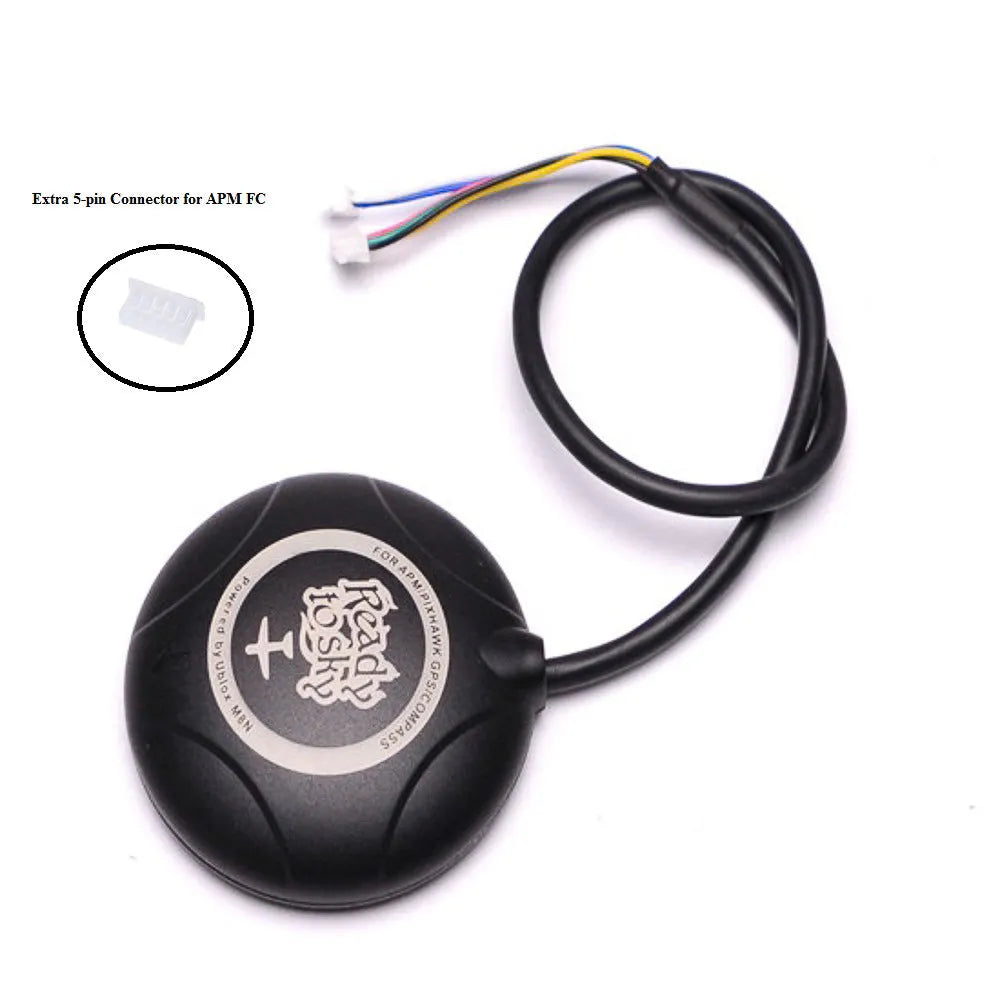

- 1 x Extra 5-pin Connector for APM FC
Additional Resources
Download DatasheetLearn more about NEO-M8N_GPS_with_Compass_for_Pixhawk
Explore our drone-parts Collection
Video Tutorials
Specification
| Product Specification | Value |
|---|---|
| Item Type | GPS Module |
| Model Name | Ublox NEO-M8N |
| Receiver Type | 72-channel Ublox M8 engine |
| Main Chip | Ublox NEO-M8N |
| Input Voltage (V) | 0.5 to 3.6 |
| Position Accuracy (Meter) | 2, 2.5 |
| Acceleration (g) | <4 |
| Navigation Update Rate | up to 18 HZ |
| Operating Temperature (°C) | -45 to 105 |
| Tracking Sensitivity (dBm) | -161 dBm |
| Co-Ordinate System | WGS-84 |
| Avg Cold Start Time (s) | 30 |
| Warm Start Time (s) | 1 |
| Boot Time (s) | 1 |
| Capture Time (s) | 0.1 |
| Average Maximum Altitude (m) | 18000 |
| Dimensions (L x W x H) mm | 54 x 22 |
| Weight (g) | 23 |
| Cable Length (cm) | 20 |
