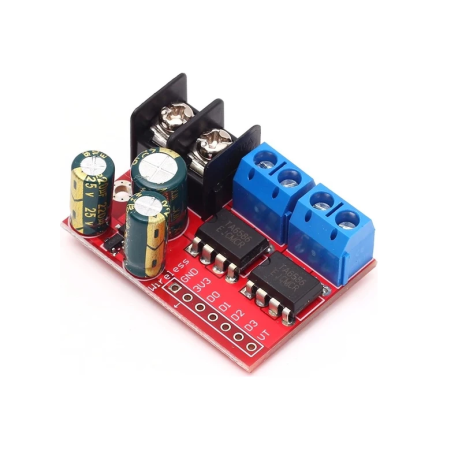

Description
TA6586 Based Motor Driver Module is an essential high-power driver designed for your DC and Stepper Motor needs. With an operating voltage range of 3 to 15VDC and providing a maximum operating current of up to 1.5A per channel, this motor driver module is tailored for efficient performance. It integrates seamlessly with Arduino and Raspberry Pi, making it a versatile choice for developers, hobbyists, and engineers. This module not only replaces the conventional l298n motor driver but also offers enhanced capabilities compared to the l293d motor driver with improved dc drive motor speed control.
Key Features - Motor Driver
- Operating Voltage: 3 - 15VDC
- Operating Current: Up to 1.5A per channel
- Compatible with Arduino and Raspberry Pi
- Heavy-Duty Screw Terminal for Supply
- Direct Connection to 433MHz Receiver
- Dual H-Bridge Motor Driver IC
- Over-temperature protection
- PWM Control for Speed Regulation
Applications
This TA6586 Based Motor Driver Module excels in a wide range of robotics and mechatronics projects. It's ideal for controlling stepper motor driver systems, and the stepper motor and driver combination is perfect for robotic vehicles. Servo driver applications in motorized toys and home appliances benefit greatly from its efficiency and versatility.
Technical Specifications
Product Specification | Value |
Driver Model | TA6586 |
Operating Voltage | 3 - 15VDC |
Operating Current | Up to 1.5A per channel |
Maximum Output Current | Up to 1.5A per channel |
Control Logic | TTL / CMOS-compatible |
Protection | Overcurrent and Thermal Protection |

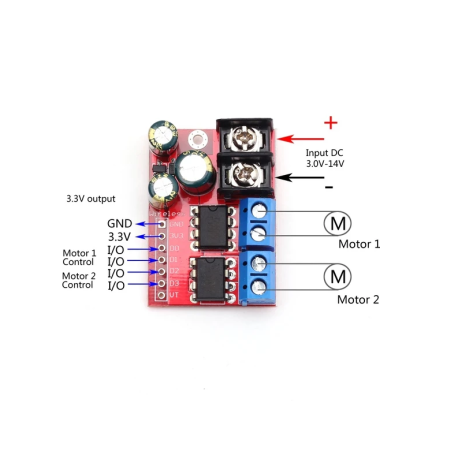

How to Use - Motor Driver
- Ensure the module is connected to a supply voltage ranging from 3-15VDC.
- Connect the motor outputs to MOTOR1 and MOTOR2, with inputs connected respectively to IN D1, IN D2, IN D3, and IN D4.
- Use suitable protection devices to avoid reverse polarity.
- Write an Arduino sketch for motor control, specifying pin number configurations without needing an additional library for the MX1919 Motor Controller.
- Use logic high or low on inputs to change motor direction and apply PWM signals to control speed.
Package Includes
TA6586 Based Motor Driver Module - 5A Two DC Motor Driver x 1
Additional Resources
Download DatasheetLearn more about Motor Driver
Explore our motor drivers Collection
Video Tutorials
Specification
Product Specification | Value |
Driver Model | TA6586 |
Width (mm) | 27 |
Height (mm) | 15 |
Weight (g) | 12 |
Shipping Weight | 16 |
Shipping Dimensions | 7 × 8 × 2 |
