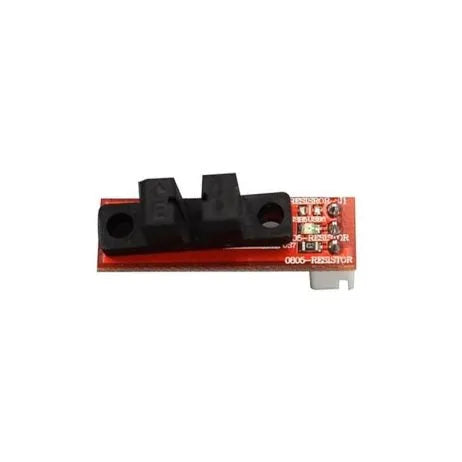

Optical Endstop Light Control Limit Optical Switch for 3D Printers

Optical Endstop Light Control Limit Optical Switch provides high precision and reliability, making it ideal for 3D printers, CNC machines, and other automated machinery. This plug-and-play optical endstop is essential for protecting equipment from exceeding its operational range, thus preventing possible damage. It serves as an optical sensor that detects the presence or absence of an object through light interruption. Unlike traditional mechanical endstops, optical endstops offer non-contact detection, minimizing wear and tear while delivering a longer lifespan and more consistent performance.

Key Features - Optical Endstop Light Control Limit Optical Switch

• Non-contact detection for reduced mechanical wear
• High precision and reliability
• Simple installation and setup
• Dimensions: 33 x 20 x 10 mm
• Weight: 25 gm
• Protects machines from damage
• Compact design, suitable for integration into various machines
• Low power consumption

Applications

For hobbyists and professionals, optical endstops, like the optical endstop switch or opto endstop, ensure precision in 3D printers and CNC machines. They provide exact positioning to protect against over-travel and damage while enhancing automation tasks in robotics and automated machinery with precise movement detection, making them a valuable component.

Technical Specifications

How to Use - Optical Endstop Light Control Limit Optical Switch

• Connect the 3-pin wire to your machine's control board, ensuring the correct orientation for signal, power, and ground connections.
• Adjust the position of the optical endstop to detect the limit of the movable parts accurately.
• Secure the optical endstop in place and align it with the moving part that will interrupt the optical path.
• Refer to the wiring diagram for detailed connection guidelines.
• Configure the equipment's firmware to recognize and respond to signals from the optical endstop.
• Test the setup to confirm the endstop detects limits correctly, making necessary adjustments for optimal performance.

Package Includes

- 1 x Optical Endstop Light Control Limit Optical Switch

- 1 x 3-pin wire

Additional Resources

Video Tutorials
