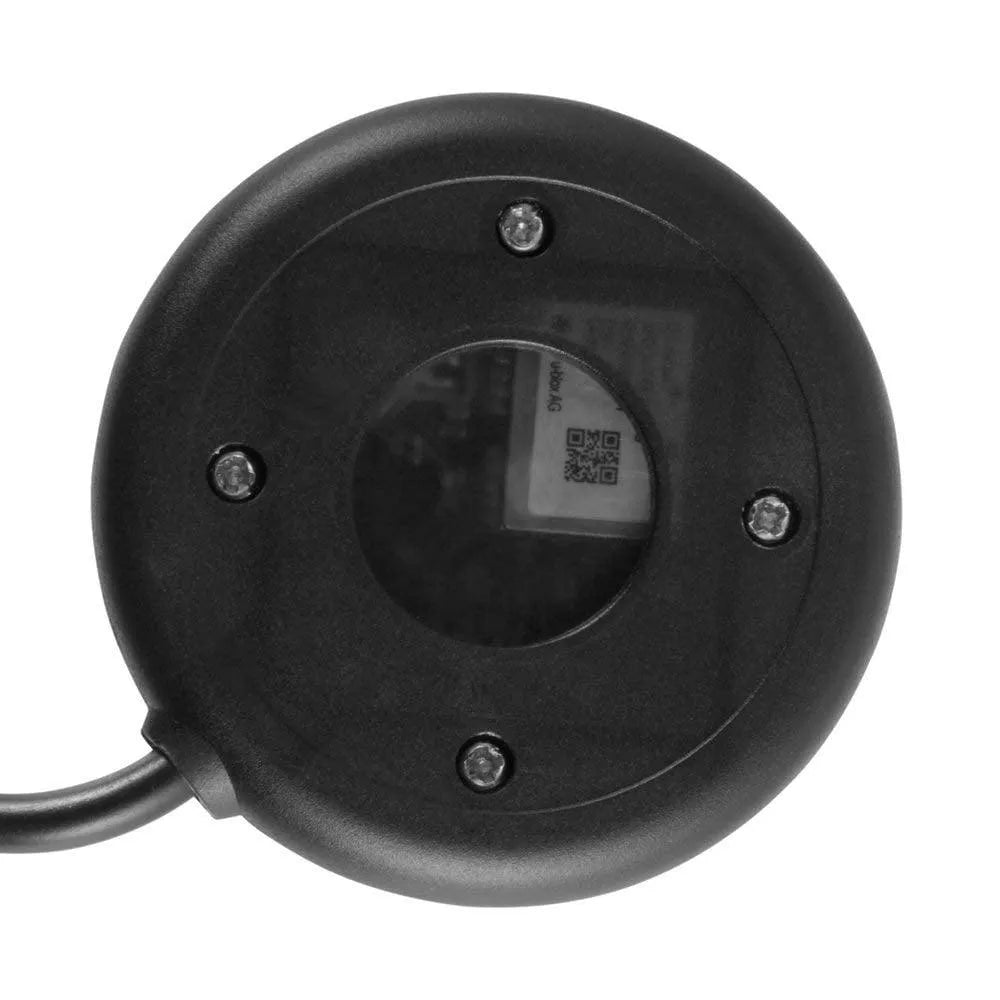

The NEO 7M GPS Module is a powerful and reliable GPS receiver module that provides high-precision navigation, ideal for drone applications. Built with the advanced u-blox NEO 7M chip, this GPS-module offers high sensitivity and fast satellite acquisition. Whether you are working with an APM2.8 GPS-Module, a Pixhawk GPS-module, or any compatible flight controller, the NEO 7M GPS-Module ensures robust tracking and seamless integration for drone projects.
With its fast hot start of 1 second, this high-precision GPS-module locks onto satellites quickly, making it perfect for quick-start projects and drone navigation. This GPS with compass combination, which includes the HMC5883L digital compass, enables precise directional navigation, making it suitable for a wide variety of GPS-enabled applications, including autonomous flight and position holding. The NEO 7M u-blox GPS module is compatible with various GPS-module systems, including the Pixhawk GPS module and APM GPS with compass configurations, ensuring flexibility for enthusiasts and professionals alike.
Features
-
High Sensitivity: Tracks signals at -161 dBm for improved GPS reception.
-
Fast Hot Start: Quick initialization with an average time of 1 second.
-
Pixhawk and APM Compatibility: Easily integrates with common drone systems.
-

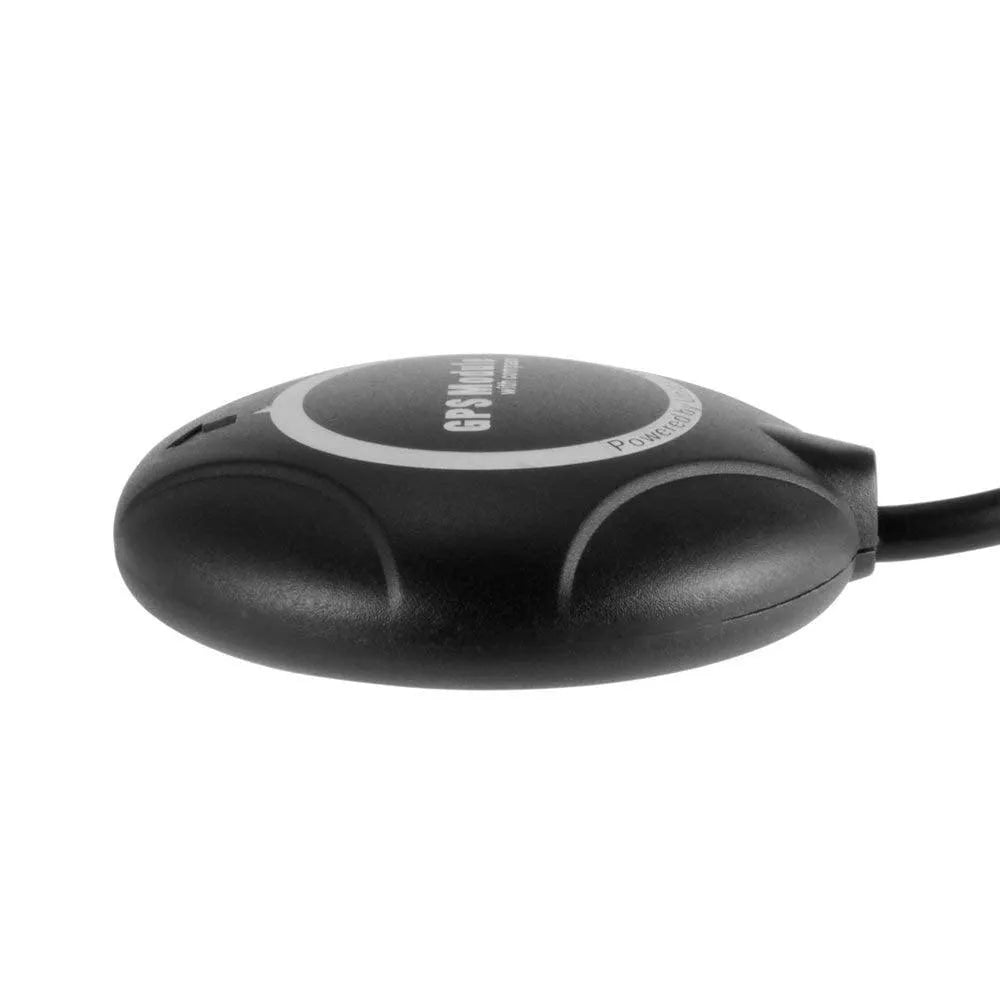

Compact and Lightweight: Simple to install on drones of all sizes.
-
Integrated Compass: The HMC5883L compass enhances directional precision.
Applications
The NEO 7M GPS-Module is versatile for use in multiple GPS navigation applications, from professional drone navigation to hobbyist drone GPS systems. It enables:
-
Autonomous Drone Flight: Supports stable hovering, precise waypoint navigation, and automated flight modes.
-
Return-to-Home Functions: Ensures safe returns to designated origin points when activated.
-
Surveying and Mapping: Perfect for environmental monitoring and data collection with GPS systems.
-
High-Altitude Use: Delivers stability and accuracy in elevated conditions.
Specifications: NEO 7M GPS Module
| Receiver Type: |
High-performance |
| Frequency: |
L1 [1575.42MHz] |
| Input Voltage: |
3.5 to 5.5V |
| Position Accuracy: |
2-2.5 meters |
| Output Rate: |
5Hz |
| Operating Temperature: |
-24°C to 84°C |
| Weight: |
26g |
Interfacing Circuit

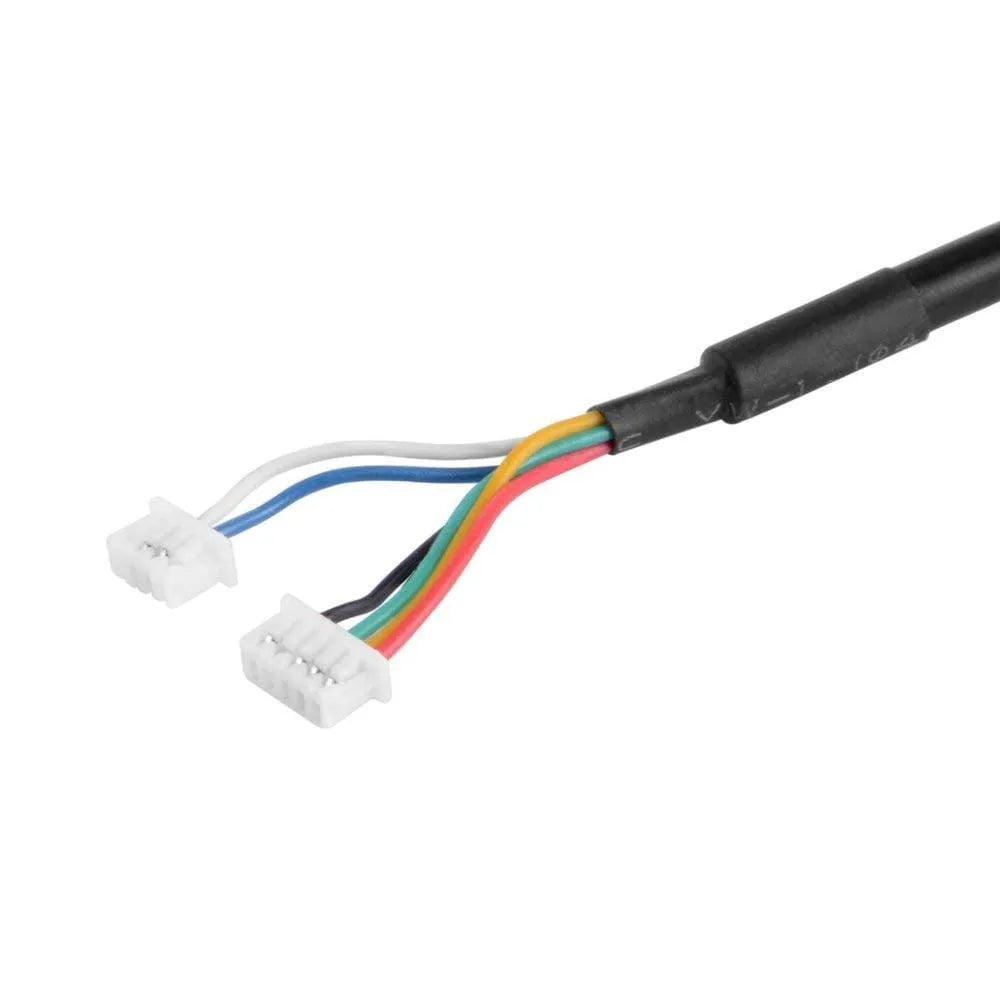

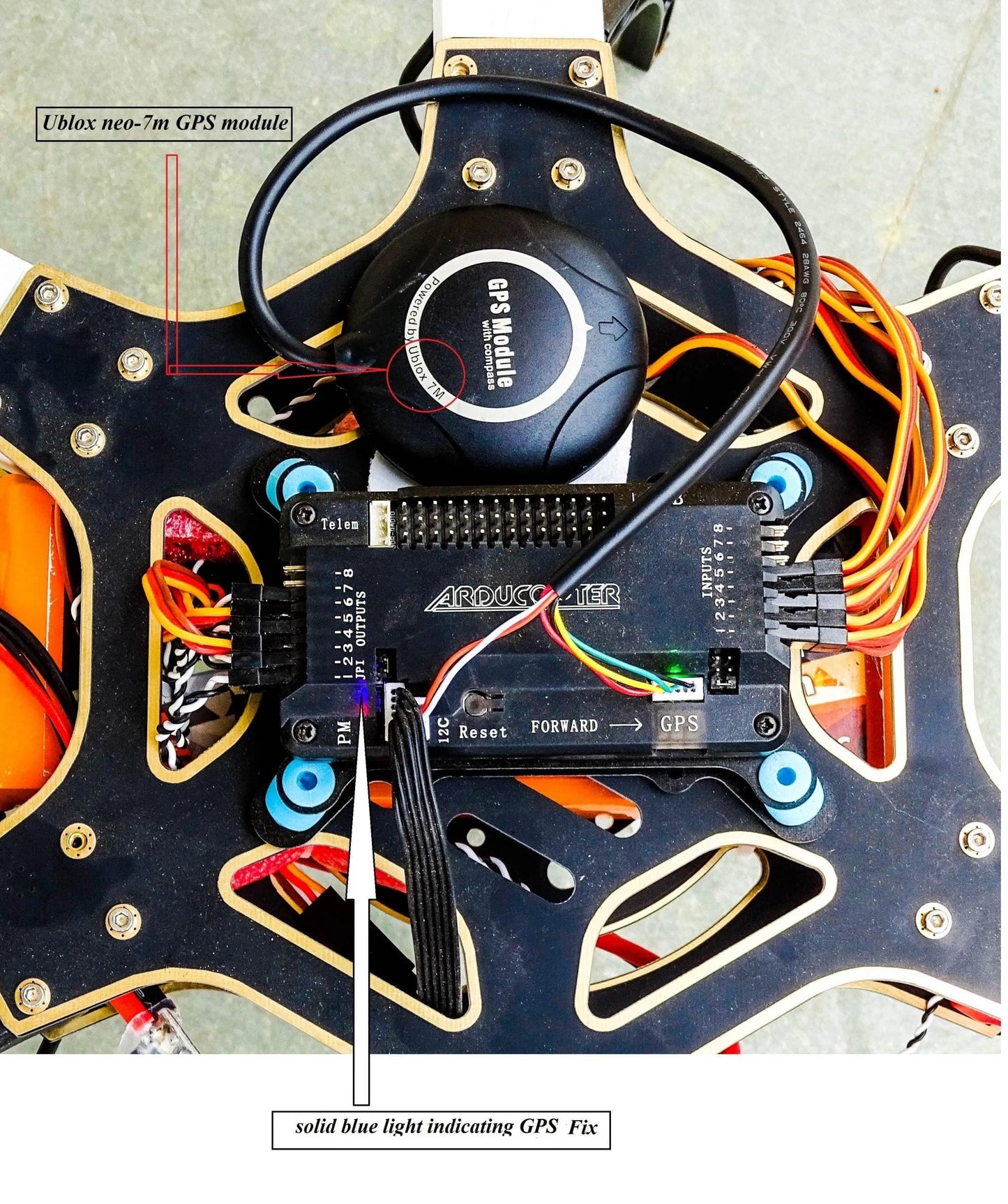

Connect the NEO 7M GPS receiver module to your flight controller using a 6-pin connector for GPS and a 4-pin for I2C compass. Proper baud rate settings on your flight controller ensure reliable data exchange with the GPS-module for drone.
How to Use
To use the NEO 7M GPS-module for drone navigation, connect it to a compatible flight controller, such as APM2.8 GPS-Module or Pixhawk GPS-module. Adjust settings to your controller for accurate position tracking.
Package Includes
Additional Links
For more GPS-modules for drones, see our Drone Parts Collection. For detailed specifications, refer to the Datasheet
Video Tutorial
Access our video tutorials for step-by-step guidance on integrating the NEO 7M GPS receiver module with your GPS module for drone systems.
