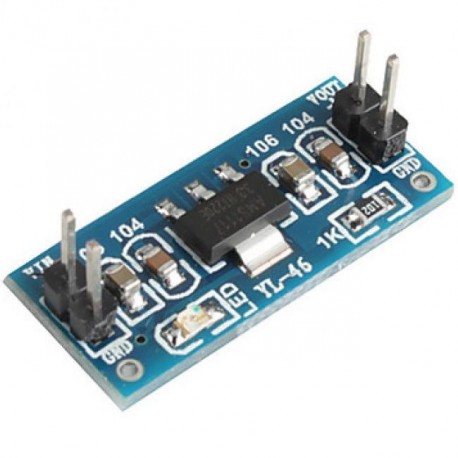

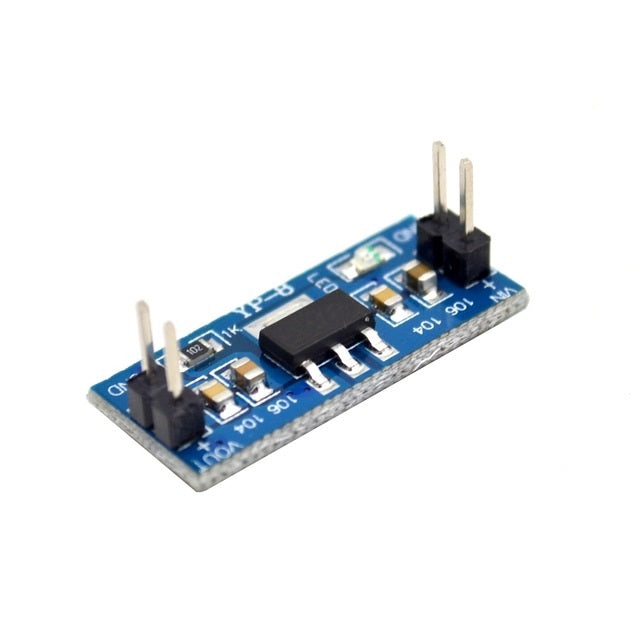

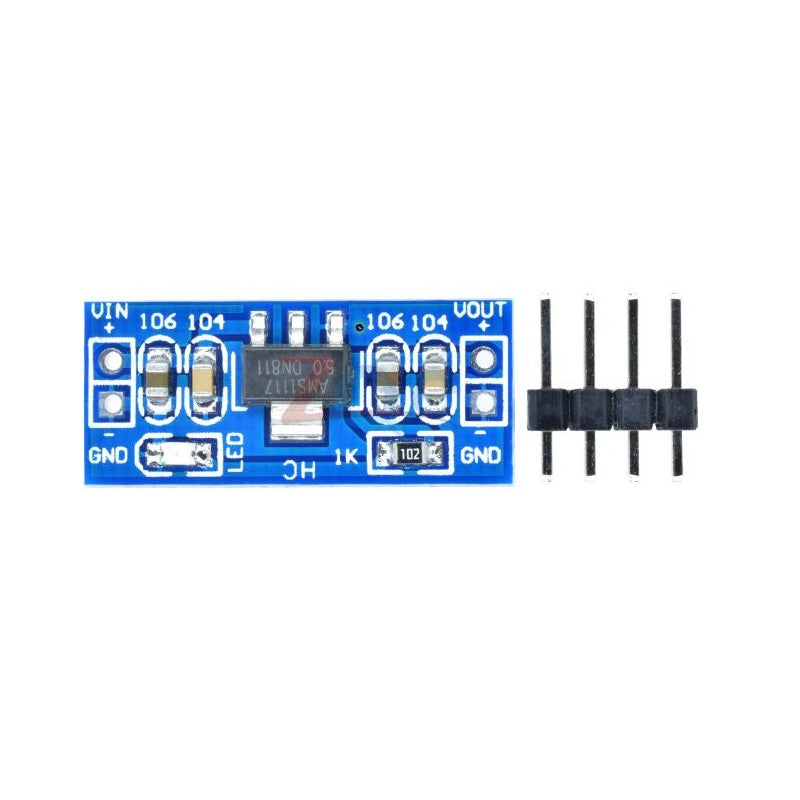

AMS1117 5V Step-Down Power Supply Module

AMS1117 5V Step-Down Power Supply Module is a compact and reliable voltage regulator, providing an efficient solution for converting higher DC input voltages to a stable 5V output. Commonly used in electronics projects, this module features buck converter lm2596, dc to dc step down converter, and power supply module capabilities, making it ideal for powering microcontrollers, sensors, and other devices requiring a stable 5V supply. Its compact size and breadboard-friendly design ensure ease of integration in various projects.

Key Features - AMS1117 5V Step-Down Power Supply Module

• Input voltage range: 6.5V – 12V
• Output voltage: 5V (+-0.05V error)
• Maximum load current: 800mA
• High efficiency and low dropout
• Onboard AMS1117 regulation chip
• Red LED power indicator
• Breadboard compatible, compact design
• Dual-panel layout for improved effectiveness

Applications

The AMS1117 5V Step-Down Power Supply Module is ideal for powering Arduino/Raspberry Pi boards in DIY projects and enabling reliable DC to DC conversion, similar to the lm2596 dc dc buck converter. It is a crucial power supply module in automation systems and educational projects, serving as an ams1117 5v regulator module in diverse scenarios requiring stable 5V power from higher DC inputs.

Technical Specifications

How to Use - AMS1117 5V Step-Down Power Supply Module

• Ensure load current does not exceed 800mA and input voltage is between 6.5V and 12V.
• Connect input voltage to the VIN pin of the module.
• Connect the ground (GND) of the module to the ground of the input power supply.
• Secure regulated 5V output from the VOUT pin for other components.
• Prevent damage by maintaining the specified voltage range and positioning in a ventilated area for optimal heat dissipation.

Package Includes

1 x AMS1117 5V Step-Down Power Supply Module (Unsoldered)
